Marine Stainless Steel Waterproof Touch Panel PCs – Advantages & Selection Guide

 Advantages of Stainless Steel Waterproof Touch Panel PCs for Marine Applications

1. Exceptional Corrosion Resistance

Marine environments are highly corrosive due to constant exposure to salt, humidity, and sea air.
Stainless steel panel PCs—especially those made of 316-grade stainless steel—provide superior resistance to saltwater and chemical corrosion, ensuring long-term reliability even under continuous exposure to moisture.

 2. IP66/IP69K Waterproof Design

Marine applications often require regular washing and exposure to splashing water or rain.
Our fully-sealed waterproof touch PCs are rated IP66 to IP69K, protecting all internal components from high-pressure water jets, salt fog, and oil ingress — perfect for control rooms, decks, and engine compartments.

 3. Wide Operating Temperature Range

Onboard environments can fluctuate drastically in temperature.
Industrial marine-grade touch PCs are designed for -20°C to +60°C operation (optional wider ranges available), ensuring stability whether installed in a cold ship bridge or a hot engine room.

 4. Anti-Vibration and Shock Resistance

Ships experience continuous vibration and mechanical shock.
Our marine stainless steel PCs adopt solid-state fanless designs and industrial mounting structures, minimizing moving parts and improving resistance to shock and vibration — reducing failure rates and maintenance costs.

 5. High-Brightness Sunlight Readable Display

Outdoor marine environments demand excellent screen visibility.
We offer high-brightness (up to 1000 nits) and optically bonded displays, ensuring clear readability under direct sunlight or strong ambient light conditions on the deck or navigation console.

 6. Fanless and Maintenance-Free Design

The fanless heat dissipation system keeps the device silent and reduces dust or moisture entry.
This design also extends the system lifespan, making it suitable for 24/7 continuous operation in marine environments.

 7. Flexible Mounting and Integration

Marine applications require flexible installation.
Our stainless steel touch all-in-one PCs support VESA mount, flush mount, and panel mount options, easily integrated into control consoles, navigation panels, or communication systems.

 8. Compatibility with Marine Systems

They can interface seamlessly with navigation, monitoring, and communication equipment through multiple ports — including RS232/485, Ethernet, HDMI, and USB, supporting Windows, Linux, and Android systems.

 marine-grade touch screen PC.jpg


Key Considerations When Selecting a Marine-Grade Stainless Steel Touch PC

1. Choose 316 Stainless Steel Over 304

Always confirm the enclosure material.
316 stainless steel contains molybdenum, offering higher resistance to saltwater corrosion — essential for marine use.
304 is sufficient for indoor control rooms but not for exposed deck installations.

 2. Verify IP Protection Rating

Ensure at least IP66, and for washdown or deck applications, IP69K is highly recommended.

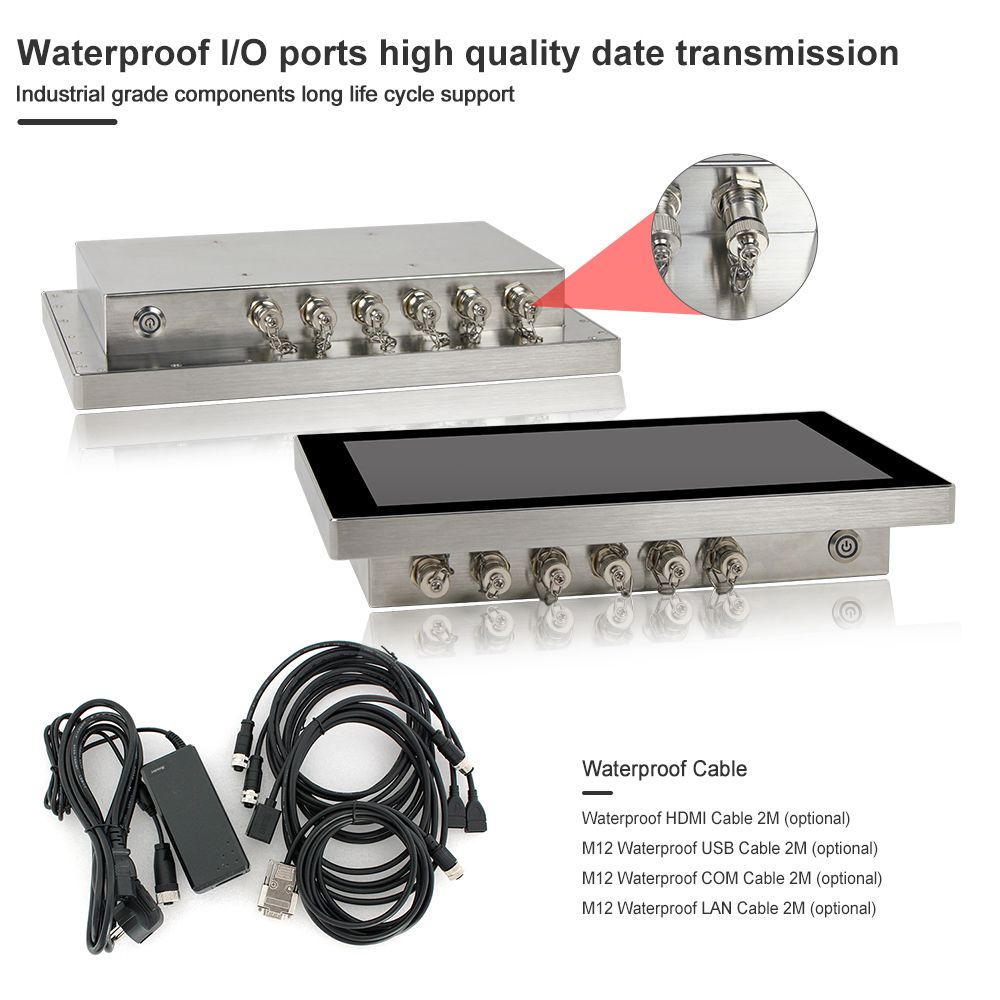

Also check that all connectors are sealed or waterproof M12 connectors to prevent moisture ingress through cables.

 3. Confirm Wide Voltage and Power Stability

Marine power systems can fluctuate.
Look for devices supporting 9–36V DC wide-range input with built-in surge and reverse polarity protection.

 4. Check Display Brightness and Anti-Reflection Features

For bridge or outdoor usage, a sunlight-readable high-brightness display (≥800 nits) with anti-glare or optical bonding is crucial for visibility and safety.

 5. Evaluate Vibration and Shock Ratings

Ensure compliance with IEC 60945 or MIL-STD-810G standards, which define shock and vibration resistance suitable for maritime and industrial environments.

 6. Confirm OS Compatibility and Remote Management

Choose systems that support Windows / Linux / Android for flexibility.
Remote monitoring and diagnostic capabilities are helpful for maintenance at sea.

 7. Supplier Experience and Certification

Work with manufacturers experienced in marine electronics and industrial computing, ideally certified under CE, FCC, RoHS, and IEC 60945 standards.



 A stainless steel waterproof touch panel PC designed for marine environments offers long-term reliability, safety, and operational efficiency on ships and offshore platforms.

By prioritizing 316 stainless steel, IP69K waterproofing, high-brightness displays, and shock-resistant design, you ensure optimal performance even under harsh sea conditions.
