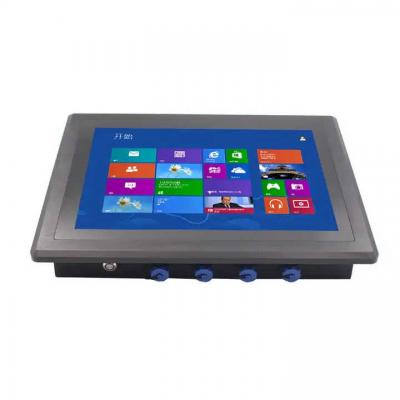

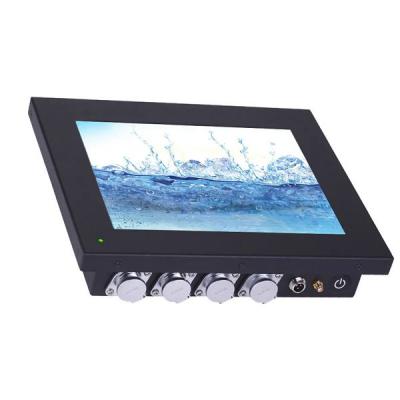

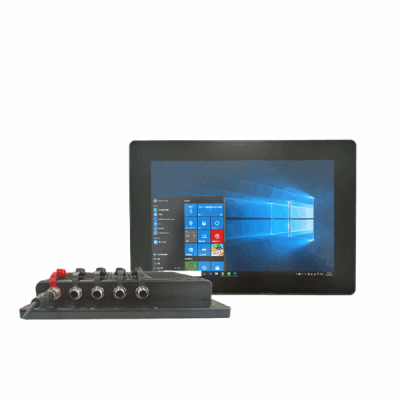

10.1 inch high brightness Full IP65 waterproof touch panel pc

10.1 inch high brightness Full IP65 waterproof touch panel pc

CPU：Intel Celeron J1900/J6417/J4105
RAM：4GB
Hard Drive：64G SSD
Panel size：10.1"
Brightness：1200nits
Touch Type：Capacitive
IP grade：Full IP65
Material: All-aluminum alloy

OVERVIEW

Advanvision’s full IP65/IP66/IP67/IP69K all aluminum high brightness waterproof panel PCs

are rugged and specialized type of industrial computer system that is designed to be resistant to water and harsh strong light environment elements. It typically consists of a wide-temperature industrial LCD panel and an industrial computer unit integrated into a rugged, all-aluminum sealed enclosure, while receiving power and connecting to other external devices through a fully waterproof interface such as the M12 waterproof interface. This type of panel PC is commonly used in industries and environments where exposure to water, moisture, and dust is a concern, such as industrial settings, outdoor applications, marine environments, food processing, and medical facilities. These panel PCs play a crucial role in environments where traditional computers would be at risk due to exposure to moisture, liquids, or contaminants. They ensure that critical operations can continue without interruption even in challenging conditions.

FEATURES

1, 10.1inch industrial grade LCD panels with 1280*800 or 1920*1200 resolution, wide viewing angle.

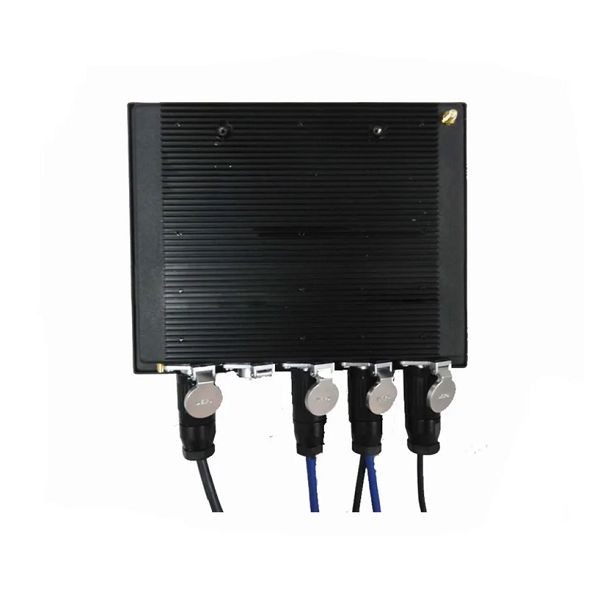

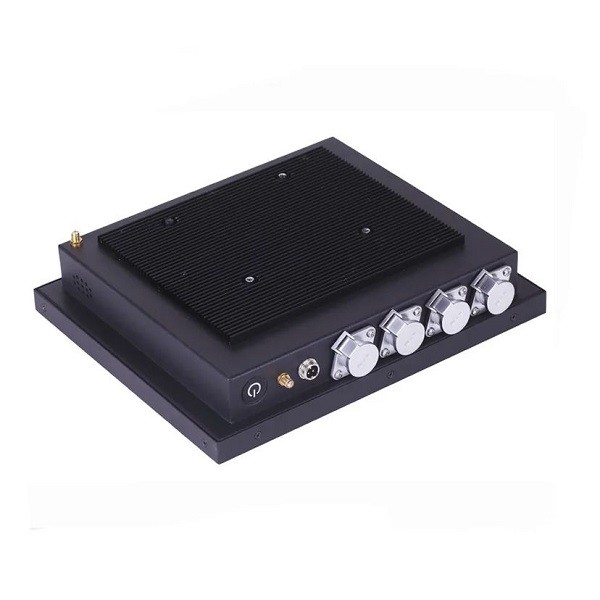

2, NEMA4/IP67/IP69K waterproof & dust-proof with Linko or M12 waterproof connectors for harsh environments.

3, High quality aluminum alloy enclosure, more resistant to corrosion, shock and vibration.

4, Adopting EETI solution + industrial-grade touch, or 10 points PCAP touch panel, high sensitive and fast-response optional.

5, DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.

6, Screen replaceable design for repair, easy uninstallation & installation to extend service life.

7, Full sealed and fanless design, full IP65 waterproof , 1000nits,sunlight readable.

8, Auto-dimming optional,Light Sensor, Dimmer Knob, or Cables.

9, Anti-glare glass optional, Surface Treatment, AG/AF/AR Optional.

10, Optical bonding optional, glass treatment for capacitive touch.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	10.1”
Native Resolution	1280800 with 19201200 optional
Aspect ratio	16:10
Brightness	1200 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	8ms
Viewing Angle	80°/80°/80°/80° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤25W
Enclosure
Material	Aluminium alloy
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	4.00kg(Approx.)
Gross Weight	5.00kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	Vesa mounting, panel mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
10.1 inch full IP65/69K high brightness panel pc with no touch, J1900, Aluminium enclosure/ADV101IPAPCHBNTJ1
10.1 inch full IP65/69K high brightness panel pc with resistive touch,J1900, Aluminium enclosure /ADV101IPAPCHBRTJ1
10.1 inch full IP65/69K high brightness panel pc with capacitive touch,J1900, Aluminium enclosure /ADV101IPAPCHBCTJ1
10.1 inch full IP65/69K high brightness panel pc with no touch, i3, Aluminium enclosure /ADV101IPAPCHBNT01I3
10.1 inch full IP65/69K high brightness panel pc with resistive touch,i3, Aluminium enclosure /ADV101IPAPCHBRTI3
10.1 inch full IP65/69K high brightness panel pc with capacitive touch,i3, Aluminium enclosure /ADV101IPAPCHBCTI3
10.1 inch full IP65/69K high brightness panel pc with no touch, i5/ADV101IPAPCHBNTI5
10.1 inch full IP65/69K high brightness panel pc with resistive touch,i5, Aluminium enclosure /ADV101IPAPCHBRTI5
10.1 inch full IP65/69K high brightness panel pc with capacitive touch,i5, Aluminium enclosure /ADV101IPAPCHBCTI5
10.1 inch full IP65/69K high brightness panel pc with no touch, i7, Aluminium enclosure /ADV101IPAPCHBNTI7
10.1 inch full IP65/69K high brightness panel pc with resistive touch,i7, Aluminium enclosure /ADV101IPAPCHBRTI7
10.1 inch full IP65/69K high brightness panel pc with capacitive touch,i7, Aluminium enclosure /ADV101IPAPCHBCTI7
