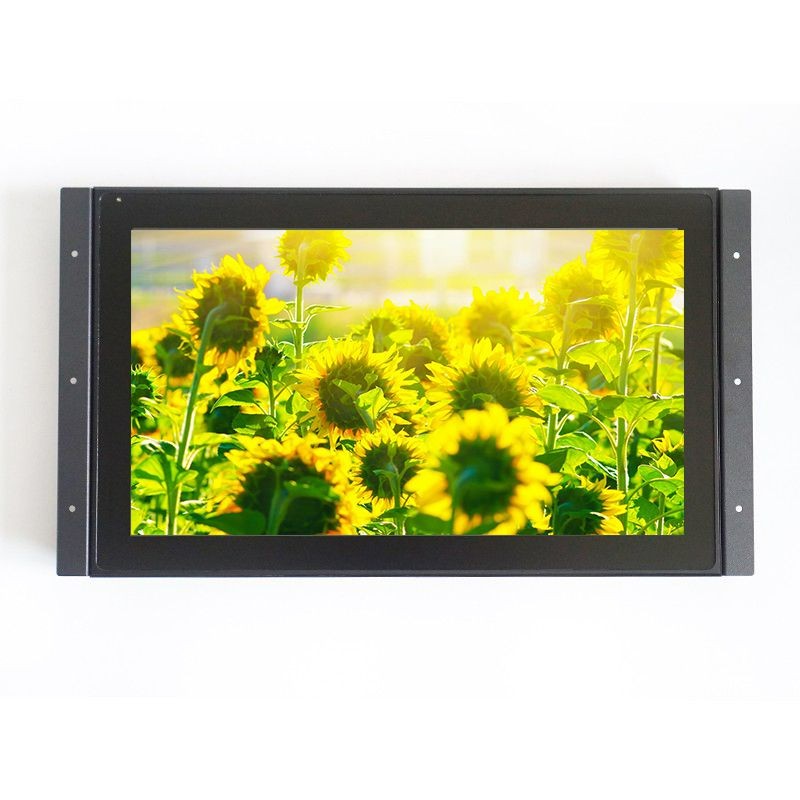

11.6 inch high brightness open frame panel pc

CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Panel size:11.6"
Brightness:350nits
Touch Type:Capacitive
IP grade:No IP Rating

OVERVIEW

Advanvision’s industrial sunlight readable high brightness panel PCs are rugged and reliable panel PC solution with brightness up to 1500 nits dedicating to sunlight industrial applications. We provide them with different appearance and structure for customer choose, such as open frame, chassis mount, panel mount, rack mount, flush mount. The configuration with processors, main memories, drives and interfaces takes place as required, precisely tailored to the area of application of the sunlight readable touch panel PCs. Our industrial sunlight readable/high brightness all in one touch computers come with either a galvanized sheet/Aluminum or Stainless-Steel enclosure. Extended temperature and optical bonding options available. Even if it is equipped with a high brightness LCD screen visible in the sunlight, a good heat dissipation design can also ensure that our industrial high brightness panel PCs works stably in harsh environments, which is ideal for process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.





FEATURES

1, 11.6inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch optional.

3, Support 7/24 operation in harsh environments.

4, High performance processor, graphics, memory and power.
5,1000-1500nits sunlight readable LCD with optical bonding optional for semi-outdoor/outdoor use.

6, Metal chassis and casing with good heating-dissipation under high-temperature conditions.

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, Open frame, chassis, chassis mount, panel mount, rack mount, flush mount optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

11.6”

Native Resolution

1920*1080

Aspect ratio

16:9

Brightness

350 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

800:1

Response Time

25ms

Viewing Angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤20W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

3.2kg(Approx.)

Gross Weight

3.8kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

VESA mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


11.6 inch sunlight readable high brightness chassis panel pc with no touch, J1900/ADV116CPCHBNTJ1

11.6 inch sunlight readable high brightness chassis panel pc with tempered glass,1900 /ADV116CPCHBTGJ1

11.6 inch sunlight readable high brightness chassis panel pc with resistive touch,J1900/ADV116CPCHBRTJ1

11.6 inch sunlight readable high brightness chassis panel pc with capacitive touch,J1900/ADV116CPCHBCTJ1

11.6 inch sunlight readable high brightness chassis panel pc with no touch, i3/ADV116CPCHBNT01I3

11.6 inch sunlight readable high brightness chassis panel pc with tempered glass,i3 /ADV116CPCHBTGI3

11.6 inch sunlight readable high brightness chassis panel pc with resistive touch,i3/ADV116CPCHBRTI3

11.6 inch sunlight readable high brightness chassis panel pc with capacitive touch,i3/ADV116CPCHBCTI3

11.6 inch sunlight readable high brightness chassis panel pc with no touch, i5/ADV116CPCHBNTI5

11.6 inch sunlight readable high brightness chassis panel pc with tempered glass,i5/ADV116CPCHBTGI5

11.6 inch sunlight readable high brightness chassis panel pc with resistive touch,i5/ADV116CPCHBRTI5

11.6 inch sunlight readable high brightness chassis panel pc with capacitive touch,i5/ADV116CPCHBCTI5

11.6 inch sunlight readable high brightness chassis panel pc with no touch, i7/ADV116CPCHBNTI7

11.6 inch sunlight readable high brightness chassis panel pc with tempered glass,i7/ADV116CPCHBTGI7

11.6 inch sunlight readable high brightness chassis panel pc with resistive touch,i7/ADV116CPCHBRTI7

11.6 inch sunlight readable high brightness chassis panel pc with capacitive touch,i7/ADV116CPCHBCTI7
