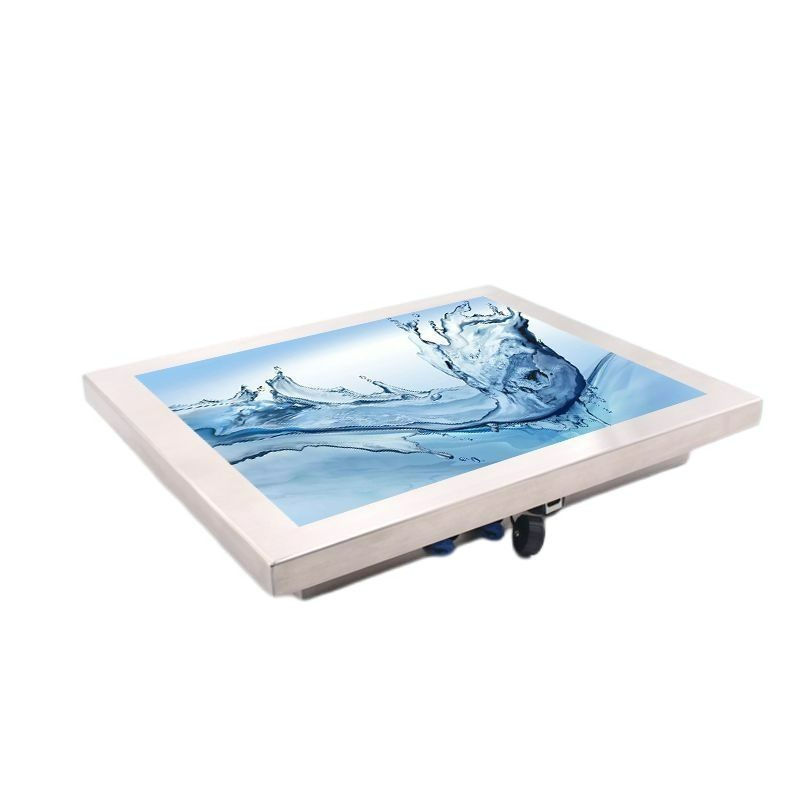

11.6 inch stainless steel full IP67 monitor

Panel size：11.6"
Resolution：1920*1200
Surface Treatment：PCAP touch
Interface：HDMI/DVI/VGA
Brightness：350nits
Touch Type：Capacitive
IP grade：IP65 Front Optional

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Support wall mounting,desk stand mouting etc.

5. 1000-1500 nits sunlight readable optional.

6. Customized integrated metal housing, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. VGA,HDMI,DVI input.

9. External 100/240 auto-switch AC power adapter.

SPECIFICATION

LCD Panel
Panel size	11.6”
Native resolution	1920*1080
Aspect ratio	16:9
Active Area(mm)	256.32(W) x 144.18(H)
Brightness	350 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	800:1
Response Time	25ms
Viewing angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch,IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	1×HDMI
Audio in/out,DP	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position,language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10 ,Linux, Mac OS X,Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Material	304 or 316 stainless steel
Color/Dimension	Silver / Dimensions can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	2.5kg(Approx.)
Gross weight	3.2kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
11.6 inch stainless steel full IP65/66 chassis LCD monitor no touch/ADV116CLNTIP01
11.6 inch stainless steel full IP65/66 chassis LCD monitor with tempered glass /ADV116CLTGIP01
11.6 inch stainless steel full IP65/66 chassis LCD monitor with resistive touch/ADV116CLRTIP01
11.6 inch stainless steel full IP65/66 chassis LCD monitor with capacitive touch/ADV116CLCTIP01
