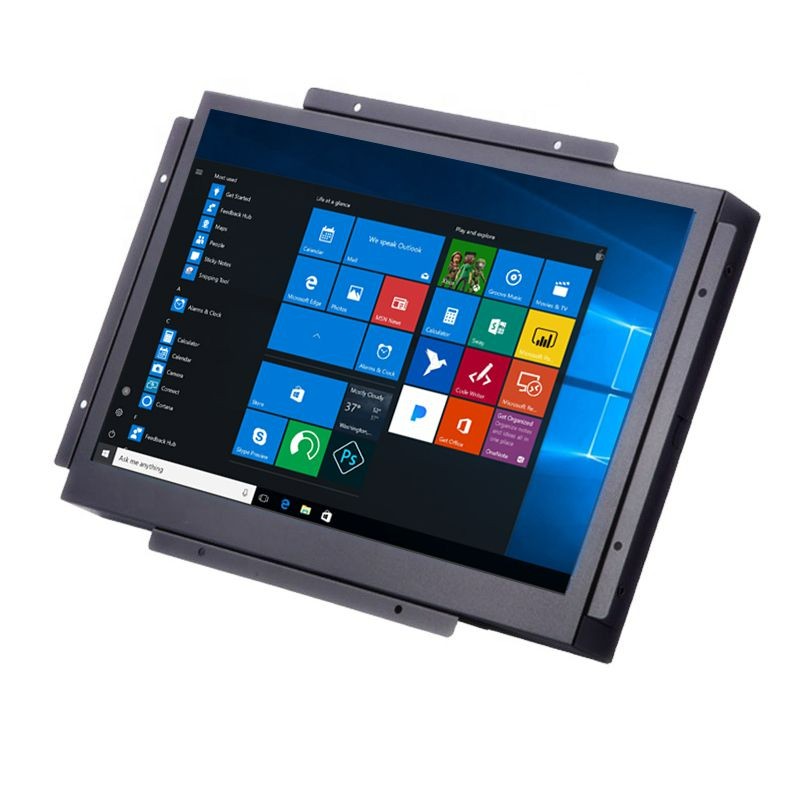

12.1 inch industrial touch screen pc
OVERVIEW
Advanvision industrial chassis mount panel PCs is a cost-effective and budget-priced all in one industrial all in one computer series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and Self-service kiosk applications. The rugged all-steel housing provides the durability required in demanding industrial environments. The flexible mounting brackets around the metal chassis allow them to be flexibly and easily embedded in the interior of various equipment and machines, and keep the machine and equipment as a whole simple and beautiful. Modularize mechanical design provides flexible product configuration and easy maintenance. We provide the chassis mount computers with industrial/commercial-grade LCD panels optional, and also with PCAP touch screen and resistive touch, IR touch, Saw touch optional. The front IP65 design is very realistic for them, while we can also provide them with 1000nis to 1500nits high brightness LCD panels so that they can be used in outdoor or semi-outdoor environments.
FEATURES
1, Rugged all-steel enclosure with flexible mounting brackets around the metal chassis.
2,Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional
3, LED backlight energy efficient, low power consumption LCD panel inside.
3, High environmental performance and reliability.
5, Anti-reflective protective glass optional.
6, Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F).
7, Phoenix terminal 9-36V wide voltage input optional.
8, 5 Wired Resistive touch/ IR/ PCAP Touch Screen/SAW (USB Default/ RS232 per request controller).
9, Optional High Brightness 1000nits-1500nits F or Semi outdoor application.
10, High performance motherboard, 7x24 continuous operation.
SPECIFICATION
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
CPU Optional | Intel® Celeron 3825U,J4105 ,Core i3/i5/i7 |
Chipset | Intel NM10 Express |
Memory | 4G DDR3 (2G, 8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G, 128GB, 256GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI 4G Optional |
I/O Interface | 2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485) |
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD Panel | |
Panel size | 12.1” |
Native Resolution | 800*600 with 1024*768 optional |
Aspect ratio | 4:3 |
Brightness | 300 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 300:1 |
Response Time | 10ms |
Viewing Angle | 80°/80°/60°/70° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch Response Time | 2ms |
Working Life | >50 million times |
Touch Options | (5 wires restive touch,IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working Voltage | DC 12V |
Power Consumption | ≤17W |
Enclosure | |
Material | High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA Mounting | 75×75mm/100×100mm |
IP Grade | No |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative Humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net Weight | 4kg(Approx.) |
Gross Weight | 4.8kg(Approx.) |
Accessories | Power adapter, embedded screws, user manual, warranty card |
Other | |
Mounting | chassis mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
12.1 inch chassis mount panel pc with no touch, J1900/ADV121CMPCNTJ1 | |
12.1 inch chassis mount panel pc with tempered glass,1900 /ADV121CMPCTGJ1 | |
12.1 inch chassis mount panel pc with resistive touch,J1900/ADV121CMPCRTJ1 | |
12.1 inch chassis mount panel pc with capacitive touch,J1900/ADV121CMPCCTJ1 | |
12.1 inch chassis mount panel pc with no touch, i3/ADV121CMPCNT01I3 | |
12.1 inch chassis mount panel pc with tempered glass,i3 /ADV121CMPCTGI3 | |
12.1 inch chassis mount panel pc with resistive touch,i3/ADV121CMPCRTI3 | |
12.1 inch chassis mount panel pc with capacitive touch,i3/ADV121CMPCCTI3 | |
12.1 inch chassis mount panel pc with no touch, i5/ADV121CMPCNTI5 | |
12.1 inch chassis mount panel pc with tempered glass,i5/ADV121CMPCTGI5 | |
12.1 inch chassis mount panel pc with resistive touch,i5/ADV121CMPCRTI5 | |
12.1 inch chassis mount panel pc with capacitive touch,i5/ADV121CMPCCTI5 | |
12.1 inch chassis mount panel pc with no touch, i7/ADV121CMPCNTI7 | |
12.1 inch chassis mount panel pc with tempered glass,i7/ADV121CMPCTGI7 | |
12.1 inch chassis mount panel pc with resistive touch,i7/ADV121CMPCRTI7 | |
12.1 inch chassis mount panel pc with capacitive touch,i7/ADV121CMPCCTI7 | |
