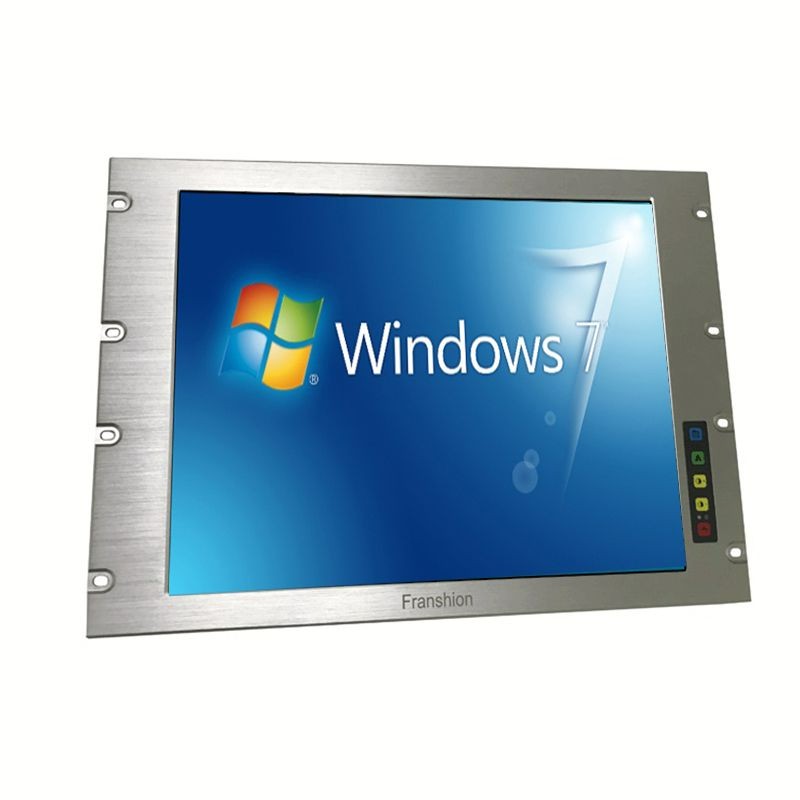

12.1 inch rack mount lcd monitor

Panel size:12.1"
Resolution:800*600 with 1024*768 optional
Surface Treatment:PCAP touch
Interface:HDMI/DVI/VGA
Brightness:300nits
Touch Type:Capacitive
IP grade:IP65 Front

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Easy-to-install embedded/panel mounting with clamps.

5. 1000-1500 nits sunlight readable optional.

6. Customized aluminum front bezel,IP65/NEMA 4X front water proof.

7. Ture flat surface, easy to clean.

8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9. VGA,HDMI,DVI input.

10. External 100/240 auto-switch AC power adapter


SPECIFICATION

LCD Panel

Panel size

12.1”

Native   resolution

800*600 with 1024*768 optional

Aspect ratio

4:3

Active Area(mm)

246.0(H) x 184.5(V)

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

300:1

Response Time

10ms

Viewing angle

80°/80°/60°/70° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB   (RS232   optional)

Touch response   time

2ms

Working   Life

>50 million   times

Touch options

(5 wires restive touch,IR touch optional)

Signal Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out,DP

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.

Support   languages

English, French,   Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP , Windows /7/8/10 ,Linux, Mac OS X,Android ect.

Power Supply

External Power   Supply

AC 100 - 240V , 50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

High strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

2.6kg(Approx.)

Gross weight

3.5kg(Approx.)

Accessories

Power adapter,   power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws

Other


Mounting

Rack mount

wall mounting brackets  (optional)

desk stand   holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


12.1 inch rack mount LCD monitor no touch/ADV121RMNT01

12.1 inch rack mount LCD monitor with tempered glass /ADV121RMTG01

12.1 inch rack mount LCD monitor with resistive touch/ADV121RMRT01

12.1 inch rack mount LCD monitor with capacitive touch/ADV121RMCT01

12.1 inch rack mount LCD monitor with IR touch/ADV121RMIT01
