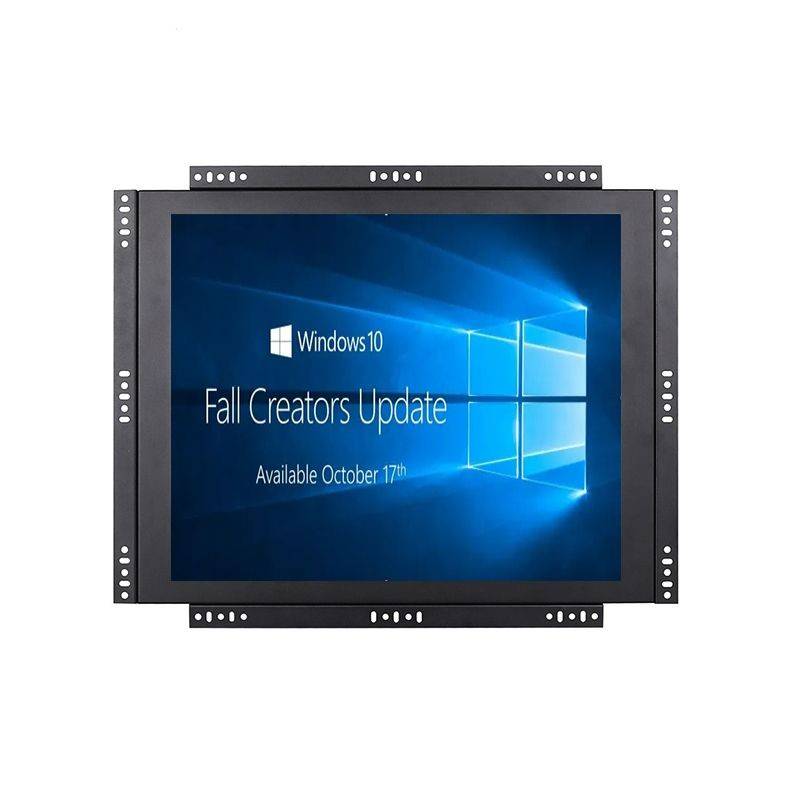

17 inch chassis mount lcd monitor

Panel size:17"
Resolution:1280*1024
Surface Treatment:PCAP touch
Interface:HDMI/DVI/VGA
Brightness:250nits
Touch Type:Capacitive
IP grade:No IP Rating

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Support wall mounting,embedded mounting,desk stand mouting etc.

5. 1000-1500 nits sunlight readable optional.

6. Customized integrated metal housing, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. VGA,HDMI,DVI input, DP optional.

9. External 100/240 auto-switch AC power adapter.


SPECIFICATION

LCD Panel

Panel size

17”

Native   resolution

1280*1024

Aspect ratio

4:3

Active Area(mm)

337.920(H) x   270.336(V)

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

1000:1

Response Time

5ms

Viewing angle

85°/85°/80°/80°   (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project   Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB     (RS232 optional)

Touch response   time

2ms

Working   Life

>50 million   times

Touch options

(5 wires restive   touch,IR touch optional)

Signal Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out,DP

optional

OSD

OSD control

Brightness,   contrast ratio, auto adjustment, H/V position,  language select etc.

Support   languages

English, French,   Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP ,   Windows /7/8/10 ,Linux, Mac OS X,Android ect.

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working voltage

DC 12V

Power   consumption

≤20W

Enclosure

Material

High strength   cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating

Operating   Environment


Temperature   Range

operating: -20   to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10%   to 80% ,  storage :5% to 90%

Packing Details


Net weight

5.8kg(Approx.)

Gross weight

7kg(Approx.)

Accessories

Power adapter,   power cord, USB touch cable, HDMI/ VGA cable, embedded screws

Other


Mounting

embedded   mounting

wall mounting   brackets  (optional)

desk stand   holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


17 inch chassis   mount LCD monitor no touch/ADV17CMNT01

17 inch chassis   mount LCD monitor with tempered glass /ADV17CMTG01

17 inch chassis   mount LCD monitor with resistive touch/ADV17CMRT01

17 inch chassis   mount LCD monitor with capacitive touch/ADV17CMCT01

17 inch chassis   mount LCD monitor with IR touch/ADV17CMIT01
