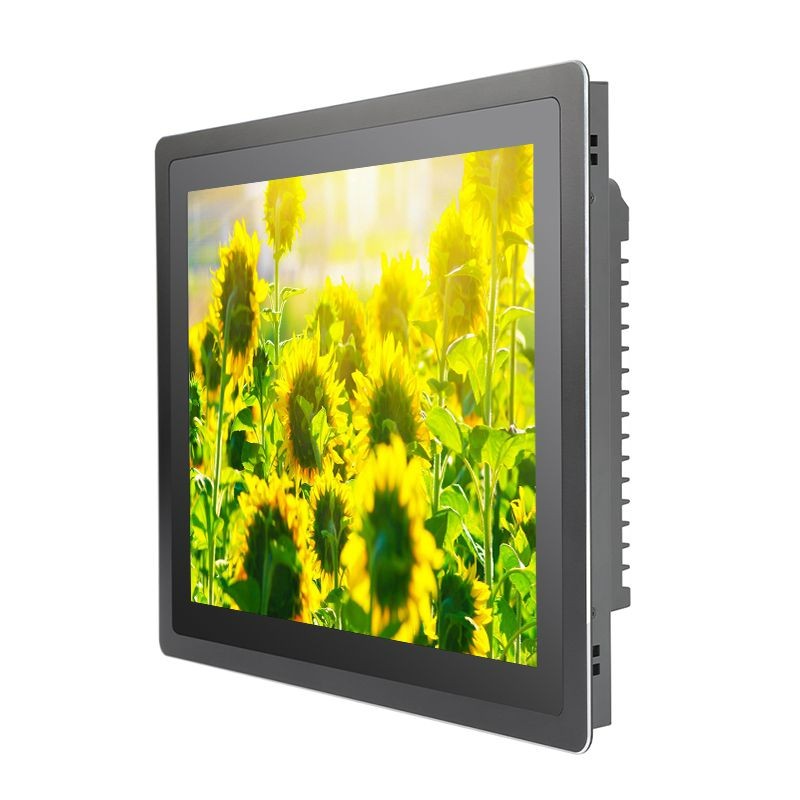

17 inch high brightness sunlight brightness panel pc

Panel size：17"
CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Brightness：800nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision’s industrial sunlight readable high brightness panel PCs are rugged and reliable panel PC solution with brightness up to 1500 nits dedicating to sunlight industrial applications. We provide them with different appearance and structure for customer choose, such as open frame, chassis mount, panel mount, rack mount, flush mount. The configuration with processors, main memories, drives and interfaces takes place as required, precisely tailored to the area of application of the sunlight readable touch panel PCs. Our industrial sunlight readable/high brightness all in one touch computers come with either a galvanized sheet/Aluminum or Stainless-Steel enclosure. Extended temperature and optical bonding options available. Even if it is equipped with a high brightness LCD screen visible in the sunlight, a good heat dissipation design can also ensure that our industrial high brightness panel PCs works stably in harsh environments, which is ideal for process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.

FEATURES

1, 17inch industrial grade LCD panels with 1280*1024 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch optional.

3, Support 7/24 operation in harsh environments.

4, High performance processor, graphics, memory and power.
5,1000-1500nits sunlight readable LCD with optical bonding optional for semi-outdoor/outdoor use.

6, Metal chassis and casing with good heating-dissipation under high-temperature conditions.

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, Open frame, chassis, chassis mount, panel mount, rack mount, flush mount optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	17”
Native resolution	1280*1024
Aspect ratio	4:3
Active Area(mm)	337.920(H) x 270.336(V)
Brightness	1000 nits to 1500 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	5ms
Viewing angle	85°/85°/80°/80° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤30W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.1kg(Approx.)
Gross Weight	2.5kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
17 inch sunlight readable high brightness chassis panel pc with no touch, J1900/ADV17CPCHBNTJ1
17 inch sunlight readable high brightness chassis panel pc with tempered glass,1900 /ADV17CPCHBTGJ1
17 inch sunlight readable high brightness chassis panel pc with resistive touch,J1900/ADV17CPCHBRTJ1
17 inch sunlight readable high brightness chassis panel pc with capacitive touch,J1900/ADV17CPCHBCTJ1
17 inch sunlight readable high brightness chassis panel pc with no touch, i3/ADV17CPCHBNT01I3
17 inch sunlight readable high brightness chassis panel pc with tempered glass,i3 /ADV17CPCTGI3
17 inch sunlight readable high brightness chassis panel pc with resistive touch,i3/ADV17CPCHBRTI3
17 inch sunlight readable high brightness chassis panel pc with capacitive touch,i3/ADV17CPCHBCTI3
17 inch sunlight readable high brightness chassis panel pc with no touch, i5/ADV17CPCHBNTI5
17 inch sunlight readable high brightness chassis panel pc with tempered glass,i5/ADV17CPCHBTGI5
17 inch sunlight readable high brightness chassis panel pc with resistive touch,i5/ADV17CPCHBRTI5
17 inch sunlight readable high brightness chassis panel pc with capacitive touch,i5/ADV17CPCHBCTI5
17 inch sunlight readable high brightness chassis panel pc with no touch, i7/ADV17CPCHBNTI7
17 inch sunlight readable high brightness chassis panel pc with tempered glass,i7/ADV17CPCHBTGI7
17 inch sunlight readable high brightness chassis panel pc with resistive touch,i7/ADV17CPCHBRTI7
17 inch sunlight readable high brightness chassis panel pc with capacitive touch,i7/ADV17CPCHBCTI7
