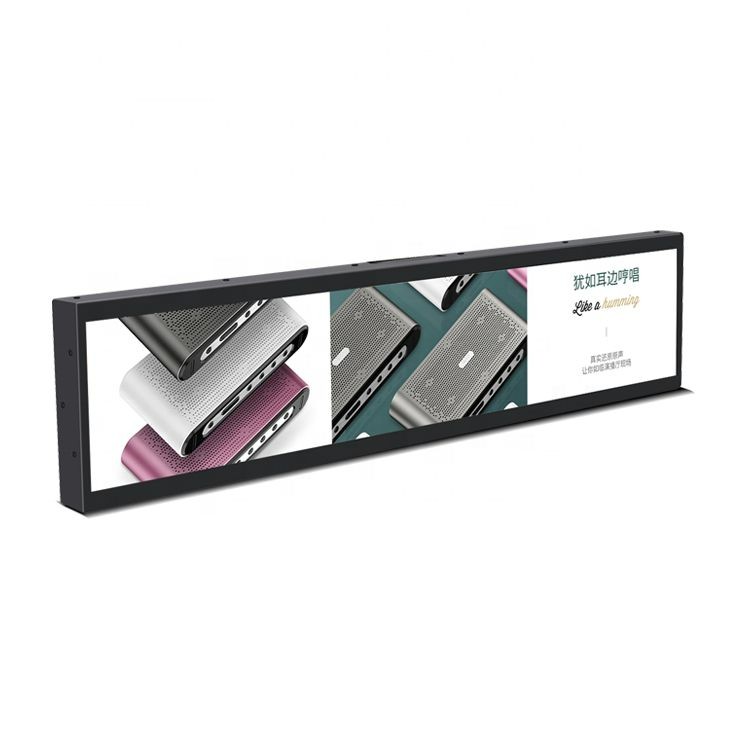

25.3 inch stretched LCD display

Panel size: 25.3"
Brightness: 500nits
Resolution:1920*540
IP grade: No IP Rating
Function: advertisement player
Application: Indoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. The body is made of cold-rolled steel, car paint process, anti-rust and anti-static, beautiful and generous.

2. Using LG, BOE brands of original LCD panel, the height can be cut and customized on demand.

3. 4-6 mm toughened glass in the surface for vandal proof.

4. Monitor/stand-alone / android / version optional.

5. High performance motherboard, 7*24 continuous operation.

6. Can display video,pictures,text and other rich content at the same time, support multimedia player, split screen function.

7. High brightness optional (1000~3000nit).

8. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

9. Rich size available,support OEM / ODM.

SPECIFICATION

LCD Panel
Panel size	25.3”
Original panel size	Cut by 27”
Native resolution	1920*540
Aspect ratio	32:9
Active Area(mm)	576(H) x 162(V)
Brightness	500 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	5ms
Viewing angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Optional version
LCD Monitor Version	Professional design for 7*24 hours operation HDMI/VGA/DVI Input Support connecting with media player box/PC by HDMI input
Standalone Digital Signage Version	Support picture,music and video to 1080P Support SD/HDMI/USB inputs Support SD card plug and play automatically Usb updated function:update documents by usb drive to sd card Support connencting with media player box/PC by HDMI input Playlist function:auto play the designated file at the specific date Timer function:5 groups timers to turn on/off at the designated time Slideshow functions to play music and pictures at the same time Portrait/landscape display mode Scrolling text with different color and effect
Android Network Display Version	Andriod 5.1/7.1 operating system optional RK3188/RK3288/RK3399 optional IGB/2GB/4GB RAM(DDR3)optional 8GB/16GB/32GB/64GB flash optional 3G(optional)/WLAN/WIFI network connection 802.11B/G/N Internal Wifi Portrait/landscape display mode 1080P display output Remote management software (CMS)optional
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Material	Aluminium alloy face frame,high strength cold rolled steel back case
Color/Dimension	Black, white, Silver , color and dimensions are can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating,IP65 front optional
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	5.8kg(Approx.)
Gross weight	7kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
25.3 inch stretched lcd monitor/ADV253SDMN101
25.3 inch stretched lcd standalone digital signage/ADV253SDSN101
25.3 inch stretches lcd android network display/ADV253SDAN101
