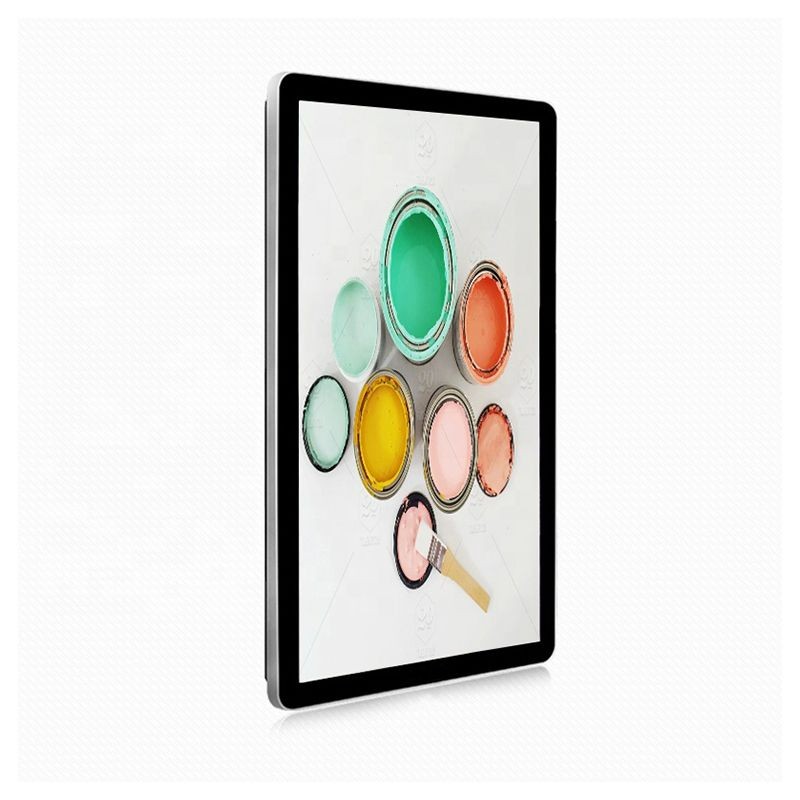

32 inch wall mount advisement player

Panel size: 32"
Brightness: 300nits
IP grade: No IP Rating
Function: advertisement player
Application: Indoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. Aluminum frame up to only 50mm thickness,with cold roll steel sheet back cover .

2. 4-6 mm toughened glass in the surface for vandal proof.

3. Stand-alone / android / windows version optional.

4. High performance motherboard, 7*24 continuous operation.

5. Support multiple split screen remote operation (option:android/windows/stand-alone).

6. High brightness optional (1500~3000nit).

7. FHD, ultra high definition UHD, 4K different resolution are optional, grade A, LED Backlight, different screen diagonal.

8. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

9. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

10.Rich size available: 10.1"to 86", support OEM / ODM.


SPECIFICATION

LCD Panel

Panel size

32”

Native   resolution

1920*1080

Aspect ratio

16:9

Active Area(mm)

698.4 (H) x   392.85 (V)

Brightness

400 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

1200:1

Response Time

5ms

Viewing angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Optional version

Standalone Digital Signage Version

Support picture,music and video to 1080P

Support SD/HDMI/USB inputs

Support SD card plug and play automatically

Usb updated function:update documents by usb drive to sd card

Support connencting with media player box/PC by HDMI input

Playlist function:auto play the designated file at the specific date

Timer function:5 groups timers to turn on/off at the designated time

Slideshow functions to play music and pictures at the same time

Portrait/landscape display mode

Scrolling text with different color and effect



Android Network Display   Version

Andriod 5.1/7.1 operating system optional

RK3188/RK3288/RK3399   optional

IGB/2GB/4GB RAM(DDR3)optional

8GB/16GB/32GB/64GB flash optional

3G(optional)/WLAN/WIFI network connection

802.11B/G/N Internal Wifi

Portrait/landscape display mode

1080P display output

Remote management software (CMS)optional

All-in-one Windows Display   Version

CPU: Intel  Celeron Precessor J1900/Intel Core processor I3/I5/I7

Chipset:1037U+NM70/Haswell-U

System memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD

Input connectors: VGA/HDMI/USB/RJ45/Audio

Operating system: Windows 7/8/10,Linux

Preinstall Intel OS service optional

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

Aluminium   alloy face frame,high   strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating,IP65   front optional

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

23kg(Approx.)

Gross weight

31kg(Approx.)

Accessories

Power adapter,   power cord, USB touch cable, HDMI/ VGA cable

Other


Mounting

VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


32 inch close frame wall mount standalone digital signage/ADV32CWSADTG01

32 inch close frame wall mount android network display/ADV32CWAADTG0X

32 inch close frame wall mount all-in-one windows display /ADV32CWWADTG0X

32 inch iphone design wall mount standalone digital signage/ADV32IWSADTG01

32 inch iphone design wall mount android network display/ADV32IWAADTG0X

32 inch iphone design wall mount all-in-one windows display /ADV32IWWADTG0X
