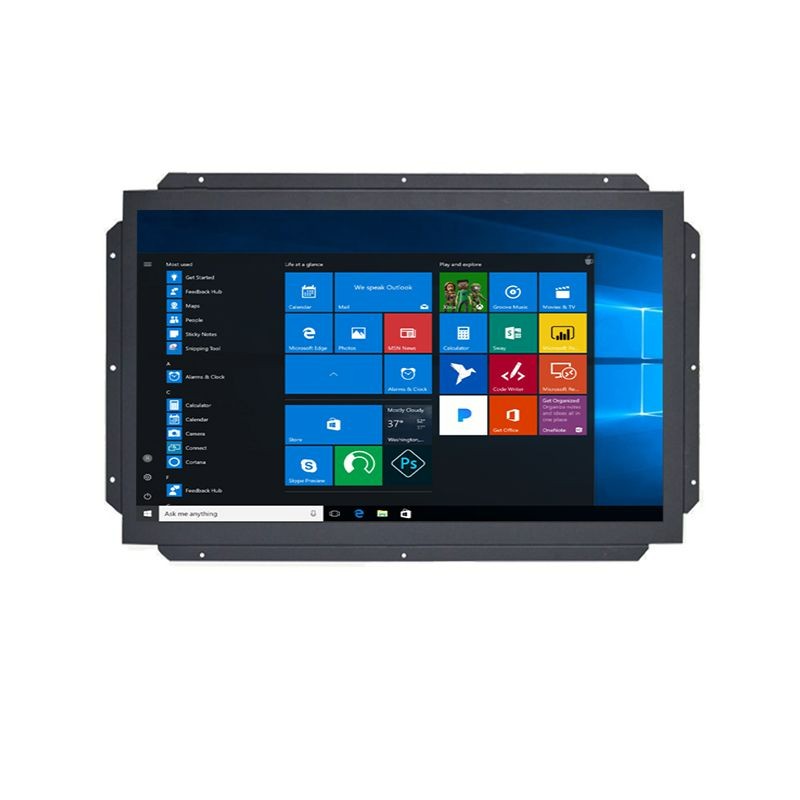

43 inch chassis mount panel pc

Panel size:43"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:400nits
Touch Type:Capacitive
IP grade:No IP Rating

OVERVIEW

Advanvision industrial chassis mount panel PCs is a cost-effective and budget-priced all in one industrial all in one computer series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and Self-service kiosk applications. The rugged all-steel housing provides the durability required in demanding industrial environments. The flexible mounting brackets around the metal chassis allow them to be flexibly and easily embedded in the interior of various equipment and machines, and keep the machine and equipment as a whole simple and beautiful. Modularize mechanical design provides flexible product configuration and easy maintenance. We provide the chassis mount computers with industrial/commercial-grade LCD panels optional, and also with PCAP touch screen and resistive touch, IR touch, Saw touch optional. The front IP65 design is very realistic for them, while we can also provide them with 1000nis to 1500nits high brightness LCD panels so that they can be used in outdoor or semi-outdoor environments.





FEATURES

1, Rugged all-steel enclosure with flexible mounting brackets around the metal chassis.

2,Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional

3, LED backlight energy efficient, low power consumption LCD panel inside.

3, High environmental performance and reliability.

5, Anti-reflective protective glass optional.

6, Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F).

7, Phoenix terminal 9-36V wide voltage input optional.

8, 5 Wired Resistive touch/ IR/ PCAP Touch Screen/SAW (USB Default/ RS232 per request controller).

9, Optional High Brightness 1000nits-1500nits F or Semi outdoor application.

10, High performance motherboard, 7x24 continuous operation.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

43”

Native Resolution

1920*1080

Aspect ratio

16:9

Active Area(mm)

941.184(H) x   529.416(V)

Brightness

400 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

1100:1

Response Time

12ms

Viewing Angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤160W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

35.5kg(Approx.)

Gross Weight

46.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

embedded mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


43 inch chassis mount panel pc with no touch, J1900/ADV43CMPCNTJ1

43 inch chassis mount panel pc with tempered glass,1900 /ADV43CMPCTGJ1

43 inch chassis mount panel pc with capacitive touch,J1900/ADV43CMPCCTJ1

43 inch chassis mount panel pc with IR touch,J1900/ADV43CMPCITJ1

43 inch chassis mount panel pc with no touch, i3/ADV43CMPCNT01I3

43 inch chassis mount panel pc with tempered glass,i3 /ADV43CMPCTGI3

43 inch chassis mount panel pc with capacitive touch,i3/ADV43CMPCCTI3

43 inch chassis mount panel pc with IR touch,i3/ADV43CMPCITI3

43 inch chassis mount panel pc with no touch, i5/ADV43CMPCNTI5

43 inch chassis mount panel pc with tempered glass,i5/ADV43CMPCTGI5

43 inch chassis mount panel pc with capacitive touch,i5/ADV43CMPCCTI5

43 inch chassis mount panel pc with IR touch,i5/ADV43CMPCITI5

43 inch chassis mount panel pc with no touch, i7/ADV43CMPCNTI7

43 inch chassis mount panel pc with tempered glass,i7/ADV43CMPCTGI7

43 inch chassis mount panel pc with capacitive touch,i7/ADV43CMPCCTI7

43 inch chassis mount panel pc with IR touch,i7/ADV43CMPCITI7
