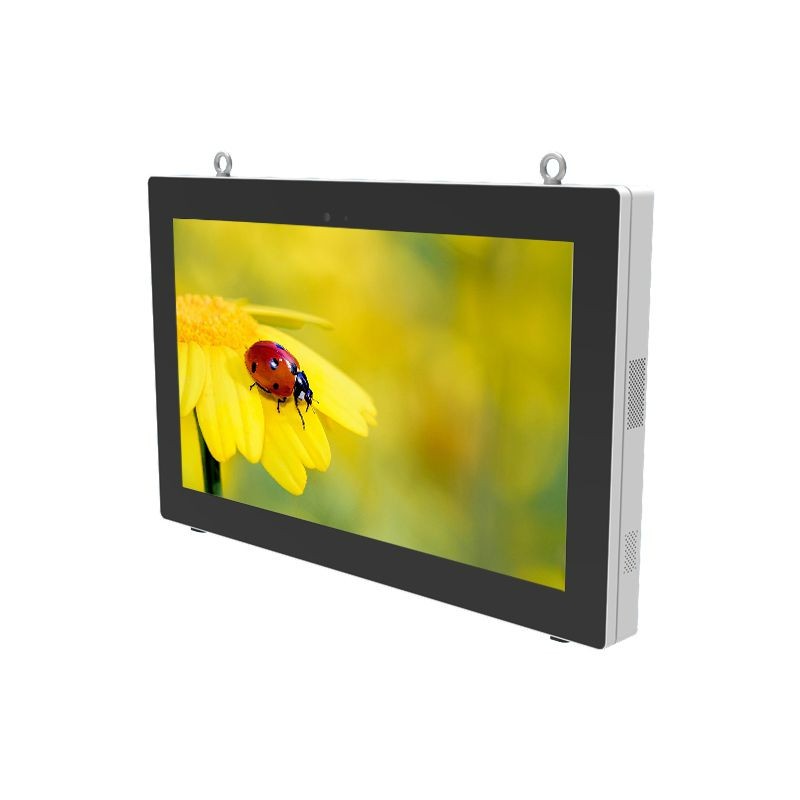

49 inch wall mount outdoor sunlight readable digital signage

Panel size: 49"
Brightness: 400nits
IP grade: Full IP65
Function: advertisement player
Application: outdoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor special plastic powder, and the protection period is more than 10 years.

2. FHD,UHD,4K are optional.IPS technology provides better control of the liquid crystals,which in turn allows the screen to be viewed at virtually any angle.

3. Less interference between reflection of external light&back light thanks to anti-reflection coating.

4. Dust & Humidity protection designed with IP55/65 rating.The conformal coating enhance circuit board reliability by protecting it from dust,iron shavings humidity and other harsh conditions.

5. Energy-saving LED backlight(1000-3000 Lumens),Weather-proof,sun-readable, auto-sensor,Anti-dust,anti-thunder,anti-vandalism(Locks&key),anti-radiation,anti-eletromagnetic.

6. Smart brightness control.The auto-brightness sensor and preset time scheduler save power whenever possible.

7. High operating temperature.The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.

8. Enhanced thermal management.Environmentally sealed structure for waterproofing and protecting againsts brake dust and fumes. Three-layer thermal management prevents heating from the lcd,circuit/power board and solar loading. Totally self-contained and suitable for outdoor use without air filter.

9. 6mm AG/AR protective glass. Designed to protect panel from impacts and vandalism for outdoor use. Features OCA*film to protect against heating in direct sunlight.

10. Low power consumption. The panel offer excellent energ efficiency and cost saving and decreases power consumption by approx. 31 compared to conventional RGB panels with same luminance.

11. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

12. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

13. Rich size available:32” 43" 49” 55” 65” 75” 86” 98”, support OEM / ODM.


SPECIFICATION

LCD Panel

Panel size

49”

Native   resolution

1920 x 1080

Aspect ratio

16:9

Active Area(mm)

1073.78mm(W)×604mm(H)

Brightness

400 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

1200:1

Response Time

12ms

Viewing angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Optional version

Standalone Digital Signage Version

Support   picture,music and video to 1080P

Support   SD/HDMI/USB inputs

Support SD   card plug and play automatically

Usb updated   function:update documents by usb drive to sd card

Support   connencting with media player box/PC by HDMI input

Playlist   function:auto play the designated file at the specific date

Timer   function:5 groups timers to turn on/off at the designated time

Slideshow   functions to play music and pictures at the same time

Portrait/landscape   display mode

Scrolling   text with different color and effect



Android Network Display   Version

Andriod   5.1/7.1 operating system optional

RK3188/RK3288/RK3399   optional

IGB/2GB/4GB   RAM(DDR3)optional

8GB/16GB/32GB/64GB   flash optional

3G(optional)/WLAN/WIFI   network connection

802.11B/G/N   Internal Wifi

Portrait/landscape   display mode

1080P display   output

Remote   management software (CMS)optional

All-in-one Windows Display   Version

CPU: Intel   Celeron Precessor J1900/Intel Core processor I3/I5/I7

Chipset:1037U+NM70/Haswell-U

System   memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD

Input   connectors: VGA/HDMI/USB/RJ45/Audio

Operating   system: Windows 7/8/10,Linux

Preinstall   Intel OS service optional

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

Aluminium alloy face frame,high   strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating,IP65   front optional

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

85kg(Approx.)

Gross weight

125kg(Approx.)

Accessories

Power adapter, power cord, USB touch cable, HDMI/ VGA cable

Other


Mounting

VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


49 inch wall mount outdoor sunlight readable standalone digital signage/ADV49FSSADTGIP01

49 inch wall mount outdoor sunlight readable android network display/ADV49FSAADTGIP0X

49 inch wall mount outdoor sunlight readable all-in-one windows display /ADV49FSWADTGIP0X
