OVERVIEW

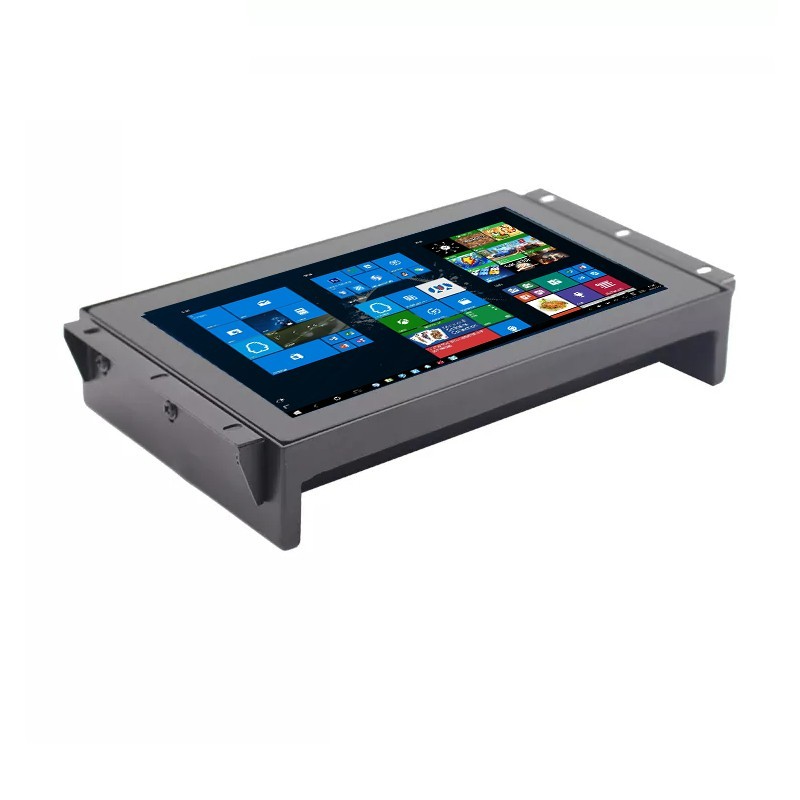

Advanvision’s open frame panel PCs implements the central human-machine interface (HMI). Integrated in a rugged yet simple galvanized sheet housing, a high quality industrial monitor combines powerful PC components to form a thin, economical and practical open frame all in one pc unit. In the case of open frame construction, it is installed at the rear (from the rear) in cutouts of an existing front. The open frame all in one touch panel PCs are often the installation solution of choice, especially in environments where there are no high requirements for dust or water tightness. If interaction with the user is desired in addition to being used as a pure operation control, a keyboard can be integrated into the built-in level directly under the open frame industrial fanless panel PC. Alternatively, Open Frame touch panel PCs of all sizes are also available with resistive touchscreen or capacitive touchscreen which enables precise 1-finger or 10-fingers operation on the screen. The task of the panel PCs - operating and monitoring - is individually adapted for an optimal customer solution, according to requirements. With or without a touch screen, what ultimately counts for Open Frame all in one panel PC is that they can be seamlessly integrated into an industrial network and that they perform their tasks with the highest level of reliability.
FEATURES
1, Bezel-less display provides design flexibility for customers without any limitation.
2, 6.5inch industrial grade LCD panels with 640*480 resolution, wide viewing angle.
3, Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional
4, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.
5, High performance motherboard, 7x24 continuous operation.
6, 1000-1500nits high brightness LCD optional for outdoor use.
7, Customized integrated rugged metal enclosure with customized dimensions with excellent heat dissipation.
8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9, Phoenix terminal 9-36V wide voltage input optional.
10, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.
SPECIFICATION
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
CPU Optional | Intel® Celeron 3825U,J4105 ,Core i3/i5/i7 |
Chipset | Intel NM10 Express |
Memory | 4G DDR3 (2G, 8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G, 128GB, 256GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI 4G Optional |
I/O Interface | 2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485) |
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD Panel | |
Panel size | 6.5” |
Native Resolution | 640*480 |
Aspect ratio | 4:3 |
Brightness | 800 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 1000:1 |
Response Time | 3s |
Viewing Angle | 80°/80°/70°/70° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch Response Time | 2ms |
Working Life | >50 million times |
Touch Options | (5 wires restive touch,IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working Voltage | DC 12V |
Power Consumption | ≤15W |
Enclosure | |
Material | High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA Mounting | 75×75mm/100×100mm |
IP Grade | No |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative Humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net Weight | 1.7kg(Approx.) |
Gross Weight | 2.2kg(Approx.) |
Accessories | Power adapter, embedded screws, user manual, warranty card |
Other | |
Mounting | embedded mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
6.5 inch open frame panel pc with no touch, J1900/ADV065OFPCNTJ1 | |
6.5 inch open frame panel pc with tempered glass,1900 /ADV065OFPCTGJ1 | |
6.5 inch open frame panel pc with resistive touch,J1900/ADV065OFPCRTJ1 | |
6.5 inch open frame panel pc with capacitive touch,J1900/ADV065OFPCCTJ1 | |
6.5 inch open frame panel pc with no touch, i3/ADV065OFPCNT01I3 | |
6.5 inch open frame panel pc with tempered glass,i3 /ADV065OFPCTGI3 | |
6.5 inch open frame panel pc with resistive touch,i3/ADV065OFPCRTI3 | |
6.5 inch open frame panel pc with capacitive touch,i3/ADV065OFPCCTI3 | |
6.5 inch open frame panel pc with no touch, i5/ADV065OFPCNTI5 | |
6.5 inch open frame panel pc with tempered glass,i5/ADV065OFPCTGI5 | |
6.5 inch open frame panel pc with resistive touch,i5/ADV065OFPCRTI5 | |
6.5 inch open frame panel pc with capacitive touch,i5/ADV065OFPCCTI5 | |
6.5 inch open frame panel pc with no touch, i7/ADV065OFPCNTI7 | |
6.5 inch open frame panel pc with tempered glass,i7/ADV065OFPCTGI7 | |
6.5 inch open frame panel pc with resistive touch,i7/ADV065OFPCRTI7 | |
6.5 inch open frame panel pc with capacitive touch,i7/ADV065OFPCCTI7 |
