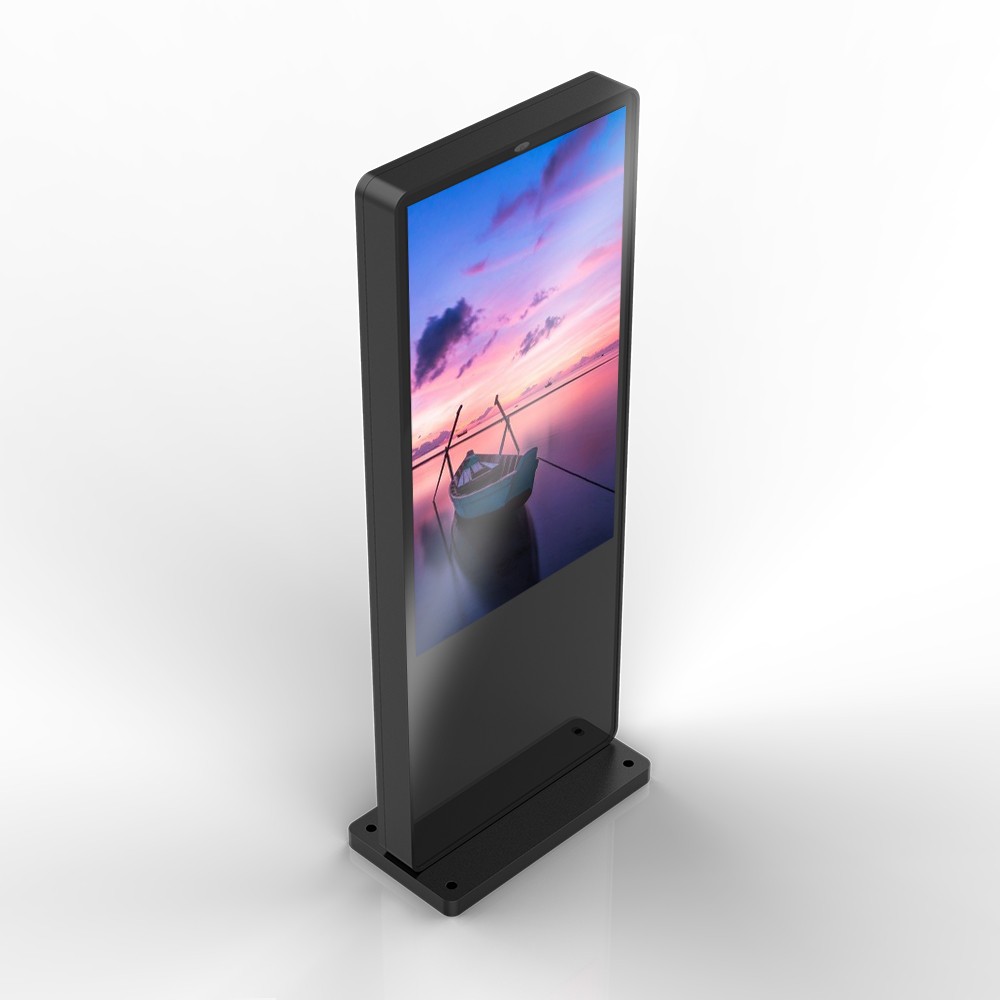

65 inch floor stand kiosk digital signage

Panel size: 65"
Brightness: 400nits
IP grade: No IP Rating
Function: advertisement player
Application: Indoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. Aluminum frame up to only 50mm thickness,with cold roll steel sheet back cover .

2. 4-6 mm toughened glass in the surface for vandal proof.

3. Stand-alone / android / windows version optional.

4. High performance motherboard, 7*24 continuous operation.

5. Support multiple split screen remote operation (option:android/windows/stand-alone).

6. High brightness optional (1500~3000nit).

7. FHD, ultra high definition UHD, 4K different resolution are optional, grade A, LED Backlight, different screen diagonal.

8. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

9. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

10.Rich size available: 32" 43" 49" 55" 65" 75" 86", support OEM / ODM.


SPECIFICATION

LCD Panel

Panel size

65”

Native   resolution

1920 x 1080

Aspect ratio

16:9

Active Area(mm)

1428.48(H)x803.52(V)

Brightness

400 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

1400:1

Response Time

5.5s

Viewing angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Optional version

Standalone Digital Signage Version

Support   picture,music and video to 1080P

Support   SD/HDMI/USB inputs

Support SD   card plug and play automatically

Usb updated   function:update documents by usb drive to sd card

Support   connencting with media player box/PC by HDMI input

Playlist   function:auto play the designated file at the specific date

Timer   function:5 groups timers to turn on/off at the designated time

Slideshow   functions to play music and pictures at the same time

Portrait/landscape   display mode

Scrolling   text with different color and effect



Android Network Display   Version

Andriod   5.1/7.1 operating system optional

RK3188/RK3288/RK3399   optional

IGB/2GB/4GB   RAM(DDR3)optional

8GB/16GB/32GB/64GB   flash optional

3G(optional)/WLAN/WIFI   network connection

802.11B/G/N   Internal Wifi

Portrait/landscape   display mode

1080P display   output

Remote   management software (CMS)optional

All-in-one Windows Display   Version

CPU: Intel   Celeron Precessor J1900/Intel Core processor I3/I5/I7

Chipset:1037U+NM70/Haswell-U

System   memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD

Input   connectors: VGA/HDMI/USB/RJ45/Audio

Operating   system: Windows 7/8/10,Linux

Preinstall   Intel OS service optional

Power Supply

External Power   Supply

AC 100 - 240V , 50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

Aluminium alloy face frame,high   strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating,IP65 front optional

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

115kg(Approx.)

Gross weight

185kg(Approx.)

Accessories

Power adapter, power cord, USB touch cable, HDMI/ VGA cable

Other


Mounting

VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


65 inch floor standing standalone digital signage/ADV65FSSADTG01

65 inch floor standing android network display/ADV65FSAADTG0X

65 inch floor standing all-in-one windows display /ADV65FSWADTG0X
