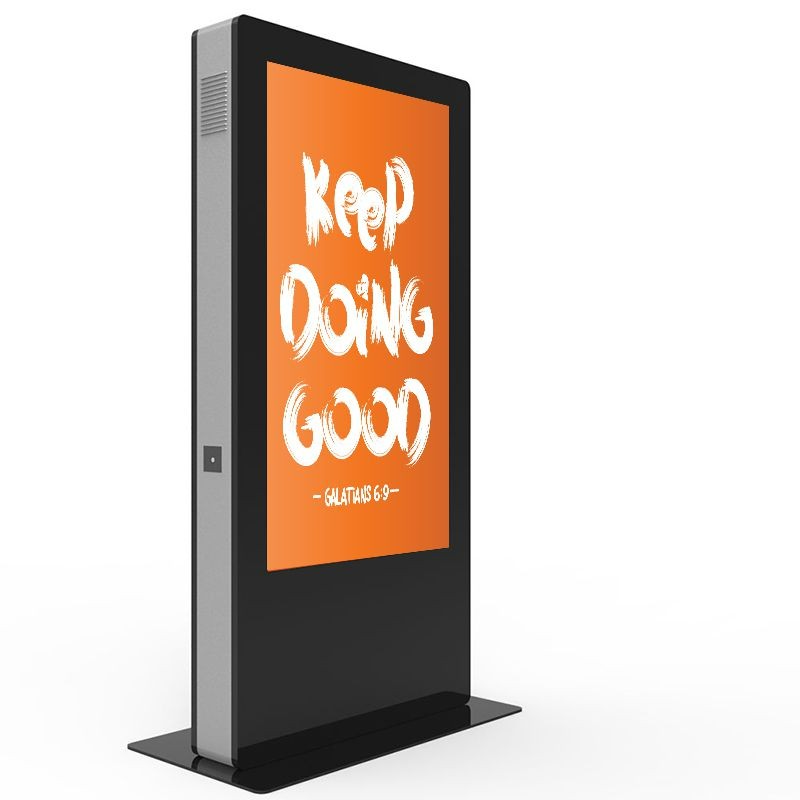

65 inch floor stand outdoor sunlight readable digital signage

Panel size: 65"
Brightness: 400nits
IP grade: Full IP65
Function: advertisement player
Application: outdoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor special plastic powder, and the protection period is more than 10 years.

2. FHD,UHD,4K are optional.IPS technology provides better control of the liquid crystals,which in turn allows the screen to be viewed at virtually any angle.

3. Less interference between reflection of external light&back light thanks to anti-reflection coating.

4. Dust & Humidity protection designed with IP55/65 rating.The conformal coating enhance circuit board reliability by protecting it from dust,iron shavings humidity and other harsh conditions.

5. Energy-saving LED backlight(1000-3000 Lumens),Weather-proof,sun-readable, auto-sensor,Anti-dust,anti-thunder,anti-vandalism(Locks&key),anti-radiation,anti-eletromagnetic.

6. Smart brightness control.The auto-brightness sensor and preset time scheduler save power whenever possible.

7. High operating temperature.The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.

8. Enhanced thermal management.Environmentally sealed structure for waterproofing and protecting againsts brake dust and fumes. Three-layer thermal management prevents heating from the lcd,circuit/power board and solar loading. Totally self-contained and suitable for outdoor use without air filter.

9. 6mm AG/AR protective glass. Designed to protect panel from impacts and vandalism for outdoor use. Features OCA*film to protect against heating in direct sunlight.

10. Low power consumption. The panel offer excellent energ efficiency and cost saving and decreases power consumption by approx. 31 compared to conventional RGB panels with same luminance.

11. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

12. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

13. Rich size available:32” 43" 49” 55” 65” 75” 86” 98”, support OEM / ODM.

SPECIFICATION

LCD Panel
Panel size	65”
Native resolution	1920 x 1080
Aspect ratio	16:9
Active Area(mm)	1428.48(H)x803.52(V)
Brightness	400 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1400:1
Response Time	5.5s
Viewing angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Optional version
Standalone Digital Signage Version	Support picture,music and video to 1080P Support SD/HDMI/USB inputs Support SD card plug and play automatically Usb updated function:update documents by usb drive to sd card Support connencting with media player box/PC by HDMI input Playlist function:auto play the designated file at the specific date Timer function:5 groups timers to turn on/off at the designated time Slideshow functions to play music and pictures at the same time Portrait/landscape display mode Scrolling text with different color and effect
Android Network Display Version	Andriod 5.1/7.1 operating system optional RK3188/RK3288/RK3399 optional IGB/2GB/4GB RAM(DDR3)optional 8GB/16GB/32GB/64GB flash optional 3G(optional)/WLAN/WIFI network connection 802.11B/G/N Internal Wifi Portrait/landscape display mode 1080P display output Remote management software (CMS)optional
All-in-one Windows Display Version	CPU: Intel Celeron Precessor J1900/Intel Core processor I3/I5/I7 Chipset:1037U+NM70/Haswell-U System memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD Input connectors: VGA/HDMI/USB/RJ45/Audio Operating system: Windows 7/8/10,Linux Preinstall Intel OS service optional
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Material	Aluminium alloy face frame,high strength cold rolled steel back case
Color/Dimension	Black, white, Silver , color and dimensions are can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating,IP65 front optional
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	115kg(Approx.)
Gross weight	185kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
65 inch floor standing standalone digital signage/ADV65FSSADTG01
65 inch floor standing android network display/ADV65FSAADTG0X
65 inch floor standing all-in-one windows display /ADV65FSWADTG0X
