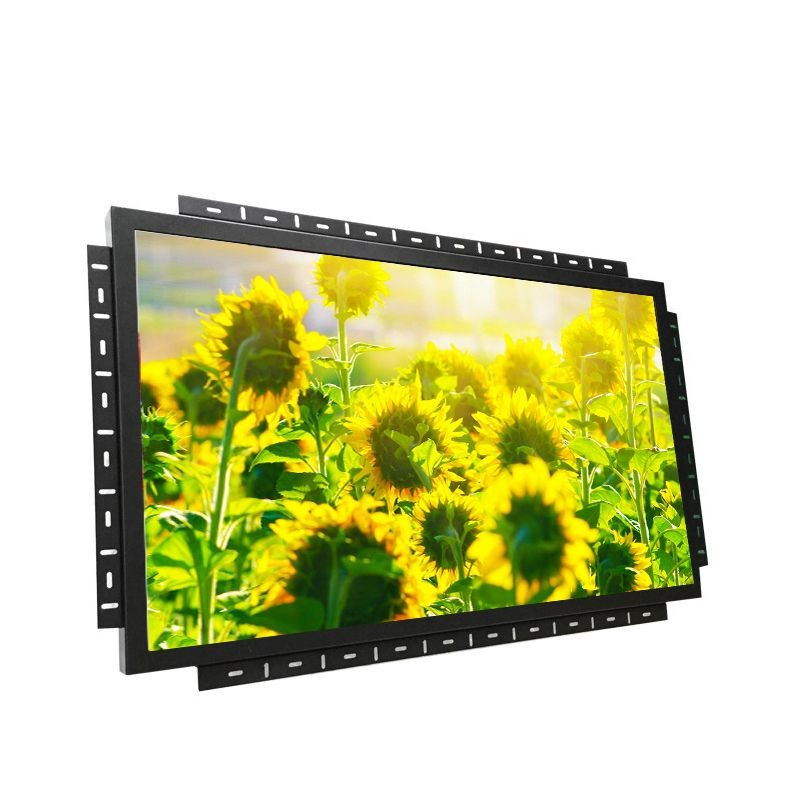

65 inch high brightness sunlight readable panel pc

Panel size:65"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:450nits
Touch Type:Capacitive
IP grade:No IP Rating

OVERVIEW

Advanvision’s industrial sunlight readable high brightness panel PCs are rugged and reliable panel PC solution with brightness up to 1500 nits dedicating to sunlight industrial applications. We provide them with different appearance and structure for customer choose, such as open frame, chassis mount, panel mount, rack mount, flush mount. The configuration with processors, main memories, drives and interfaces takes place as required, precisely tailored to the area of application of the sunlight readable touch panel PCs. Our industrial sunlight readable/high brightness all in one touch computers come with either a galvanized sheet/Aluminum or Stainless-Steel enclosure. Extended temperature and optical bonding options available. Even if it is equipped with a high brightness LCD screen visible in the sunlight, a good heat dissipation design can also ensure that our industrial high brightness panel PCs works stably in harsh environments, which is ideal for process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.





FEATURES

1, 65inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch optional.

3, Support 7/24 operation in harsh environments.

4, High performance processor, graphics, memory and power.
5,1000-1500nits sunlight readable LCD with optical bonding optional for semi-outdoor/outdoor use.

6, Metal chassis and casing with good heating-dissipation under high-temperature conditions.

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, Open frame, chassis, chassis mount, panel mount, rack mount, flush mount optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

65”

Native   resolution

1920 x 1080

Aspect ratio

16:9

Active Area(mm)

1428.48(H)x803.52(V)

Brightness

1000nits-3500nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

1400:1

Response Time

5.5s

Viewing angle

89°/89°/89°/89° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤265W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per   axis

Packing   Details


Net Weight

79kg(Approx.)

Gross Weight

101kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

embedded mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


65 inch sunlight readable high brightness chassis panel pc with no touch, J1900/ADV65CPCHBNTJ1

65 inch sunlight readable high brightness chassis panel pc with tempered glass,1900 /ADV65CPCHBTGJ1

65 inch sunlight readable high brightness chassis panel pc with resistive touch,J1900/ADV65CPCHBRTJ1

65 inch sunlight readable high brightness chassis panel pc with capacitive touch,J1900/ADV65CPCHBCTJ1

65 inch sunlight readable high brightness chassis panel pc with no touch, i3/ADV65CPCHBNT01I3

65 inch sunlight readable high brightness chassis panel pc with tempered glass,i3 /ADV65CPCHBTGI3

65 inch sunlight readable high brightness chassis panel pc with resistive touch,i3/ADV65CPCHBRTI3

65 inch sunlight readable high brightness chassis panel pc with capacitive touch,i3/ADV65CPCHBCTI3

65 inch sunlight readable high brightness chassis panel pc with no touch, i5/ADV65CPCHBNTI5

65 inch sunlight readable high brightness chassis panel pc with tempered glass,i5/ADV65CPCHBTGI5

65 inch sunlight readable high brightness chassis panel pc with resistive touch,i5/ADV65CPCHBRTI5

65 inch sunlight readable high brightness chassis panel pc with capacitive touch,i5/ADV65CPCHBCTI5

65 inch sunlight readable high brightness chassis panel pc with no touch, i7/ADV65CPCHBNTI7

65 inch sunlight readable high brightness chassis panel pc with tempered glass,i7/ADV65CPCHBTGI7

65 inch sunlight readable high brightness chassis panel pc with resistive touch,i7/ADV65CPCHBRTI7

65 inch sunlight readable high brightness chassis panel pc with capacitive touch,i7/ADV65CPCHBCTI7
