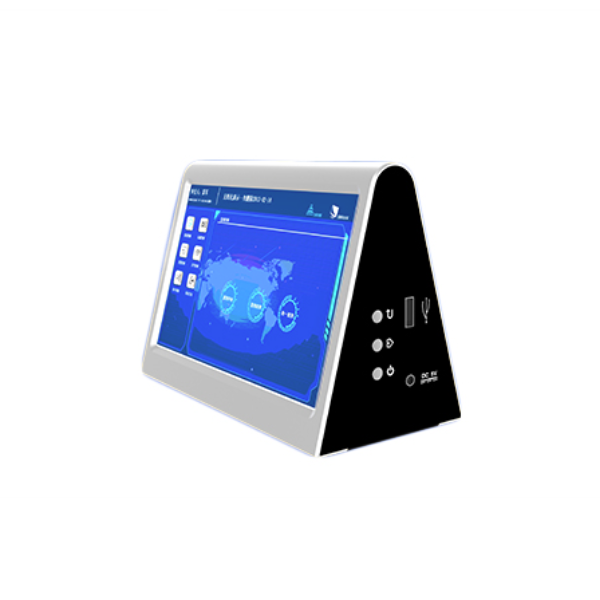

7 inch double sided smart electronic table name card

Panel size: 7"
Brightness: 300nits
Resolution:1024*600
IP grade: IP65 front
Function: Display name information
Application: Indoor
Material: Aluminum alloy integrated design + acrylic

OVERVIEW

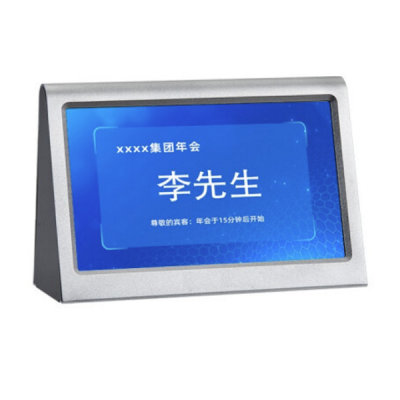

Advanvision’s electronic table card uses TFT LCD screen, showing clear content and bright colors. It can display the company name, attendee name, position, photos, trademarks and other information of the participants, the display content can be rich. It supports double-sided display of business card information. Click "business card" at the bottom of the screen to enter the double-sided business card display. Double click the upper left corner of the screen to return to the main interface. This intelligent electronic desk sign is an intelligent paperless device that transmits the display information to the terminal through wireless WIFI technology, combined with the computer-side management background, and can realize information interaction with the terminal device. It is suitable for high quality hotels, government agencies units, conference rooms of large enterprises etc.,





FEATURES

1, Support the centralized management of conference materials and participants' information. Nameplate personalized custom design.

2, Supports an unlimited number of custom and pre-made templates.

3, Support check-in, voting, call, view meeting content through touch screen, the supporting software can edit the color, language, font, word count, background and size of the displayed content.

4, Support stand-alone offline use, stand-alone renaming, and automatic data copying from U disk.

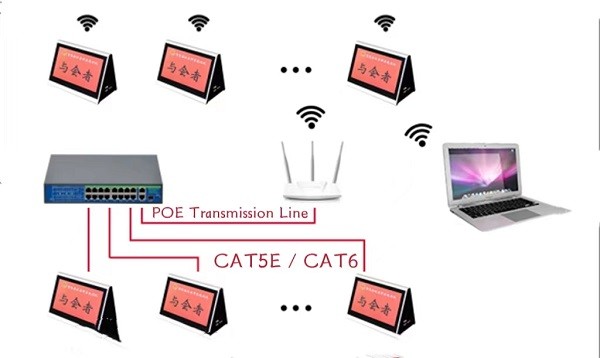

5, Support wireless WIFI information transmission and wired network connection, it can be connected to the host computer through WIFI, the import speed is fast.

6, Low power design (less than 6W) and matching high-quality, efficient and large-capacity lithium and multi-way fast charging battery, with stable performance and extended standby time.

7, This Electronic Table card can be operated individually by touch or mouse.





SPECIFICATION

LCD Panel

Panel size

7”

Native   resolution

1024*600

Aspect ratio

16:9

Active Area(mm)

154.214(H)×85.92(V)

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

800:1

Response Time

5ms

Viewing angle

80°/80°/60°/70°   (R/L/U/D)

Support Color

16.7M colors

System Information

System OS

Linux

Storage   space

1 GB

Data update   method

Wired POE/   Wireless WiFi / U-disk automatic import/ Stand-alone input

Control mode

Computer   software

Control platform

Control   platform

Input   interface

Power interface   / USB interface / POE interface

Power Supply

Power supply   mode

POE / Adapter /   High-capacity lithium battery

Battery   operating time

10 hours

Power   demand

AC 220V 50/60HZ

Power consumption

≤6W

Enclosure

Material

Aluminum alloy   integrated design + acrylic

Color/Dimension

Silver / Black   / Customizable

Installation   method

Desktop

IP grade

IP65 front

Operating Environment


Temperature   Range

operating: -20   to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10%   to 80% ,  storage :5% to 90%

Packing Details


Net weight

1.35kg (Approx.)

Gross weight

2.5kg (Approx.)

Accessories

Power adapter,   power cord, USB touch cable

Other


Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


7inch Double   Sided Smart Electronic Table Name Card/ ADV07DSSTC001
