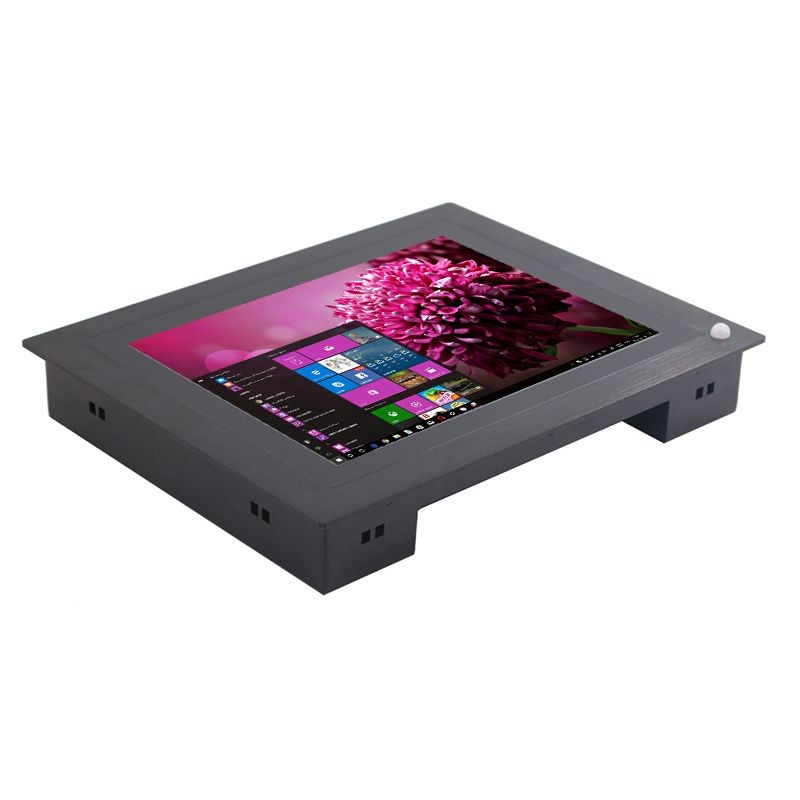

7 inch flat bezel panel mount panel pc

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：7"
Brightness：800nits
Touch Type：Capacitive
IP grade：IP65 front

OVERVIEW

Advanvision’s flat bezel panel mount panel PCs are fully-integrated‚ multi projected capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The real flat screen of a flat bezel panel mount computers is hermetically sealed to the frame. The flat bezel panel mount touch computer consisting of screen and computer is inserted precisely into the cutout of a mounting wall from the front and screwed on from the rear. The all-molded aluminum under shell design combined with easy-to-clean, water-resistant flat brushed aluminum or stainless steel panels provides them with elegant and perfect appearance. As for the front panel of the flat bezel panel mount all in one PCs, we can provide different material versions for customers to choose, usually there are brushed aluminum panel, brushed stainless steel panel. The configuration with processors, main memories, drives and interfaces takes place as required, precisely tailored to the area of application of the Panel Mount PC. The highest manufacturing quality of all components and heat dissipation design of all aluminum back shell ensures fail-safe long-term operation - even in 24-hour continuous use.

FEATURES

1, 7inch industrial grade LCD panels with 800*480 or 1024*600 resolution, wide viewing angle.

2, Resistive or capacitive touch screen optional.

3, Support 7/24 operation in harsh environments.

4, IP65 front easy-to-clean, water-resistant flat brushed aluminum or stainless steel front panel.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Aluminum alloy chassis and casing, good heating-dissipation under high-temperature conditions.

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, WIFI, Bluetooth optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	7”
Native Resolution	800480 or 1024600
Aspect ratio	16:9
Brightness	300 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	12s
Viewing Angle	70°/70°/50°/70° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤15W
Enclosure
Material	Aluminium alloy bezel+High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.3kg(Approx.)
Gross Weight	2.8kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	panel mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
7 inch flat bezel panel mount panel pc with no touch, J1900/ADV07FPMPCNTJ1
7 inch flat bezel panel mount panel pc with tempered glass,1900 /ADV07FPMPCTGJ1
7 inch flat bezel panel mount panel pc with resistive touch,J1900/ADV07FPMPCRTJ1
7 inch flat bezel panel mount panel pc with capacitive touch,J1900/ADV07FPMPCCTJ1
7 inch flat bezel panel mount panel pc with no touch, i3/ADV07FPMPCNT01I3
7 inch flat bezel panel mount panel pc with tempered glass,i3 /ADV07FPMPCTGI3
7 inch flat bezel panel mount panel pc with resistive touch,i3/ADV07FPMPCRTI3
7 inch flat bezel panel mount panel pc with capacitive touch,i3/ADV07FPMPCCTI3
7 inch flat bezel panel mount panel pc with no touch, i5/ADV07FPMPCNTI5
7 inch flat bezel panel mount panel pc with tempered glass,i5/ADV07FPMPCTGI5
7 inch flat bezel panel mount panel pc with resistive touch,i5/ADV07FPMPCRTI5
7 inch flat bezel panel mount panel pc with capacitive touch,i5/ADV07FPMPCCTI5
7 inch flat bezel panel mount panel pc with no touch, i7/ADV07FPMPCNTI7
7 inch flat bezel panel mount panel pc with tempered glass,i7/ADV07FPMPCTGI7
7 inch flat bezel panel mount panel pc with resistive touch,i7/ADV07FPMPCRTI7
7 inch flat bezel panel mount panel pc with capacitive touch,i7/ADV07FPMPCCTI7
