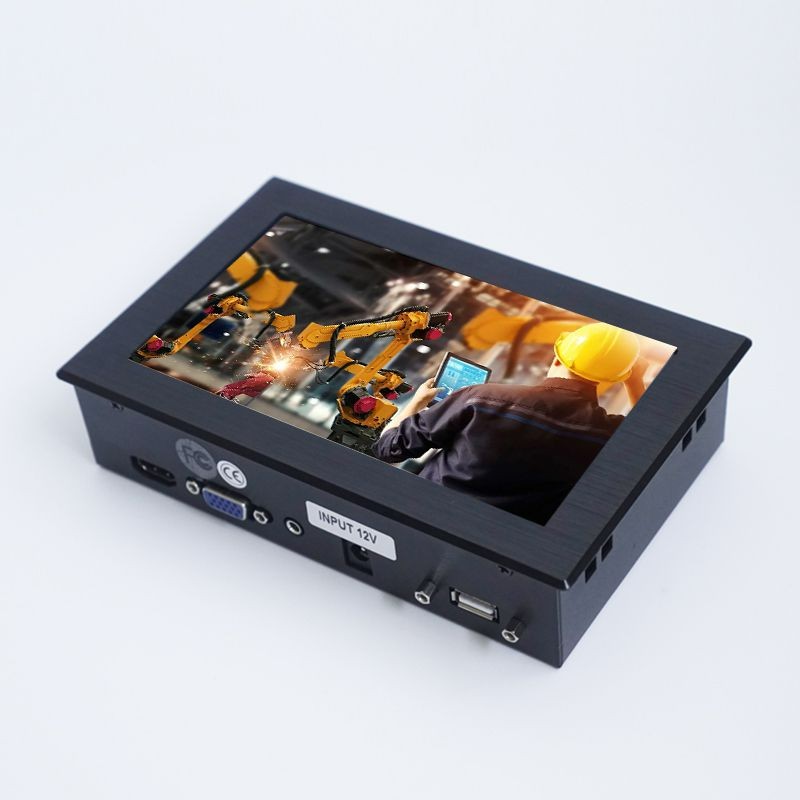

7 inch panel mount lcd monitor

Panel size:7"
Resolution:800*480 or 1024*600
Surface Treatment:PCAP touch
Interface:HDMI/DVI/VGA
Brightness:300nits
Touch Type:Capacitive or resistive
IP grade:IP65 front

OVERVIEW

A panel mount monitor refers to a display device that is designed to be securely mounted onto a flat surface, typically a panel or enclosure. These monitors are often used in various industrial, commercial, and professional settings where a rugged and space-efficient display solution is required. Panel mount monitors are specifically designed for mounting on a panel or surface, the mounting method ensures a secure and flush fit onto the mounting surface.Panel mount monitors are commonly used in industrial environments, manufacturing facilities, control rooms, kiosks, and various other applications where a durable and integrated display solution is needed. They are built to withstand harsh conditions, including temperature variations, humidity, and potential physical impacts. Usually Advanvision’s panel mount monitors come with touchscreen functionality. These touchscreen monitors can be used in interactive applications such as kiosks, point-of-sale systems, automation control panels, and more. It also come in various screen sizes and resolutions to accommodate different needs. They range from smaller screens suitable for compact spaces to larger displays for more extensive monitoring and control tasks. Advanvision’s panel mount monitors generally offer a range of connectivity options, including HDMI, DisplayPort, VGA, USB, and sometimes legacy connections like DVI or RS-232. This flexibility ensures compatibility with a wide range of devices and systems. Advanvision offer customization options for panel mount monitors, allowing customers to choose specific features such as touchscreen technology, protective glass, anti-glare coatings, high brightness, IP protection, wide operating temperatures, and rugged construction for use in harsh environments. Panel mount monitors are designed to be beautiful and highly adaptable, making them an ideal solution for OEMs, system integrators who need reliable and flexible display solutions.




FEATURES

1, 7inch industrial grade LCD panels with 800*480 or 1024*600 resolution, wide viewing angle.

2, It installed flush with the surface of the panel or enclosure, creating a seamless and integrated appearance.

3, Option for resistive or capacitive, IR type touch screen, high sensitive and fast response.

4, Industrial grade AD board, 7x24 continuous operation optional

5, Easy-to-install embedded/panel mounting with clamps.

6, 1000-1500nits sunlight readable optional.
7, Customized black aluminum front bezel, IP65/NEMA 4X front water proof.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9, With VGA, HDMI, DVI input.

10, Phoenix terminal 9-36V wide voltage input optional.



SPECIFICATION

LCD Panel

Panel size

7”

Native   resolution

800*480 or 1024*600

Aspect ratio

16:9

Active Area(mm)

152.40(H)*91.44(V)

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio (Center   of screen)

500:1

Response Time

12s

Viewing angle

70°/70°/50°/70°   (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project   Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB     (RS232 optional)

Touch response   time

2ms

Working   Life

>50 million   times

Touch options

(5 wires restive   touch,IR touch optional)

Signal Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out,DP

Optional

OSD

OSD control

Brightness,   contrast ratio, auto adjustment, H/V position,  language select etc.

Support   languages

English, French,   Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP ,   Windows /7/8/10 ,Linux, Mac OS X,Android ect.

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

High strength   cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating

Operating   Environment


Temperature   Range

operating: -20   to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10%   to 80% ,  storage :5% to 90%

Packing Details


Net weight

1.9kg(Approx.)

Gross weight

2.4kg(Approx.)

Accessories

Power adapter,   power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws

Other


Mounting

embedded   mounting

wall mounting   brackets  (optional)

desk stand   holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


7 inch panel mount LCD monitor no touch/ADV07PMNT01

7 inch panel mount LCD monitor with tempered glass /ADV07PMTG01

7 inch panel mount LCD monitor with resistive touch/ADV07PMRT01

7 inch panel mount LCD monitor with capacitive touch/ADV07PMCT01
