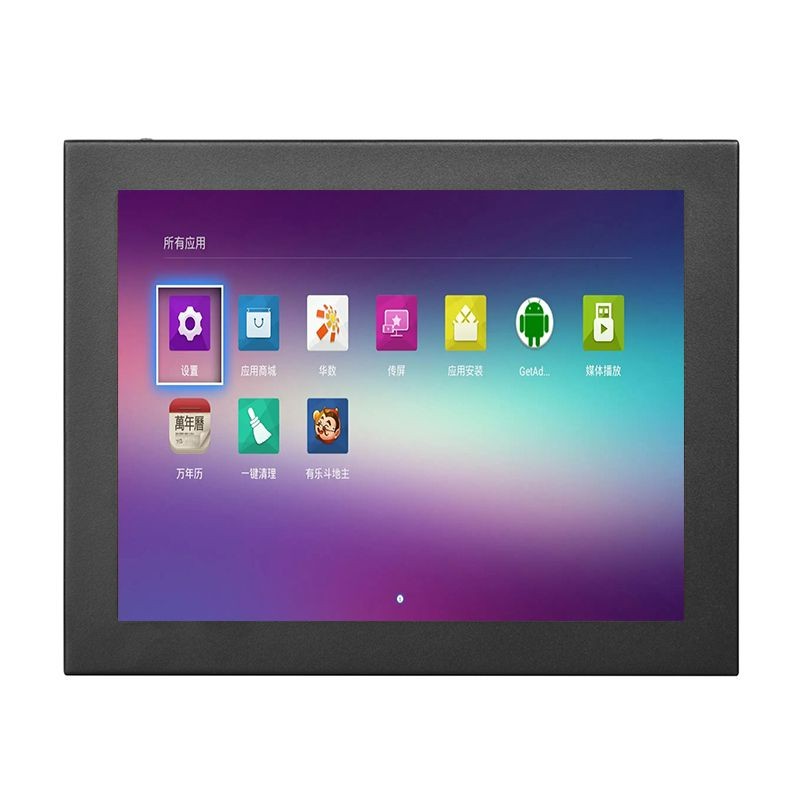

8.4 inch android industrial touch panel pc

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：8.4"
Brightness：250nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

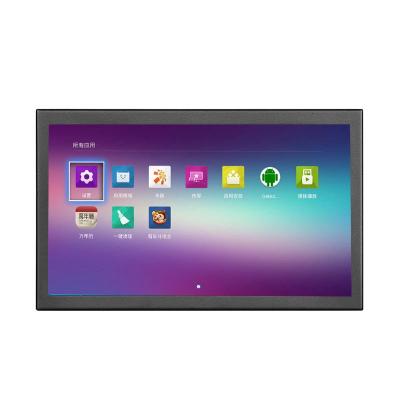

Advanvision industrial Fanless android Panel PCs is available in screen sizes from 6.5" up to 75". These industrial android computers run on Rackchip RK series, with RK3288, RK3568, RK3399 optional. Those android industrial panel PCs can operate Linux or Android. These operating systems are perfect for web based applications and can be easily integrated into industrial manufacturing applications. Android touch panel PCs provides a cost effective alternative to traditional Windows based panel PCs. Advanvision fanless android touch panel PCs has rugged metal enclosures and with IP65 front, flat bezel design, zero bezel design optional. They allow for durability and reliability in any environment. The android all in one touch computers solution are perfect for applications such as automated industry, building automation, smart city, and IoT cloud based solutions.

FEATURES

1, Support android 5.1, 6.0, 7.1, 9.0, 10.0,11 and Linux, Ubuntu, which are ideal platforms for running your own applications or customizing the OS for your needs.

2, With onboard DDR3 2GB-8G ram memory and 8G-64G onboard flash rom optional.

3, 8.4" industrial grade LCD panel with 800*600 resolution and 1000nits high brightness optional, and available with 10point PCAP touch or resistive touch.

4, Simple and smart design with rugged metal enclosure, which have fanless cooling systems and durability in high shock and vibration settings.

5, Customized multiple I/O port to meet customers requirement, can be with SIM card slot, and support 3G/4G optional, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.

6, Provide SDK, support secondary development.

7, High performance industrial android motherboard, 7x24 continuous operation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.

SPECIFICATION

PC
CPU	ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz
CPU Optional	RK3399, RK3368 Optional
GPU	Mali-T764 GPU
SDRAM	2G (4G, 8G optional)
Flash	8G: 16G/32G/64G/128G Optional
Bluetooth	Optional
Video Decoder	4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
Media Format	Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc
Music Format	Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC
Network Support	Ethernet,Wifi/bluetooth 4.0,wireless peripherals,etc
I/O Interface	1 × HDMI; 2 × USB Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); Com Port optional
Operation System	Android 6.0/7.1/8.0
LCD Panel
Panel size	8.4”
Native Resolution	800*600
Aspect ratio	4:3
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	8ms
Viewing Angle	75°/75°/65°/65°(R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤18W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.6kg(Approx.)
Gross Weight	3.1kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	Vesa mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
8.4 inch chassis android panel pc with no touch, J1900/ADV084CMAPCNTJ1
8.4 inch chassis android panel pc with tempered glass,1900 /ADV084CMAPCTGJ1
8.4 inch chassis android panel pc with resistive touch,J1900/ADV084CMAPCRTJ1
8.4 inch chassis android panel pc with capacitive touch,J1900/ADV084CMAPCCTJ1
8.4 inch chassis android panel pc with no touch, i3/ADV084CMAPCNT01I3
8.4 inch chassis android panel pc with tempered glass,i3 /ADV084CMAPCTGI3
8.4 inch chassis android panel pc with resistive touch,i3/ADV084CMAPCRTI3
8.4 inch chassis android panel pc with capacitive touch,i3/ADV084CMAPCCTI3
8.4 inch chassis android panel pc with no touch, i5/ADV084CMAPCNTI5
8.4 inch chassis android panel pc with tempered glass,i5/ADV084CMAPCTGI5
8.4 inch chassis android panel pc with resistive touch,i5/ADV084CMAPCRTI5
8.4 inch chassis android panel pc with capacitive touch,i5/ADV084CMAPCCTI5
8.4 inch chassis android panel pc with no touch, i7/ADV084CMAPCNTI7
8.4 inch chassis android panel pc with tempered glass,i7/ADV084CMAPCTGI7
8.4 inch chassis android panel pc with resistive touch,i7/ADV084CMAPCRTI7
8.4 inch chassis android panel pc with capacitive touch,i7/ADV084CMAPCCTI7
