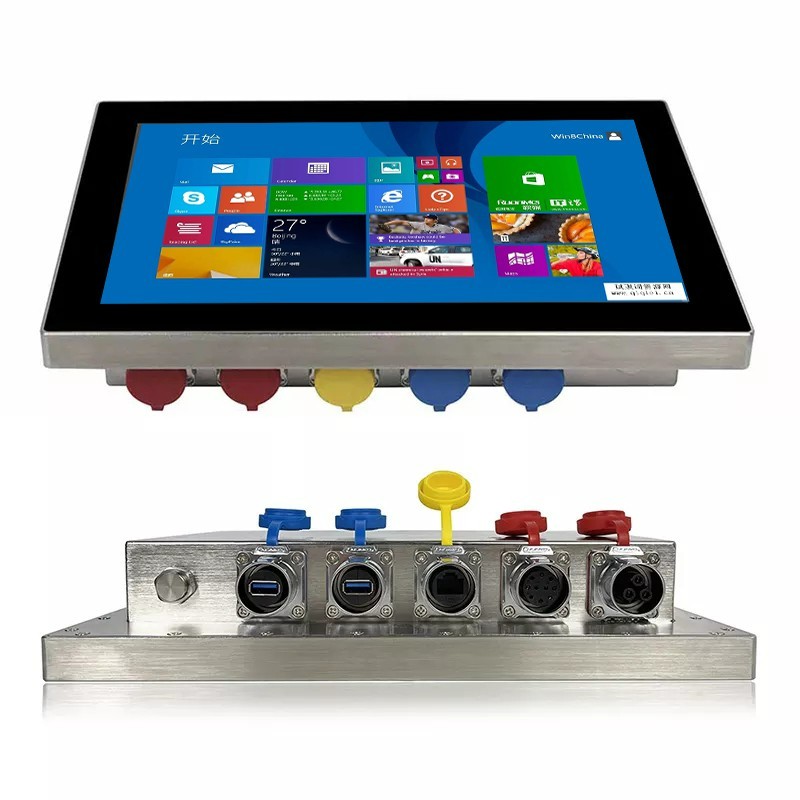

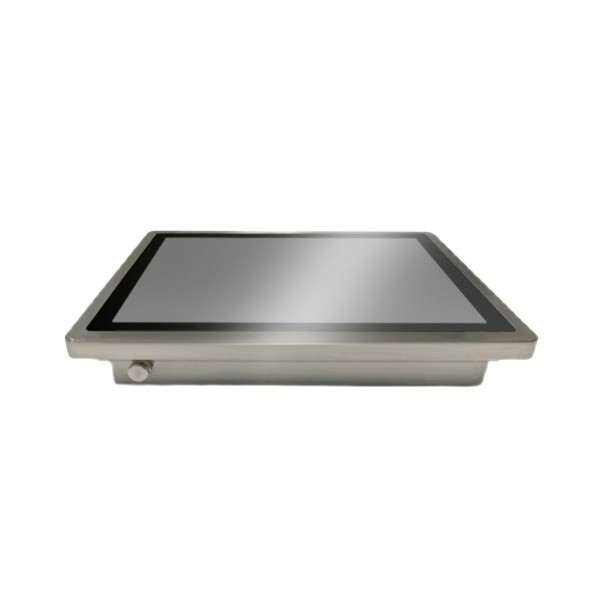

8.4 inch full IP65 stainless steel panel pc

CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Panel size:8.4"
Brightness:250nits
Touch Type:Capacitive
IP grade:Full IP65

OVERVIEW

Advanvision’s full IP65/IP67/69K rated fanless stainless steel panel PCs are built to withstand harsh working environments, which are enclosed in a fully sealed SUS304 or SUS316 stainless steel housing. The all 6 sides of the waterproof all in one PCs are designed to be water and dustproof and also for hygienic clean-in-place (CIP) sanitary processing and washdown applications, making these waterproof touch computers ideal for pharmaceutical, chemical or food factories. When configured with wide temperature operation and vibration protection, as well as 1000nit high brightness LCD panels configuration, the full IP rated waterproof stainless steel panel PCs can also be implemented in some outdoor applications such as parking management oil pipeline monitoring and the transportation industry. We provide them with a resistive or waterproof capacitive type touch screen, which allow customers to operate those IP66-IP69K waterproof computers smoothly in harsh, wet and watery environments. In terms of host configuration, we provide Intel Celeron J1900/J6412, Core I3/I5/I7 and Android RK3288/RK3399 motherboards for customers to choose from. The customized heat dissipation design ensures that those full IP65/67/69K waterproof computers can run stably for a long time regardless of the CPU on which they are configured, providing customers with an excellent use experience.







FEATURES

1, 8.4inch industrial grade LCD panels with 800*600 resolution, wide viewing angle.

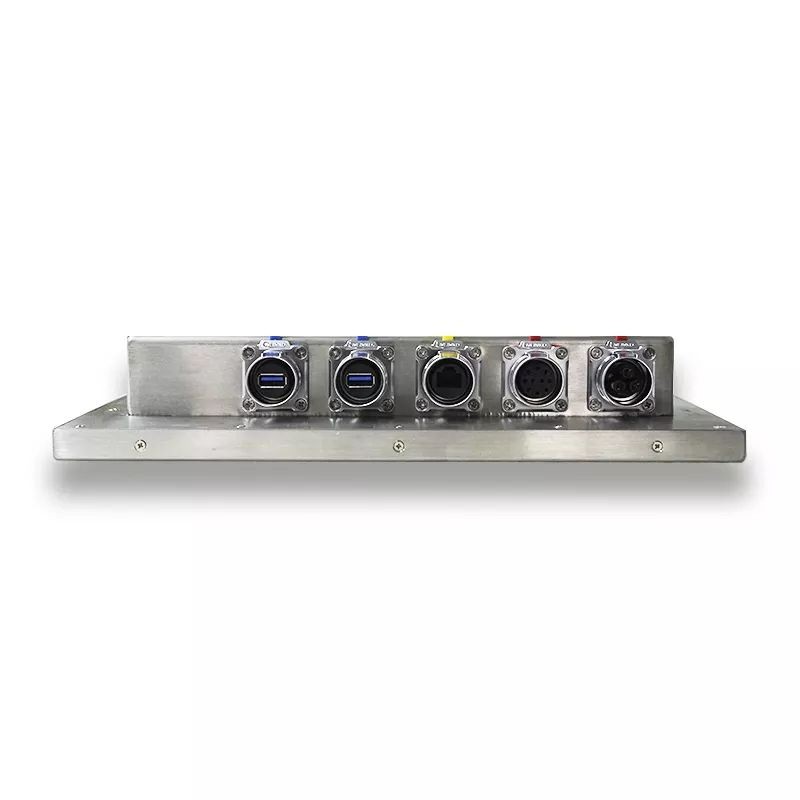

2, NEMA4/IP67/IP69K waterproof & dust-proof with Linko or M12 waterproof connectors for harsh environments.

3, SUS304/SUS316 stainless steel enclosure, more resistant to corrosion, shock and vibration.

4, Adopting EETI solution + industrial-grade touch, or 10 points PCAP touch panel, high sensitive and fast-response optional.

5, DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.

6, Screen replaceable design for repair, easy uninstallation & installation to extend service life.

7, Full sealed and fanless design, full IP65 waterproof , 1000nits,sunlight readable.

8, Auto-dimming optionalLight Sensor, Dimmer Knob, or Cables.

9, Anti-glare glass optional, Surface Treatment, AG/AF/AR Optional.

10, Optical bonding optional, glass treatment for capacitive touch.



SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

8.4”

Native Resolution

800*600

Aspect ratio

4:3

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

500:1

Response Time

8ms

Viewing Angle

75°/75°/65°/65°(R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤18W

Enclosure

Material

Full IP65/69K 304/316 stainless steel housing

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

3.3kg(Approx.)

Gross Weight

4.1kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

Vesa mounting, panel mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


8.4 inch full IP65/69K stainless steel panel pc with no touch, J1900/ADV084IPSPCNTJ1

8.4 inch full IP65/69K stainless steel panel pc with tempered glass,1900 /ADV084IPSPCTGJ1

8.4 inch full IP65/69K stainless steel panel pc with resistive touch,J1900/ADV084IPSPCRTJ1

8.4 inch full IP65/69K stainless steel panel pc with capacitive touch,J1900/ADV084IPSPCCTJ1

8.4 inch full IP65/69K stainless steel panel pc with no touch, i3/ADV084IPSPCNT01I3

8.4 inch full IP65/69K stainless steel panel pc with tempered glass,i3 /ADV084IPSPCTGI3

8.4 inch full IP65/69K stainless steel panel pc with resistive touch,i3/ADV084IPSIPSPCRTI3

8.4 inch full IP65/69K stainless steel panel pc with capacitive touch,i3/ADV084IPSPCCTI3

8.4 inch full IP65/69K stainless steel panel pc with no touch, i5/ADV084IPSPCNTI5

8.4 inch full IP65/69K stainless steel panel pc with tempered glass,i5/ADV084IPSPCTGI5

8.4 inch full IP65/69K stainless steel panel pc with resistive touch,i5/ADV084IPSPCRTI5

8.4 inch full IP65/69K stainless steel panel pc with capacitive touch,i5/ADV084IPSPCCTI5

8.4 inch full IP65/69K stainless steel panel pc with no touch, i7/ADV084IPSPCNTI7

8.4 inch full IP65/69K stainless steel panel pc with tempered glass,i7/ADV084IPSPCTGI7

8.4 inch full IP65/69K stainless steel panel pc with resistive touch,i7/ADV084IPSPCRTI7

8.4 inch full IP65/69K stainless steel panel pc with capacitive touch,i7/ADV084IPSPCCTI7
