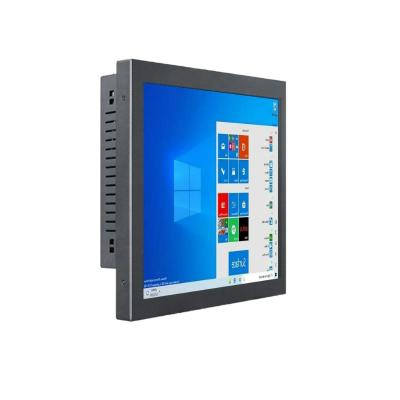

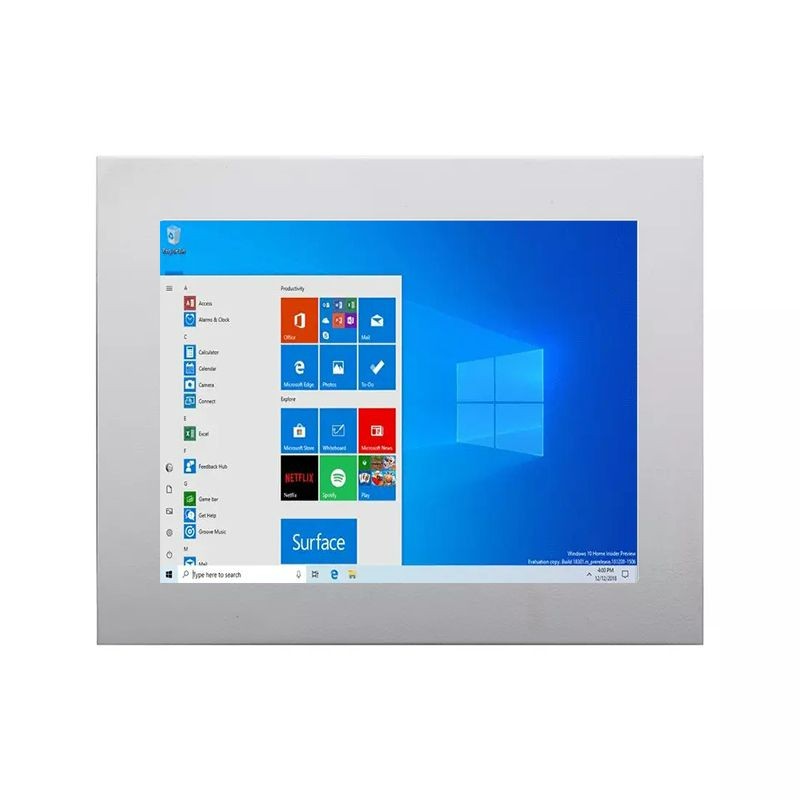

8.4 inch industrial chassis panel pc

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：8.4"
Brightness：250nits
Touch Type：Capacitive
IP grade：IP65 front

OVERVIEW

Advanvision industrial chassis panel PCs are cost-effective panel PCs, which have rugged galvanized plate housing, simple and generous. Chassis all in one panel PCs are mountable in various ways, It is most commonly mounted on the machine or wall via the metal VESA mounting bracket, or mounted on the desktop via the desktop mounting bracket. The key features of the chassis touch computers are robustness, reliability and long-term deliverability combined with reasonable prices. The industrial chassis computers own high-quality mechanics which simplifies integration in industrial applications as well as in POI and POS. They are equipped with efficient, fanless industrial mainboards (processor / CPU Intel® Celeron® J1900/J6412 or Core I3/I5/I7 optional). CAN-BUS or 8 digital I/Os are available in addition to the standard USB, RS232, LAN interfaces.

FEATURES

1, 8.4inch industrial grade LCD panels with 800*600 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance motherboard, 7x24 continuous operation.

4, Support wall mounting, embedded mounting, desk stand mounting, VESA mounting etc.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Customized integrated Rugged Metal Enclosure with customized dimensions with excellent heat dissipation.

7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8, Phoenix terminal 9-36V wide voltage input optional.

9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

10,IP65 front, WIFI, Bluetooth optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	8.4”
Native Resolution	800*600
Aspect ratio	4:3
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	8ms
Viewing Angle	75°/75°/65°/65°(R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤18W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.6kg(Approx.)
Gross Weight	3.1kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
8.4 inch chassis panel pc with no touch, J1900/ADV084CPCNTJ1
8.4 inch chassis panel pc with tempered glass,1900 /ADV084CPCTGJ1
8.4 inch chassis panel pc with resistive touch,J1900/ADV084CPCRTJ1
8.4 inch chassis panel pc with capacitive touch,J1900/ADV084CPCCTJ1
8.4 inch chassis panel pc with no touch, i3/ADV084CPCNT01I3
8.4 inch chassis panel pc with tempered glass,i3 /ADV084CPCTGI3
8.4 inch chassis panel pc with resistive touch,i3/ADV084CPCRTI3
8.4 inch chassis panel pc with capacitive touch,i3/ADV084CPCCTI3
8.4 inch chassis panel pc with no touch, i5/ADV084CPCNTI5
8.4 inch chassis panel pc with tempered glass,i5/ADV084CPCTGI5
8.4 inch chassis panel pc with resistive touch,i5/ADV084CPCRTI5
8.4 inch chassis panel pc with capacitive touch,i5/ADV084CPCCTI5
8.4 inch chassis panel pc with no touch, i7/ADV084C CNTI7
8.4 inch chassis panel pc with tempered glass,i7/ADV084CPCTGI7
8.4 inch chassis panel pc with resistive touch,i7/ADV084CPCRTI7
8.4 inch chassis panel pc with capacitive touch,i7/ADV084CPCCTI7
