8 inch panel mount panel pc
OVERVIEW

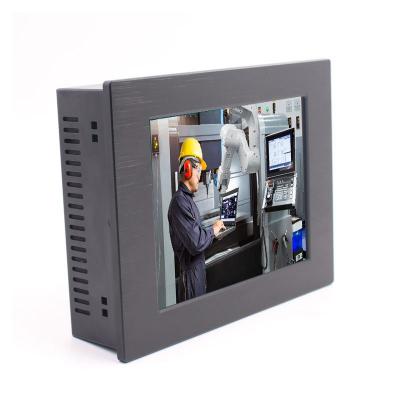

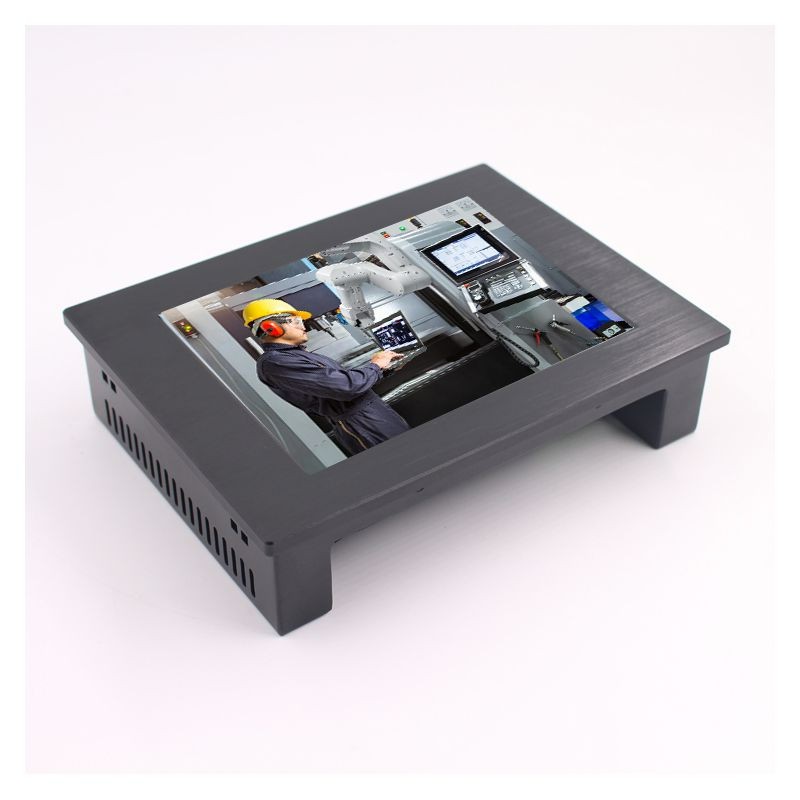

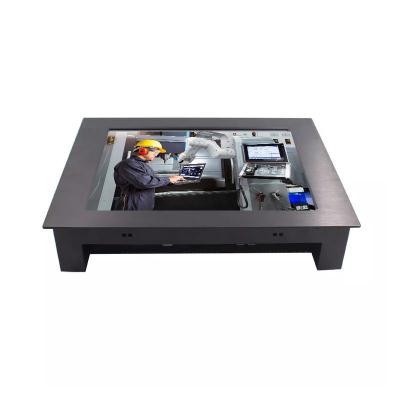

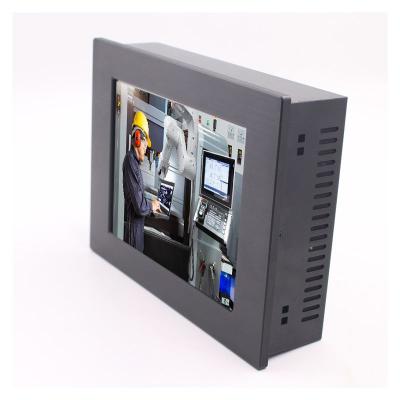

Advanvision’s panel mount panel PCs are have a robust, easy-to-clean user interface. We provide all panel mount front panels are IP65-protected, i.e. absolutely dust-tight, and protected against the ingress of water jets from any angle. The screens of a panel mount PCs are hermetically sealed to the frame. The panel mount touch computer consisting of screen and computer is inserted precisely into the cutout of a mounting wall from the front and screwed on from the rear. Depending on the application, we can provide different versions for panel mount panel PCs. They are the front glass explosion-proof version, resistive touch version, capacitive touch version, infrared touch version. As for the front panel of the panel mount touch PCs, we can provide different material versions for customers to choose, usually there are brushed aluminum panel, ordinary economic 3mm galvanized panel, brushed stainless steel panel. For food, chemical and pharmaceutical industries with high hygiene standards of clean intensive industries, using stainless steel panel mount PC is the most ideal choice, which can prevent hot water from entering during high pressure or steam jet cleaning.
FEATURES
1, 8inch industrial grade LCD panels with 800*600 or 1024*768 resolution, wide viewing angle.
2, Resistive or capacitive touch screen, IR touch screen optional.
3, High performance motherboard, 7x24 continuous operation.
4, Support panel mounting, desk stand mounting, VESA mounting etc.
5, 1000-1500nits sunlight readable LCD optional for outdoor use.
6, Customized integrated rugged metal enclosure with elegant aluminum brushed front panel, brushed stainless steel front panel optional.
7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8, Phoenix terminal 9-36V wide voltage input optional.
9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.
10, IP65 front, WIFI, Bluetooth optional.
SPECIFICATION
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
CPU Optional | Intel® Celeron 3825U,J4105 ,Core i3/i5/i7 |
Chipset | Intel NM10 Express |
Memory | 4G DDR3 (2G, 8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G, 128GB, 256GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI 4G Optional |

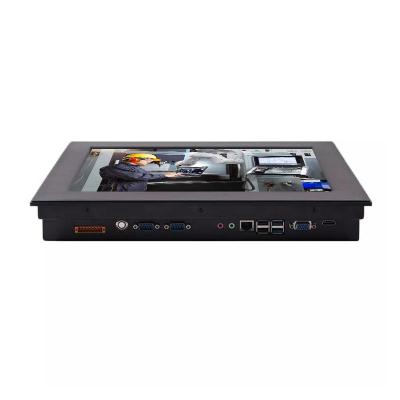

I/O Interface | 2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485) |
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD Panel | |
Panel size | 8” |
Native Resolution | 800*600 or 1024*768 |
Aspect ratio | 4:3 |
Brightness | 250 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 500:1 |
Response Time | 10ms |
Viewing Angle | 70°/70°/60°/60° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch Response Time | 2ms |
Working Life | >50 million times |
Touch Options | (5 wires restive touch,IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working Voltage | DC 12V |
Power Consumption | ≤18W |
Enclosure | |
Material | Aluminium alloy bezel+High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA Mounting | 75×75mm/100×100mm |
IP Grade | No |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative Humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net Weight | 2.8kg(Approx.) |
Gross Weight | 3.4kg(Approx.) |
Accessories | Power adapter, embedded screws, user manual, warranty card |
Other | |
Mounting | panel mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
8 inch panel mount panel pc with no touch, J1900/ADV08PMPCNTJ1 | |
8 inch panel mount panel pc with tempered glass,1900 /ADV08PMPCTGJ1 | |
8 inch panel mount panel pc with resistive touch,J1900/ADV08PMPCRTJ1 | |
8 inch panel mount panel pc with capacitive touch,J1900/ADV08PMPCCTJ1 | |
8 inch panel mount panel pc with no touch, i3/ADV08PMPCNT01I3 | |
8 inch panel mount panel pc with tempered glass,i3 /ADV08PMPCTGI3 | |
8 inch panel mount panel pc with resistive touch,i3/ADV08PMPCRTI3 | |
8 inch panel mount panel pc with capacitive touch,i3/ADV08PMPCCTI3 | |
8 inch panel mount panel pc with no touch, i5/ADV08PMPCNTI5 | |
8 inch panel mount panel pc with tempered glass,i5/ADV08PMPCTGI5 | |
8 inch panel mount panel pc with resistive touch,i5/ADV08PMPCRTI5 | |
8 inch panel mount panel pc with capacitive touch,i5/ADV08PMPCCTI5 | |
8 inch panel mount panel pc with no touch, i7/ADV08PMPCNTI7 | |
8 inch panel mount panel pc with tempered glass,i7/ADV08PMPCTGI7 | |
8 inch panel mount panel pc with resistive touch,i7/ADV08PMPCRTI7 | |
8 inch panel mount panel pc with capacitive touch,i7/ADV08PMPCCTI7 | |
