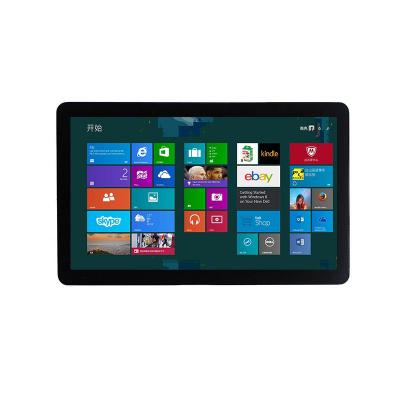

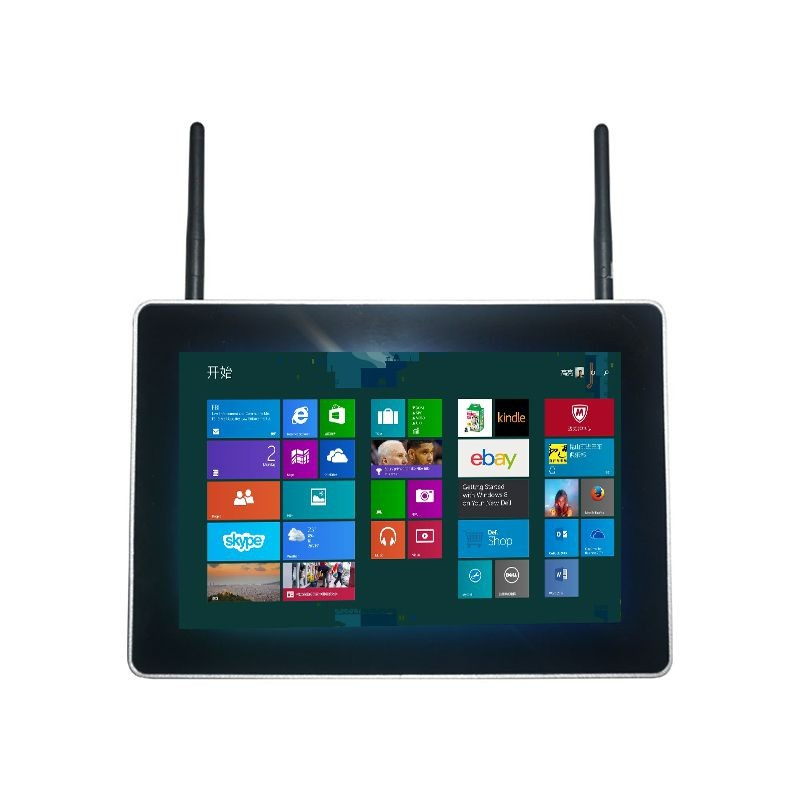

8 inch zero bezel pcap touch computer

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：8"
Brightness：250nits
Touch Type：Capacitive
IP grade：IP65 front

OVERVIEW

Advanvision’s zero bezel true flat pcap touch panel PCs own a seamless zero-bezel and edge-to-edge glass design with projected capacitive multi touch technology. The zero bezel true flat industrial touch computers featuring a high quality and reliable touch panel with excellent display capabilities give high performance into the smallest package. The highly-sensitive PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers. Fanless and wide temperature ranges allow for seamless application deployment. The zero bezel multi-touch industrial all in one PCs can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments. Those zero bezel capacitive touch industrial panel PCs are designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.

FEATURES

1, 8inch industrial grade LCD panels with 800*600 or 1024*768 resolution, wide viewing angle.

2, Zero-bezel and edge-to-edge glass design with projected capacitive multi touchscreen.

3, Support 7/24 operation in harsh environments.

4, Front IP65 for protection against water and dust

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Various mounting solutions, Yoke mount and VESA mount, brackets mount

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, WIFI, Bluetooth optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	8”
Native Resolution	800600 or 1024768
Aspect ratio	4:3
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	10ms
Viewing Angle	70°/70°/60°/60° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤18W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.5kg(Approx.)
Gross Weight	2.9kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
8 inch zero bezel panel pc with tempered glass,1900 /ADV08ZBPCTGJ1
8 inch zero bezel panel pc with capacitive touch,J1900/ADV08ZBPCCTJ1
8 inch zero bezel panel pc with tempered glass,i3 /ADV08ZBPCTGI3
8 inch zero bezel panel pc with capacitive touch,i3/ADV08ZBPCCTI3
8 inch zero bezel panel pc with tempered glass,i5/ADV08ZBPCTGI5
8 inch zero bezel panel pc with capacitive touch,i5/ADV08ZBPCCTI5
8 inch zero bezel panel pc with tempered glass,i7/ADV08ZBPCTGI7
8 inch zero bezel panel pc with capacitive touch,i7/ADV08ZBPCCTI7
