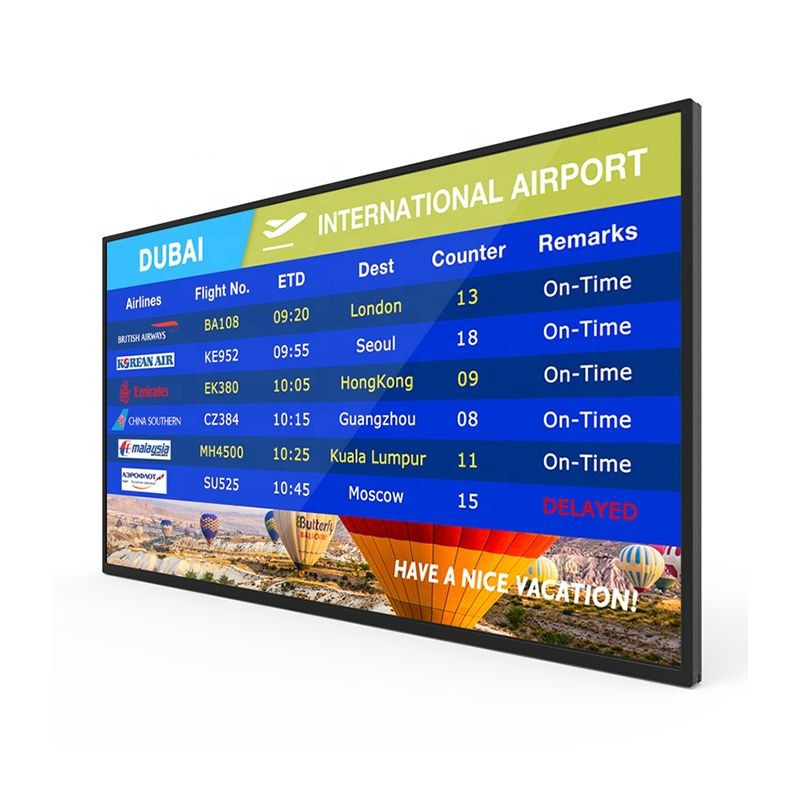

86 inch wall mount advisement player

Panel size: 86"
Brightness: 700nits
IP grade: No IP Rating
Function: advertisement player
Application: Indoor
Material: Metal Case,toughened Glass Panel

FEATURES

1. Aluminum frame up to only 50mm thickness,with cold roll steel sheet back cover .

2. 4-6 mm toughened glass in the surface for vandal proof.

3. Stand-alone / android / windows version optional.

4. High performance motherboard, 7*24 continuous operation.

5. Support multiple split screen remote operation (option:android/windows/stand-alone).

6. High brightness optional (1500~3000nit).

7. FHD, ultra high definition UHD, 4K different resolution are optional, grade A, LED Backlight, different screen diagonal.

8. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

9. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

10.Rich size available: 10.1"to 86", support OEM / ODM.

SPECIFICATION

LCD Panel
Panel size	86”
Native resolution	19201080 with 38402160 optional
Aspect ratio	16:9
Active Area(mm)	1877.2(W)*1059(H)
Brightness	700 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	3000:1
Response Time	6.5ms
Viewing angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Optional version
Standalone Digital Signage Version	Support picture,music and video to 1080P Support SD/HDMI/USB inputs Support SD card plug and play automatically Usb updated function:update documents by usb drive to sd card Support connencting with media player box/PC by HDMI input Playlist function:auto play the designated file at the specific date Timer function:5 groups timers to turn on/off at the designated time Slideshow functions to play music and pictures at the same time Portrait/landscape display mode Scrolling text with different color and effect
Android Network Display Version	Andriod 5.1/7.1 operating system optional RK3188/RK3288/RK3399 optional IGB/2GB/4GB RAM(DDR3)optional 8GB/16GB/32GB/64GB flash optional 3G(optional)/WLAN/WIFI network connection 802.11B/G/N Internal Wifi Portrait/landscape display mode 1080P display output Remote management software (CMS)optional
All-in-one Windows Display Version	CPU: Intel Celeron Precessor J1900/Intel Core processor I3/I5/I7 Chipset:1037U+NM70/Haswell-U System memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD Input connectors: VGA/HDMI/USB/RJ45/Audio Operating system: Windows 7/8/10,Linux Preinstall Intel OS service optional
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Material	Aluminium alloy face frame,high strength cold rolled steel back case
Color/Dimension	Black, white, Silver , color and dimensions are can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating,IP65 front optional
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	130kg(Approx.)
Gross weight	220kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable
Other
Mounting	VESA mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
86 inch close frame wall mount standalone digital signage/ADV86CWSADTG01
86 inch close frame wall mount android network display/ADV86CWAADTG0X
86 inch close frame wall mount all-in-one windows display /ADV86CWWADTG0X
86 inch iphone design wall mount standalone digital signage/ADV86IWSADTG01
86 inch iphone design wall mount android network display/ADV86IWAADTG0X
86 inch iphone design wall mount all-in-one windows display /ADV86IWWADTG0X
