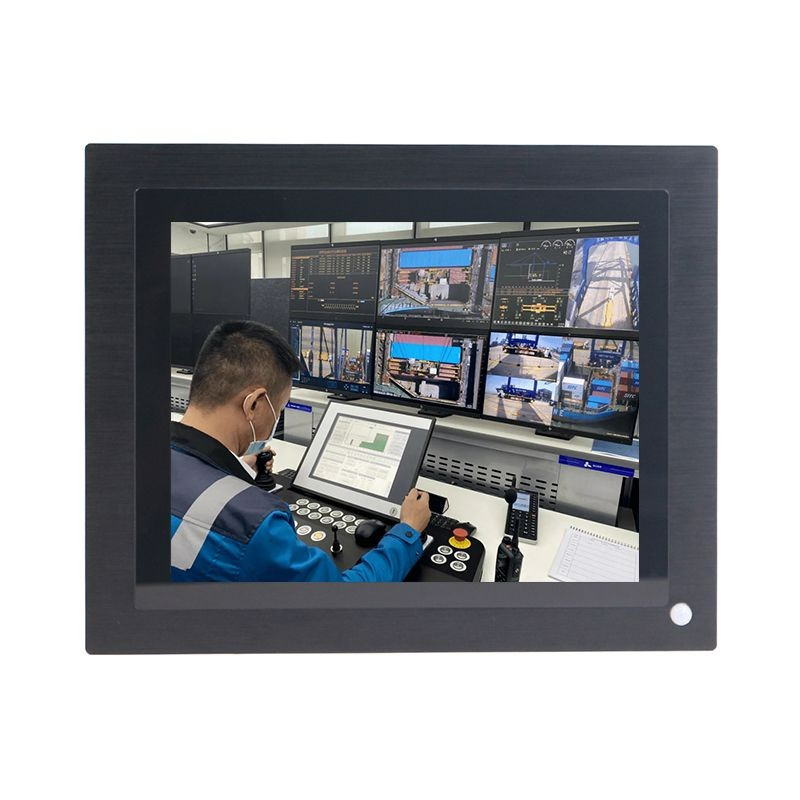

9.7 inch flat bezel panel mount lcd monitor

Panel size：9.7"
Resolution：1024*768
Surface Treatment：PCAP touch
Interface：HDMI/DVI/VGA
Brightness：800nits
Touch Type：Capacitive
IP grade：No IP Rating

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Easy-to-install embedded/panel mounting with clamps.

5. 1000-1500 nits sunlight readable optional.

6. Customized aluminum front bezel,IP65/NEMA 4X front water proof.

7. Ture flat surface, easy to clean.

8. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9. VGA,HDMI,DVI input.

10. External 100/240 auto-switch AC power adapter

SPECIFICATION

LCD Panel
Panel size	9.7”
Native resolution	1024*768
Aspect ratio	4:3
Active Area(mm)	196.608(W) x 147.456(H)
Brightness	800 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	3s
Viewing angle	80°/80°/80°/80° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch,IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	1×HDMI
Audio in/out,DP	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10 ,Linux, Mac OS X,Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤10W
Enclosure
Material	Aluminium alloy front panel,high strength cold rolled steel back case
Color/Dimension	Black, white, Silver , color and dimensions are can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	2.3kg(Approx.)
Gross weight	3.5kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws
Other
Mounting	embedded mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
9.7 inch flat bezel panel mount LCD monitor no touch/ADV097FPMNT01
9.7 inch flat bezel panel mount LCD monitor with tempered glass /ADV097FPMTG01
9.7 inch flat bezel panel mount LCD monitor with resistive touch/ADV097FPMRT01
9.7 inch flat bezel panel mount LCD monitor with capacitive touch/ADV097FPMCT01
