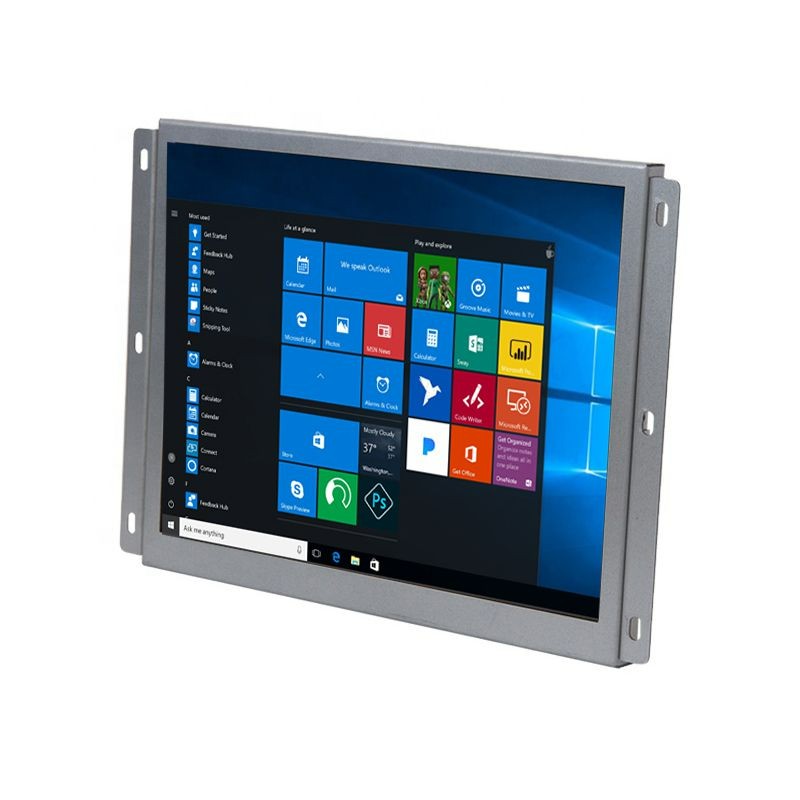

9.7 inch industrial chassis mount panel pc

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：9.7"
Brightness：800nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision industrial chassis mount panel PCs is a cost-effective and budget-priced all in one industrial all in one computer series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and Self-service kiosk applications. The rugged all-steel housing provides the durability required in demanding industrial environments. The flexible mounting brackets around the metal chassis allow them to be flexibly and easily embedded in the interior of various equipment and machines, and keep the machine and equipment as a whole simple and beautiful. Modularize mechanical design provides flexible product configuration and easy maintenance. We provide the chassis mount computers with industrial/commercial-grade LCD panels optional, and also with PCAP touch screen and resistive touch, IR touch, Saw touch optional. The front IP65 design is very realistic for them, while we can also provide them with 1000nis to 1500nits high brightness LCD panels so that they can be used in outdoor or semi-outdoor environments.

FEATURES

1, Rugged all-steel enclosure with flexible mounting brackets around the metal chassis.

2,Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional

3, LED backlight energy efficient, low power consumption LCD panel inside.

3, High environmental performance and reliability.

5, Anti-reflective protective glass optional.

6, Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F).

7, Phoenix terminal 9-36V wide voltage input optional.

8, 5 Wired Resistive touch/ IR/ PCAP Touch Screen/SAW (USB Default/ RS232 per request controller).

9, Optional High Brightness 1000nits-1500nits F or Semi outdoor application.

10, High performance motherboard, 7x24 continuous operation.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	9.7”
Native Resolution	1024*768
Aspect ratio	4:3
Brightness	800 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	3s
Viewing Angle	80°/80°/80°/80° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤25W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	2.8kg(Approx.)
Gross Weight	3.5kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	chassis mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
9.7 inch chassis mount panel pc with no touch, J1900/ADV097CMPCNTJ1
9.7 inch chassis mount panel pc with tempered glass,1900 /ADV097CMPCTGJ1
9.7 inch chassis mount panel pc with resistive touch,J1900/ADV097CMPCRTJ1
9.7 inch chassis mount panel pc with capacitive touch,J1900/ADV097CMPCCTJ1
9.7 inch chassis mount panel pc with no touch, i3/ADV097CMPCNT01I3
9.7 inch chassis mount panel pc with tempered glass,i3 /ADV097CMPCTGI3
9.7 inch chassis mount panel pc with resistive touch,i3/ADV097CMPCRTI3
9.7 inch chassis mount panel pc with capacitive touch,i3/ADV097CMPCCTI3
9.7 inch chassis mount panel pc with no touch, i5/ADV097CMPCNTI5
9.7 inch chassis mount panel pc with tempered glass,i5/ADV097CMPCTGI5
9.7 inch chassis mount panel pc with resistive touch,i5/ADV097CMPCRTI5
9.7 inch chassis mount panel pc with capacitive touch,i5/ADV097CMPCCTI5
9.7 inch chassis mount panel pc with no touch, i7/ADV097CMPCNTI7
9.7 inch chassis mount panel pc with tempered glass,i7/ADV097CMPCTGI7
9.7 inch chassis mount panel pc with resistive touch,i7/ADV097CMPCRTI7
9.7 inch chassis mount panel pc with capacitive touch,i7/ADV097CMPCCTI7
