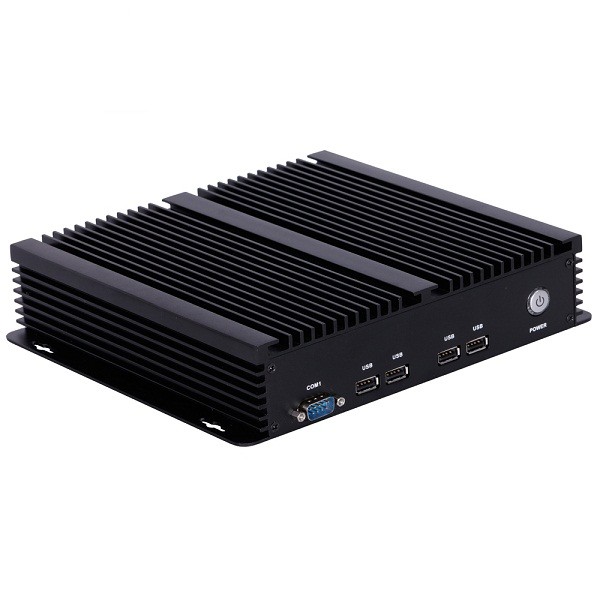

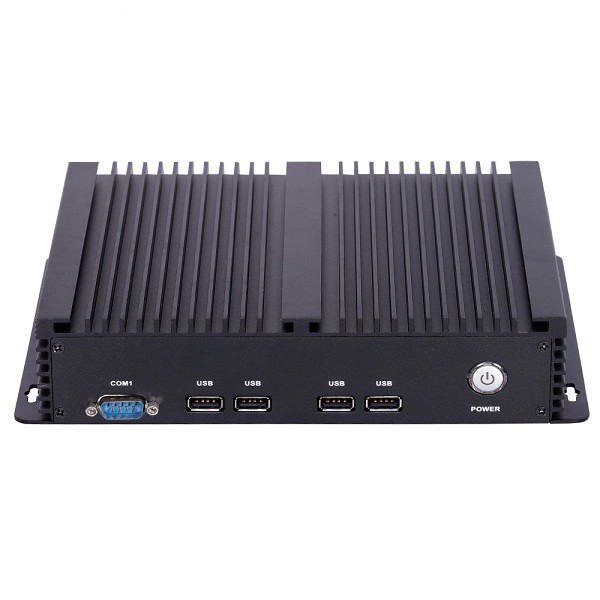

Fanless Embedded Industrial Mini PC

Integrated Intel   Processor

I3-3217U CPU;

I5-3317U CPU;

I7-3517U CPU;

J1800 CPU;

J1900 CPU;

J2900 CPU;

I3-4005U,I3-4010U,I3-4025U,I3-4030U,I5-4200U,I5-4210U,I7-4500U,I7-4510U   CPU;

I3-5005U,I5-5200U,I5-5250U,I7-5500U CPU;

3855U,3955U,I3-6100U,I5-6200U,I7-6500U CPU;

3865U,3965U,I3-7100U,I5-7200U,I5-7300U,I7-7500U   CPU;

J3355 CPU;

J3455 CPU;

N4200 CPU

Chipset

HM76 chipset;

Integrated SOC chipset on CPU.

Memory

Integrated DDR3 2GB/4GB RAM

Integrated DDR4 4GB/8GB RAM

1*DDR3 memory channel,up to 8GB RAM

2*DDR3 memory channels,up to 16GB RAM

Hard Drive   Capacity

SATA2.0 / MSATA3.0 /MSATA.20      32GB to 250G GB

Graphics

Integrated Intel   HD Graphics on CPU,support 4K,1080P,H264,3D play.

Audio

1*Realtek ALC662   HD digital audio decoder,support Line-out,Mic-in,SPDIF,Speaker.

BIOS

AMI BIOS;Support read only,power on,timing   switch,remote switch,intelligently identify devices.

Network card

1*Realtek 8111E/ 8111F Gigabit Network card;

Support 1 or 2 RJ45 LAN ports,wake on LAN,PXE   boot.

Watch dog

Watch dog   programming, support hardware reset function (256 levels, 0~255 seconds).

System Monitor

Support CPU   temperature monitor, fan speed,system temperature.

Wireless Network

WIFI

4G Optional

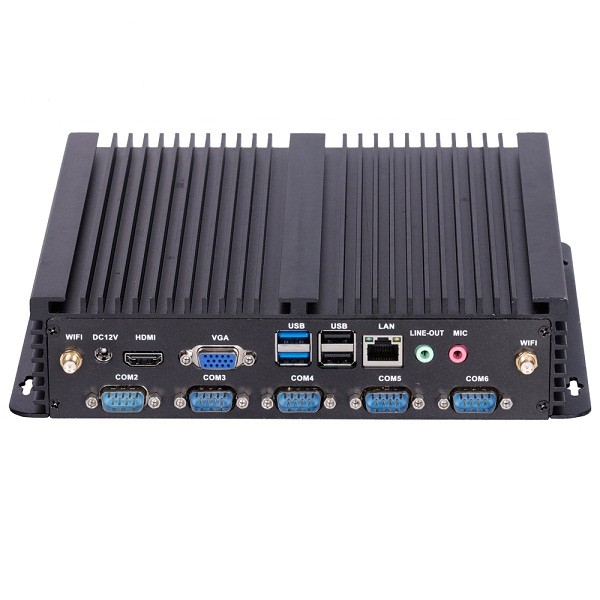

I/O Interface Optional

2*COM, 1*LAN, 6*USB,   1*LPT

2*COM, 1*LAN, 8*USB

6*COM, 1*LAN, 6*USB,   1*LPT

6*COM, 2*LAN, 4*USB,   1*LPT

6*COM, 1*LAN, 8*USB

6*COM, 2*LAN, 6*USB

9*COM, 1*LAN, 6*USB,   1*LPT

9*COM, 2*LAN, 4*USB,   1*LPT

10*COM, 1*LAN, 10*USB

10*COM, 2*LAN, 8*USB

Expansion Bus

1*Mini-PCIE slot   (M218F,M219F,M229F,QM9400,QM9500,M335F,M345F,M420F,M818SE);

2*Mini-PCIE slots   (1037F,I3HGP,I5HGP,I7HGP,QM9600,QM9700,M618SE).

Display

1*HDMI 1.4 port;

1*DB15 VGA port;

1*LVDS pin;

1*EDP pin.

Operation System

Windows XP, Windows 7, Windows 8.1, Windows   10,Linux

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working Voltage

DC 12V

Power Consumption

≤15-25W

Enclosure

Material

Aluminum alloy

Case size

210*200*50mm(L*W*H)

Color

Black, color can   be customized

IP Grade

No

Operating Environment

Temperature   Range

operating: -20   to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C,   non-condensing

Vibration

5-500 Hz, 0.026   G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Net Weight

3 kg(Approx.)

Gross Weight

3.3kg(Approx.)

Accessories

Power adapter,   user manual, warranty card

Other

Installation

wall hanging,   embedded.

desktop

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information

Industrial   Fanless Mini PC, J1800/ADVMNPC-J1900

Industrial   Fanless Mini PC, J1900/ADVMNPC-J1800

Industrial Fanless Mini PC, J2900/ADVMNPC-J2900

Industrial Fanless Mini PC, I3/ADVMNPC-I3

Industrial Fanless Mini PC, I5/ADVMNPC-I5

Industrial Fanless Mini PC, I7/ADVMNPC-I7

Industrial Fanless Mini PC, 3855U/ADVMNPC-3855U

Industrial Fanless Mini PC, 3955U/ADVMNPC-3955U

Industrial Fanless Mini PC, 3965U/ADVMNPC-3965U

Industrial Fanless Mini PC, 3865U/ADVMNPC-3865U

Industrial Fanless Mini PC, J3355/ADVMNPC-J3355

Industrial Fanless Mini PC, J3455/ADVMNPC-J3455
