Mounting Solution for Industrial Panel PCs and Industrial Monitors

Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly. Mounting solution can also guide you to find the product that really fit your needs. Currently Advanvision offer wide range of different mechanical design industrial monitors and industrial Panel PCs support Panel Mount (embedded mount), Open frame mount, Rear Mount, Vear Mount, VESA Mount, Desktop Mount, Wall Mount etc. Now, let’s take a look of various mounting methods:




 Panel Mount Solution is the mounting method that mounts product into an opening of a customer’s fixture (mounting wall) from the front and secured from the rear. All user controls are located on the rear of the mechanism, making the panel mount displays a good choice for applications requiring a display with no external or exposed controls such as gaming/casino system, ATM, and kiosk.


Installation Steps as below:

1. Put panel mount product in the cut out from the front side of the customer’s fixture, with the sides of the front bezel shown on the outside.

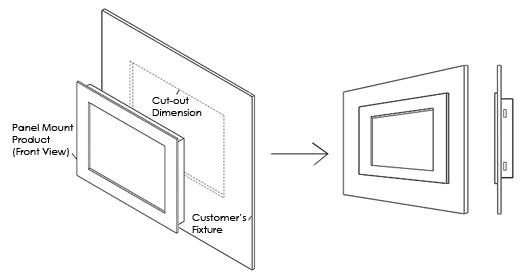

panel mount 1.jpg

2. Use provided mounting kits to attach and tighten the panel mount product to the customer’s fixture as figure shown above.

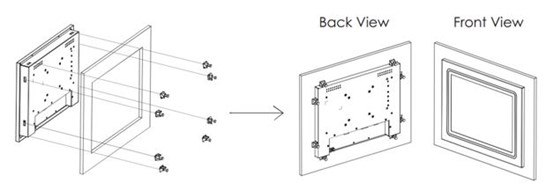

panel mount 2.jpg

Note:Front IP65 rated Panel PCs/ monitors has a special rubber on the rear of front bezel to seal front bezel and customer’s fixture to prevent water and dust.


 Open Frame Mount Solution is the mounting method that mounts products on customized front bezel. Open frame mounting might be done from rear or front sides. Acnodes offers open frame Panel PCs and display monitors, they are specially designed units with bezel-less display which allows customers to design front bezel according to their application requirements.


Installation Steps as below:

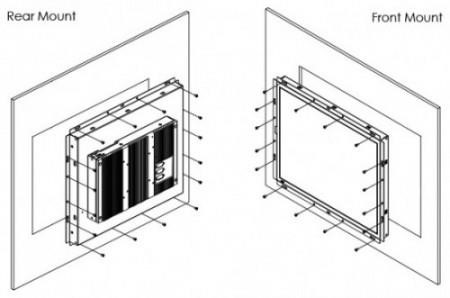

1, Put open frame mount product in the cut-out from the front or rear side of the customer’s fixture.

2, Fasten with screw from the front or the rear of customer’s fixture.

open frame mount 1.jpg

Noted: The length of screws depends on the thickness of customer’s fixture.


 Rear Mounting solution is the mounting method that mounts products from the rear and secured by bracket on left and right sides or top and bottom sides. They are widely used when there is a safety consideration, for example, ATMs.


Installation Steps as below:

1.Screw the brackets on both sides of the rear mount product.

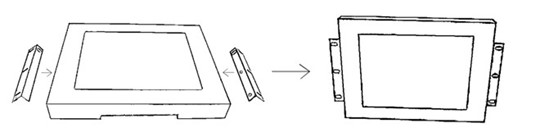

rear mount 1.jpg

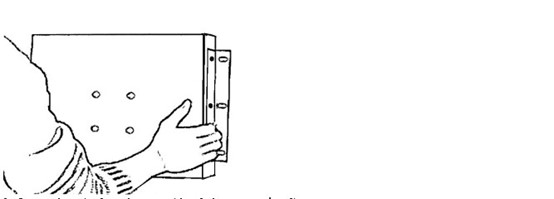

2.Secure the unit from the rear side of the customer’s fixture.

rear mount 2.jpg

3. Make sure your screws are tight and on the right position, so the outer frame can be covered to ensure the safety of your display.

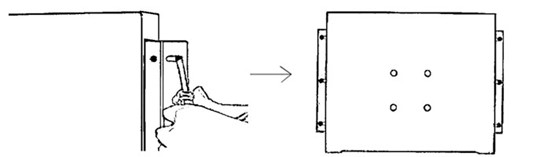

rear mount 3.jpg


 Mounting interface standard for flat displays that defined by VESA (Video Electronics Standards Association). It supports a broad range of mounting options including desktop, wall, and arm mounting applications. Most manufacturers comply with this standard by adhering to an industry wide hole pattern on the back of their displays for mounting purposes. A typical VESA hole pattern for flat panel displays can be one of the following sizes:

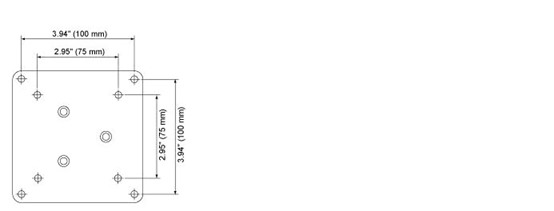

•75 mm x 75 mm (75 mm = 2.95 inches)

•100 mm x 100 mm (100mm = 3.94 inches)

Various applications utilizing VESA Mounting Interface Standard.

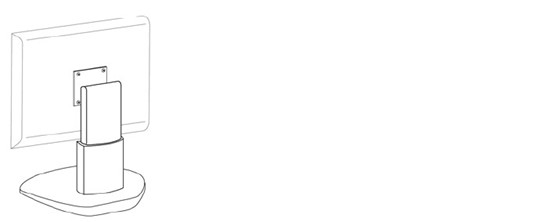

vesa mount 1.jpg

Desktop Mount

 Mounting method that mounts products on desk using desktop stand. There is traditional fixed desktop mount and also adjustable desktop mount for applications requiring display tilt, makes it easy to adjust any angle you want for best visibility. Desktop mounting is easy to set up and easy for everyone to use and adjust.

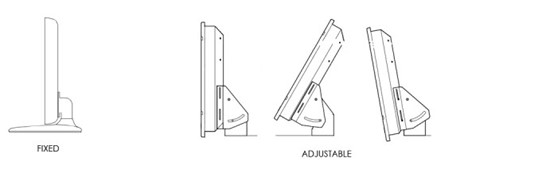

Desktop mount 1.jpg

Installation Steps as below:

Assemble the desktop stand to the chassis, and fix the screws.

Desktop mount 2.jpg

Wall Mount

 Wall Mount Solution is the mounting method that mount products on the wall which helps to save lot of floor space.


Installation Steps as below:

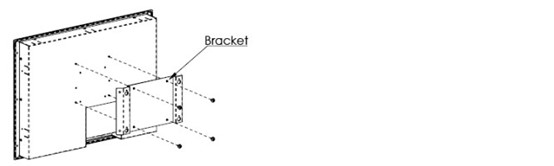

1.Mount the wall mounting bracket to the back cover of the unit.

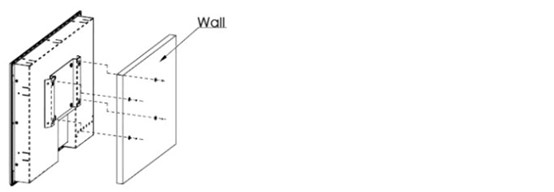

Wall mount 1.jpg

2. Mount the unit to the wall.

Wall mount 2.jpg

Cantilever mounting

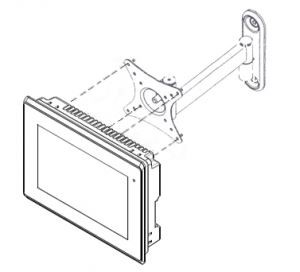

Mounting industrial panel PCs and industrial monitors using cantilever brackets allows users to tilt, rotate, and extend for maximum viewing flexibility.

Cantilever mounting 1.jpg




Installation Steps as below:

Attach the cantilever bracket to the back of the enclosure and screw them together.

Cantilever mounting 2.jpg
