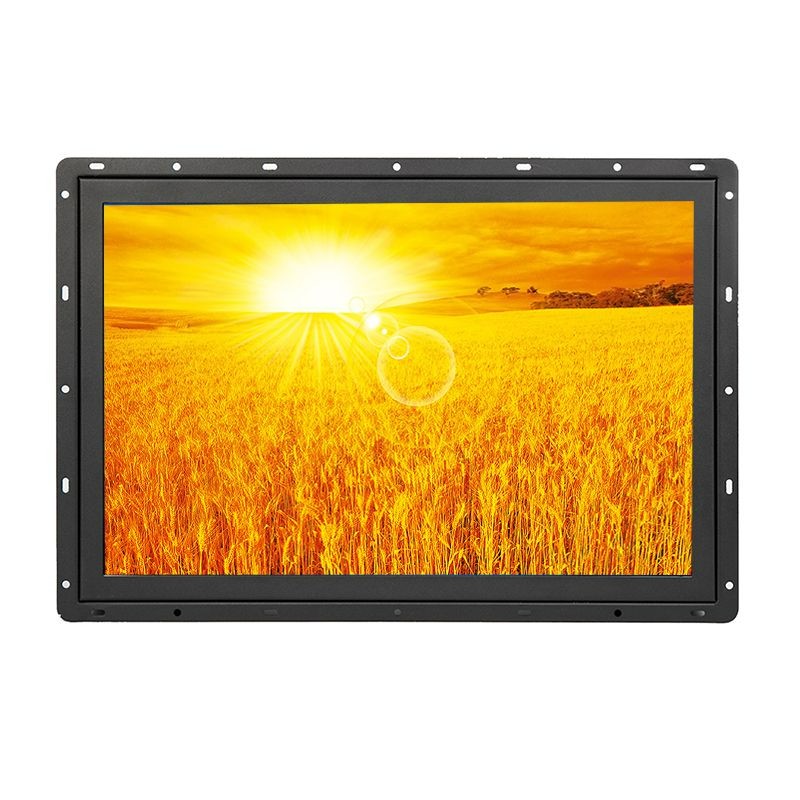

10.1 inch high brightness lcd monitor

Panel size:10.1"
Resolution:1280*800 with 1920*1200
Surface Treatment:PCAP touch
Interface:HDMI/DVI/VGA
Brightness:300nits
Touch Type:Capacitive
IP grade:IP65 Front Optional

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Support wall mounting,desk stand mouting etc.

5. 1000-1500 nits sunlight readable optional.

6. Customized integrated metal housing, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. VGA,HDMI,DVI input, DP optional.

9. External 100/240 auto-switch AC power adapter


SPECIFICATION

LCD Panel

Panel size

10.1”

Native   resolution

1280*800 with 1920*1200 optional

Aspect ratio

16:10

Active Area(mm)

221.0(W)*140.50(H)

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)

500:1

Response Time

8ms

Viewing angle

80°/80°/80°/80° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB   (RS232 optional)

Touch response   time

2ms

Working   Life

>50 million times

Touch options

(5 wires restive touch,IR touch optional)

Signal Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out,DP

optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.

Support   languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP ,   Windows /7/8/10 ,Linux, Mac OS X,Android ect.

Power Supply

External Power   Supply

AC 100 - 240V , 50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

High strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

2.1kg(Approx.)

Gross weight

2.8kg(Approx.)

Accessories

Power adapter, power cord, USB touch cable, HDMI/ VGA cable

Other


Mounting

VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


10.1 inch sunlight readable high brightness LCD monitor no touch/ADV101CLNTHB01

10.1 inch sunlight readable high brightness LCD monitor with tempered glass /ADV101CLTGHB01

10.1 inch sunlight readable high brightness LCD monitor with resistive touch/ADV101CLRTHB01

10.1 inch sunlight readable high brightness LCD monitor with capacitive touch/ADV101CLCTHB01

10.1 inch sunlight readable high brightness LCD monitor with IR touch/ADV101CLITHB01
