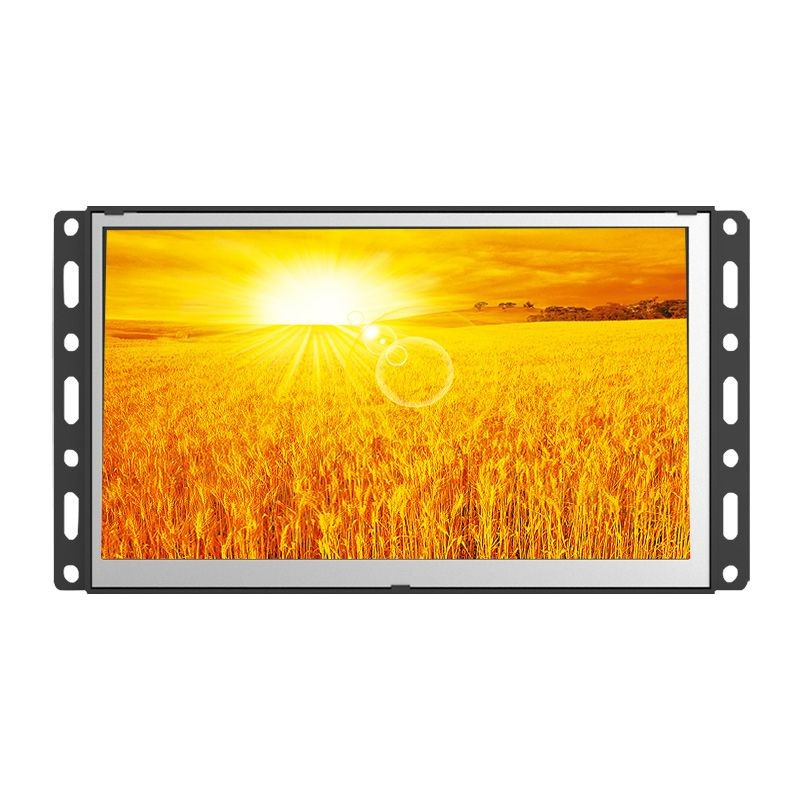

7 inch high brightness lcd monitor

Panel size:7"
Resolution:800*480 or 1024*600
Surface Treatment:PCAP touch
Interface:HDMI/DVI/VGA
Brightness:1000nits
Touch Type:Capacitive
IP grade:IP65 Front Optional

OVERVIEW

Advanvison’s high brightness sunlight readable LCD monitors are designed to produce a significantly brighter output compared to standard LCD panels. These high brightness displays allow for clear visibility in environments with abundant ambient light, ensuring information and content are easily readable to the intended audience. They are typically used in applications where enhanced visibility is required in high ambient light conditions or outdoor environments, such as outdoor signage, digital billboards, kiosks, industrial equipment displays, automotive displays, marine displays, and military applications. Advanvision’s High brightness displays utilize powerful backlighting systems to increase the overall brightness of the screen. LED (light-emitting diode) backlighting is commonly employed due to its efficiency and ability to produce intense illumination. Advanvision’s high brightness sunlight readable LCDs are engineered to achieve brightness levels that surpass regular LCD panels and they can achieve brightness ratings of 1000 nits to 5000 nits. Those displays incorporate technologies to improve visibility under direct sunlight. Optical bonding, anti-glare coatings, and high-contrast enhancement techniques are often utilized to minimize reflections and enhance readability. Those sunlight readable lcd displays tend to consume more power than standard LCDs due to the increased energy required for generating higher brightness levels. However, advancements in LED backlighting technology have led to more energy-efficient displays. When those high brightness displays intended for outdoor or rugged environments often feature enhanced durability to withstand harsh conditions. They may have reinforced glass, robust construction, and increased resistance to dust, moisture, and temperature variations.



FEATURES

1. 7 inch industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Resistive touch panel or capacitive touch screen optional, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Open frame support wall mounting,VESA mouting etc.

5. 1000-1200 nits brightness sunlight readable optional.

6. Customized integrated metal housing, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. VGA,HDMI,DVI input.

9. External 100/240 auto-switch AC power adapter


SPECIFICATION

LCD Panel

Panel size

7”

Native   resolution

800*480 or 1024*600

Aspect ratio

16:9

Active Area(mm)

152.40(H)*91.44(V)

Brightness

1000 nits

LED Life Time

≥50K hours

Contrast Ratio (Center   of screen)

500:1

Response Time

12s

Viewing angle

70°/70°/50°/70° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB (RS232 optional)

Touch response   time

2ms

Working   Life

>50 million times

Touch options

(5 wires restive touch,IR touch optional)

Signal Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out,DP

Optional

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position,  language select etc.

Support   languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP ,   Windows /7/8/10 ,Linux, Mac OS X,Android ect.

Power Supply

External Power   Supply

AC 100 - 240V ,   50-60Hz

Working voltage

DC 12V

Power   consumption

≤10W

Enclosure

Material

High strength cold rolled steel back case

Color/Dimension

Black, white,   Silver , color and dimensions are can be customized

VESA mounting

75×75mm/100×100mm

IP grade

No IP rating

Operating   Environment


Temperature   Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10% to 80% ,  storage :5% to 90%

Packing Details


Net weight

1.9kg(Approx.)

Gross weight

2.4kg(Approx.)

Accessories

Power adapter, power cord, USB touch cable, HDMI/ VGA cable

Other


Mounting

VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


7 inch sunlight readable high brightness LCD monitor no touch/ADV07CLNTHB01

7 inch sunlight readable high brightness LCD monitor with tempered glass /ADV07CLTGHB01

7 inch sunlight readable high brightness LCD monitor with resistive touch/ADV07CLRTHB01

7 inch sunlight readable high brightness LCD monitor with capacitive touch/ADV07CLCTHB01
