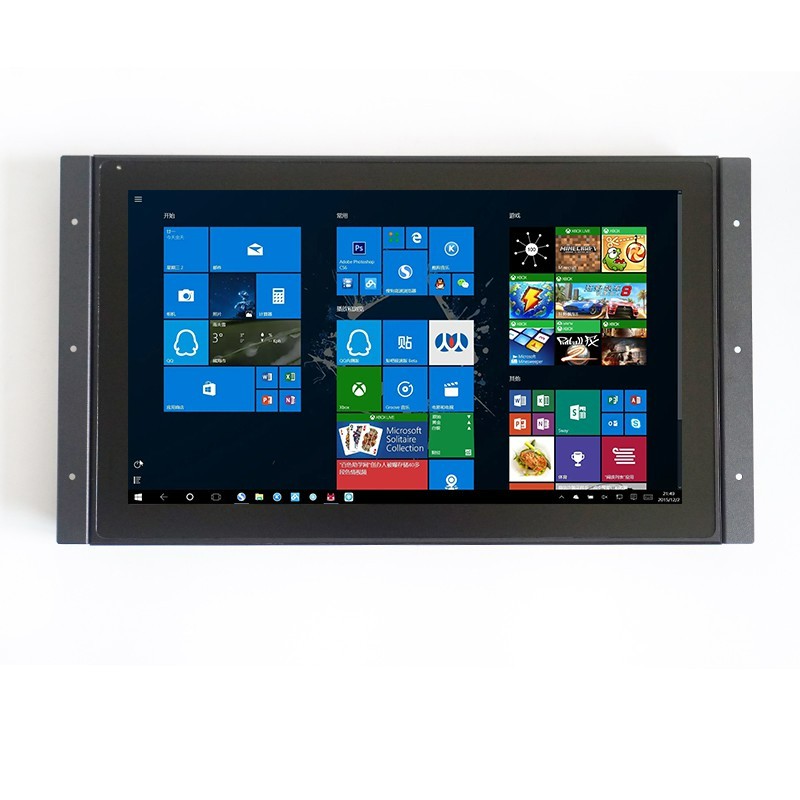

11.6 inch open frame panel pc

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：11.6"
Brightness：350nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision’s open frame panel PCs implements the central human-machine interface (HMI). Integrated in a rugged yet simple galvanized sheet housing, a high quality industrial monitor combines powerful PC components to form a thin, economical and practical open frame all in one pc unit. In the case of open frame construction, it is installed at the rear (from the rear) in cutouts of an existing front. The open frame all in one touch panel PCs are often the installation solution of choice, especially in environments where there are no high requirements for dust or water tightness. If interaction with the user is desired in addition to being used as a pure operation control, a keyboard can be integrated into the built-in level directly under the open frame industrial fanless panel PC. Alternatively, Open Frame touch panel PCs of all sizes are also available with resistive touchscreen or capacitive touchscreen which enables precise 1-finger or 10-fingers operation on the screen. The task of the panel PCs - operating and monitoring - is individually adapted for an optimal customer solution, according to requirements. With or without a touch screen, what ultimately counts for Open Frame all in one panel PC is that they can be seamlessly integrated into an industrial network and that they perform their tasks with the highest level of reliability.

FEATURES

1, Bezel-less display provides design flexibility for customers without any limitation.

2, 11.6inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

3, Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional

4, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

5, High performance motherboard, 7x24 continuous operation.

6, 1000-1500nits high brightness LCD optional for outdoor use.

7, Customized integrated rugged metal enclosure with customized dimensions with excellent heat dissipation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.

10, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	11.6”
Native Resolution	1920*1080
Aspect ratio	16:9
Brightness	350 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	800:1
Response Time	25ms
Viewing Angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤20W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	3.2kg(Approx.)
Gross Weight	3.8kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	embedded mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
11.6 inch open frame panel pc with no touch, J1900/ADV116OFPCNTJ1
11.6 inch open frame panel pc with tempered glass,1900 /ADV116OFPCTGJ1
11.6 inch open frame panel pc with resistive touch,J1900/ADV116OFPCRTJ1
11.6 inch open frame panel pc with capacitive touch,J1900/ADV116OFPCCTJ1
11.6 inch open frame panel pc with no touch, i3/ADV116OFPCNT01I3
11.6 inch open frame panel pc with tempered glass,i3 /ADV116OFPCTGI3
11.6 inch open frame panel pc with resistive touch,i3/ADV116OFPCRTI3
11.6 inch open frame panel pc with capacitive touch,i3/ADV116OFPCCTI3
11.6 inch open frame panel pc with no touch, i5/ADV116OFPCNTI5
11.6 inch open frame panel pc with tempered glass,i5/ADV116OFPCTGI5
11.6 inch open frame panel pc with resistive touch,i5/ADV116OFPCRTI5
11.6 inch open frame panel pc with capacitive touch,i5/ADV116OFPCCTI5
11.6 inch open frame panel pc with no touch, i7/ADV116OFPCNTI7
11.6 inch open frame panel pc with tempered glass,i7/ADV116OFPCTGI7
11.6 inch open frame panel pc with resistive touch,i7/ADV116OFPCRTI7
11.6 inch open frame panel pc with capacitive touch,i7/ADV116OFPCCTI7
