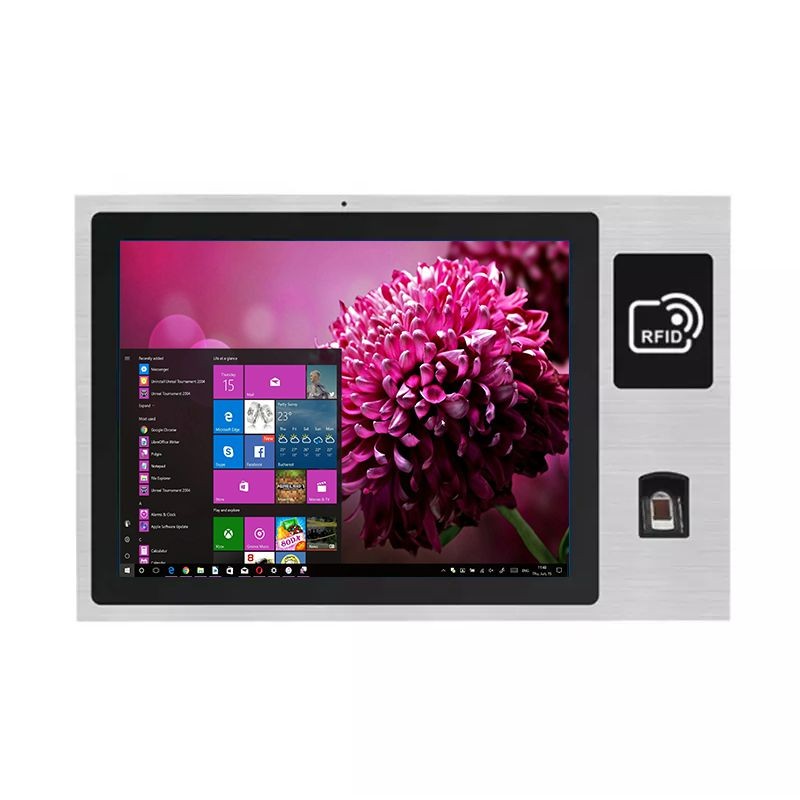

12.1 inch flat bezel panel mount panel pc

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

12.1”

Native Resolution

800*600 with   1024*768 optional

Aspect ratio

4:3

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

300:1

Response Time

10ms

Viewing Angle

80°/80°/60°/70°   (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤17W

Enclosure

Material

Aluminium alloy bezel+High strength cold rolled   steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment

Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per   axis

Packing   Details

Net Weight

5.5kg(Approx.)

Gross Weight

6.5kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other

Mounting

panel mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information

12.1 inch flat bezel panel mount panel pc with no touch, J1900/ADV121FPMPCNTJ1

12.1 inch flat bezel panel mount panel pc with tempered glass,1900 /ADV121FPMPCTGJ1

12.1 inch flat bezel panel mount panel pc with resistive touch,J1900/ADV121FPMPCRTJ1

12.1 inch flat bezel panel mount panel pc with capacitive touch,J1900/ADV121FPMPCCTJ1

12.1 inch flat bezel panel mount panel pc with no touch, i3/ADV121FPMPCNT01I3

12.1 inch flat bezel panel mount panel pc with tempered glass,i3 /ADV121FPMPCTGI3

12.1 inch flat bezel panel mount panel pc with resistive touch,i3/ADV121FPMPCRTI3

12.1 inch flat bezel panel mount panel pc with capacitive touch,i3/ADV121FPMPCCTI3

12.1 inch flat bezel panel mount panel pc with no touch, i5/ADV121FPMPCNTI5

12.1 inch flat bezel panel mount panel pc with tempered glass,i5/ADV121FPMPCTGI5

12.1 inch flat bezel panel mount panel pc with resistive touch,i5/ADV121FPMPCRTI5

12.1 inch flat bezel panel mount panel pc with capacitive touch,i5/ADV121FPMPCCTI5

12.1 inch flat bezel panel mount panel pc with no touch, i7/ADV121FPMPCNTI7

12.1 inch flat bezel panel mount panel pc with tempered glass,i7/ADV121FPMPCTGI7

12.1 inch flat bezel panel mount panel pc with resistive touch,i7/ADV121FPMPCRTI7

12.1 inch flat bezel panel mount panel pc with capacitive touch,i7/ADV121FPMPCCTI7
