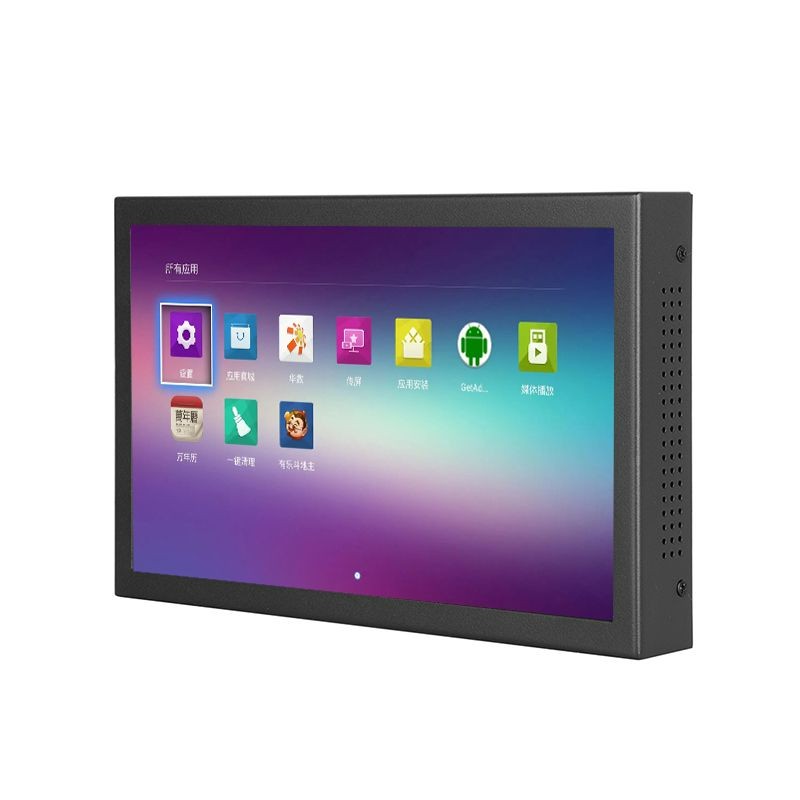

13.3 inch android touch panel pc

CPU

ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz

CPU Optional

RK3399, RK3368   Optional

GPU

Mali-T764 GPU

SDRAM

2G (4G, 8G   optional)

Flash

8G:   16G/32G/64G/128G Optional

Bluetooth

Optional

Video Decoder

4K VP8 and 4K   10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format

Supports   RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format

Support   MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Network Support

Ethernet,Wifi/bluetooth   4.0,wireless peripherals,etc

I/O Interface

1 × HDMI; 2 × USB   Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional; 1 ×   RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); Com Port optional

Operation System

Android 6.0/7.1/8.0

LCD Panel

Panel size

13.3”

Native Resolution

1920*1080

Aspect ratio

16:9

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

700:1

Response Time

16ms

Viewing Angle

89°/89°/89°/89° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤22W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment

Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details

Net Weight

4.5kg(Approx.)

Gross Weight

5.1kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other

Mounting

Vesa mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information

13.3 inch chassis android panel pc with no touch, J1900/ADV133CMAPCNTJ1

13.3 inch chassis android panel pc with tempered glass,1900 /ADV133CMAPCTGJ1

13.3 inch chassis android panel pc with resistive touch,J1900/ADV133CMAPCRTJ1

13.3 inch chassis android panel pc with capacitive touch,J1900/ADV133CMAPCCTJ1

13.3 inch chassis android panel pc with no touch, i3/ADV133CMAPCNT01I3

13.3 inch chassis android panel pc with tempered glass,i3 /ADV133CMAPCTGI3

13.3 inch chassis android panel pc with resistive touch,i3/ADV133CMAPCRTI3

13.3 inch chassis android panel pc with capacitive touch,i3/ADV133CMAPCCTI3

13.3 inch chassis android panel pc with no touch, i5/ADV133CMAPCNTI5

13.3 inch chassis android panel pc with tempered glass,i5/ADV133CMAPCTGI5

13.3 inch chassis android panel pc with resistive touch,i5/ADV133CMAPCRTI5

13.3 inch chassis android panel pc with capacitive touch,i5/ADV133CMAPCCTI5

13.3 inch chassis android panel pc with no touch, i7/ADV133CMAPCNTI7

13.3 inch chassis android panel pc with tempered glass,i7/ADV133CMAPCTGI7

13.3 inch chassis android panel pc with resistive touch,i7/ADV133CMAPCRTI7

13.3 inch chassis android panel pc with capacitive touch,i7/ADV133CMAPCCTI7
