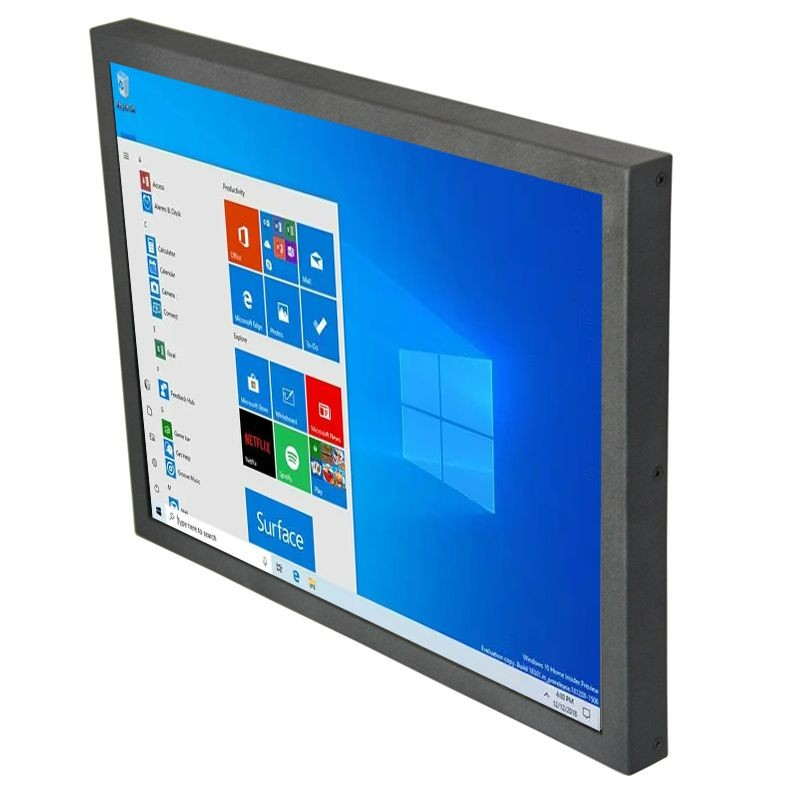

15.6 inch rugged touch panel pc
OVERVIEW
Advanvision industrial chassis panel PCs are cost-effective panel PCs, which have rugged galvanized plate housing, simple and generous. Chassis all in one panel PCs are mountable in various ways, It is most commonly mounted on the machine or wall via the metal VESA mounting bracket, or mounted on the desktop via the desktop mounting bracket. The key features of the chassis touch computers are robustness, reliability and long-term deliverability combined with reasonable prices. The industrial chassis computers own high-quality mechanics which simplifies integration in industrial applications as well as in POI and POS. They are equipped with efficient, fanless industrial mainboards (processor / CPU Intel® Celeron® J1900/J6412 or Core I3/I5/I7 optional). CAN-BUS or 8 digital I/Os are available in addition to the standard USB, RS232, LAN interfaces.
FEATURES
1, 15.6inch industrial grade LCD panels with 1366*768 or 1920*1080 resolution, wide viewing angle.
2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.
3, High performance motherboard, 7x24 continuous operation.
4, Support wall mounting, embedded mounting, desk stand mounting, VESA mounting etc.
5, 1000-1500nits sunlight readable LCD optional for outdoor use.
6, Customized integrated Rugged Metal Enclosure with customized dimensions with excellent heat dissipation.
7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8, Phoenix terminal 9-36V wide voltage input optional.
9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.
10,IP65 front, WIFI, Bluetooth optional.
SPECIFICATION
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
CPU Optional | Intel® Celeron 3825U,J4105 ,Core i3/i5/i7 |
Chipset | Intel NM10 Express |
Memory | 4G DDR3 (2G, 8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G, 128GB, 256GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI 4G Optional |
I/O Interface | 2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485) |
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD Panel | |
Panel size | 15.6” |
Native Resolution | 1366*768 with 1920*1080 optional |
Aspect ratio | 16:9 |
Brightness | 300 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 500:1 |
Response Time | 35ms |
Viewing Angle | 80°/80°/80°/80° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch Response Time | 2ms |
Working Life | >50 million times |
Touch Options | (5 wires restive touch,IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working Voltage | DC 12V |
Power Consumption | ≤25W |
Enclosure | |
Material | High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA Mounting | 75×75mm/100×100mm |
IP Grade | No |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative Humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net Weight | 5.5kg(Approx.) |
Gross Weight | 6.3kg(Approx.) |
Accessories | Power adapter, embedded screws, user manual, warranty card |
Other | |
Mounting | embedded mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
15.6 inch chassis panel pc with no touch, J1900/ADV156CPCNTJ1 | |
15.6 inch chassis panel pc with tempered glass,1900 /ADV156CPCTGJ1 | |
15.6 inch chassis panel pc with resistive touch,J1900/ADV156CPCRTJ1 | |
15.6 inch chassis panel pc with capacitive touch,J1900/ADV156CPCCTJ1 | |
15.6 inch chassis panel pc with IR touch,J1900/ADV156CPCITJ1 | |
15.6 inch chassis panel pc with no touch, i3/ADV156CPCNT01I3 | |
15.6 inch chassis panel pc with tempered glass,i3 /ADV156CPCTGI3 | |
15.6 inch chassis panel pc with resistive touch,i3/ADV156CPCRTI3 | |
15.6 inch chassis panel pc with capacitive touch,i3/ADV156CPCCTI3 | |
15.6 inch chassis panel pc with IR touch,i3/ADV156CPCITI3 | |
15.6 inch chassis panel pc with no touch, i5/ADV156CPCNTI5 | |
15.6 inch chassis panel pc with tempered glass,i5/ADV156CCPCTGI5 | |
15.6 inch chassis panel pc with resistive touch,i5/ADV156CPCRTI5 | |
15.6 inch chassis panel pc with capacitive touch,i5/ADV156CPCCTI5 | |
15.6 inch chassis panel pc with IR touch,i5/ADV156CPCITI5 | |
15.6 inch chassis panel pc with no touch, i7/ADV156CPCNTI7 | |
15.6 inch chassis panel pc with tempered glass,i7/ADV156CPCTGI7 | |
15.6 inch chassis panel pc with resistive touch,i7/ADV156CPCRTI7 | |
15.6 inch chassis panel pc with capacitive touch,i7/ADV156CPCCTI7 | |
15.6 inch chassis panel pc with IR touch,i7/ADV156CPCITI7 | |
