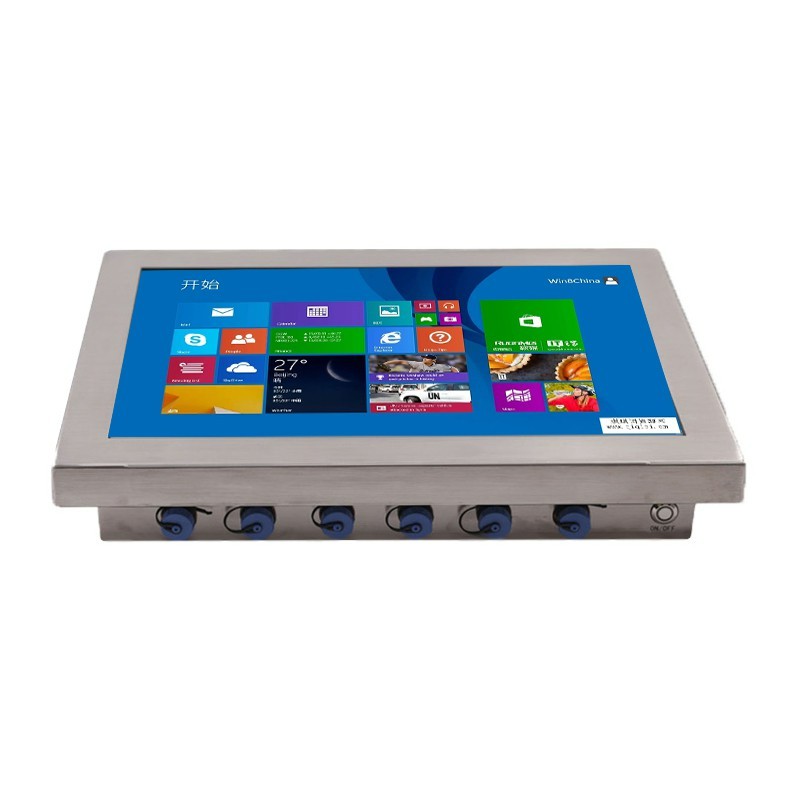

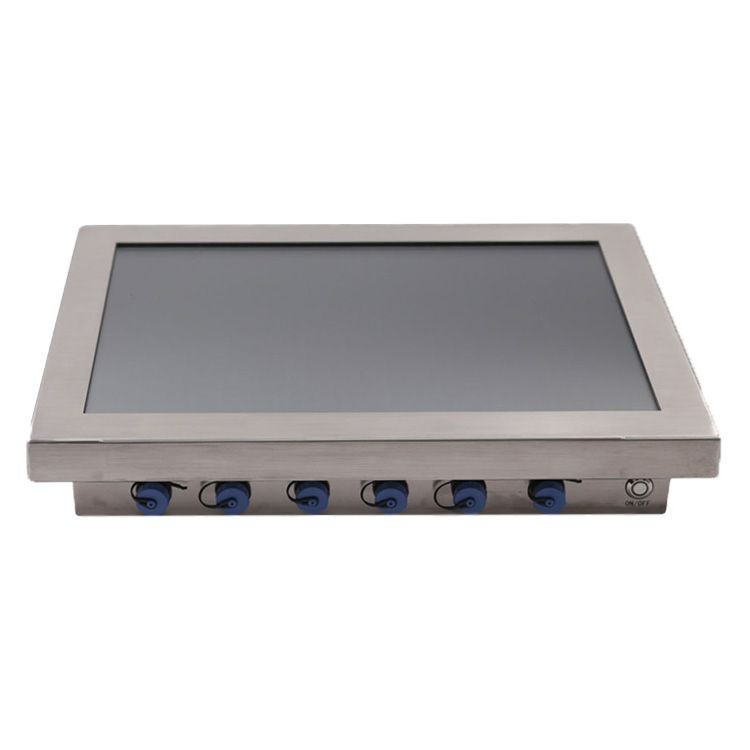

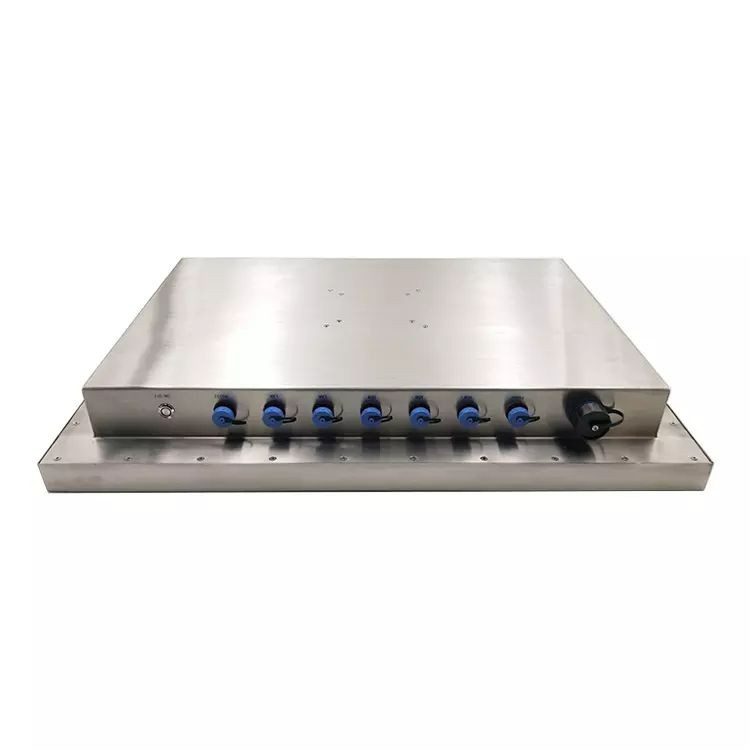

15 inch stainless steel waterproof PC

CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Panel size：15"
Brightness：250nits
Touch Type：Capacitive
IP grade：Full IP65

OVERVIEW

Advanvision’s full IP65/IP67/69K rated fanless stainless steel panel PCs are built to withstand harsh working environments, which are enclosed in a fully sealed SUS304 or SUS316 stainless steel housing. The all 6 sides of the waterproof all in one PCs are designed to be water and dustproof and also for hygienic clean-in-place (CIP) sanitary processing and washdown applications, making these waterproof touch computers ideal for pharmaceutical, chemical or food factories. When configured with wide temperature operation and vibration protection, as well as 1000nit high brightness LCD panels configuration, the full IP rated waterproof stainless steel panel PCs can also be implemented in some outdoor applications such as parking management oil pipeline monitoring and the transportation industry. We provide them with a resistive or waterproof capacitive type touch screen, which allow customers to operate those IP66-IP69K waterproof computers smoothly in harsh, wet and watery environments. In terms of host configuration, we provide Intel Celeron J1900/J6412, Core I3/I5/I7 and Android RK3288/RK3399 motherboards for customers to choose from. The customized heat dissipation design ensures that those full IP65/67/69K waterproof computers can run stably for a long time regardless of the CPU on which they are configured, providing customers with an excellent use experience.

FEATURES

1, 15inch industrial grade LCD panels with 1024*768 resolution, wide viewing angle.

2, NEMA4/IP67/IP69K waterproof & dust-proof with Linko or M12 waterproof connectors for harsh environments.

3, SUS304/SUS316 stainless steel enclosure, more resistant to corrosion, shock and vibration.

4, Adopting EETI solution + industrial-grade touch, or 10 points PCAP touch panel, high sensitive and fast-response optional.

5, DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.

6, Screen replaceable design for repair, easy uninstallation & installation to extend service life.

7, Full sealed and fanless design, full IP65 waterproof , 1000nits,sunlight readable.

8, Auto-dimming optional,Light Sensor, Dimmer Knob, or Cables.

9, Anti-glare glass optional, Surface Treatment, AG/AF/AR Optional.

10, Optical bonding optional, glass treatment for capacitive touch.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	15”
Native Resolution	1024*768
Aspect ratio	4:3
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	5.7s
Viewing Angle	80°/80°/70°/70° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤25W
Enclosure
Material	Full IP65/69K 304/316 stainless steel housing
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	6.5kg(Approx.)
Gross Weight	7.3kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	Vesa mounting, panel mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
15 inch full IP65/69K stainless steel panel pc with no touch, J1900/ADV15IPSPCNTJ1
15 inch full IP65/69K stainless steel panel pc with tempered glass,1900 /ADV15 flat bezel IPSPCTGJ1
15 inch full IP65/69K stainless steel panel pc with resistive touch,J1900/ADV15IPSPCRTJ1
15 inch full IP65/69K stainless steel panel pc with capacitive touch,J1900/ADV15IPSPCCTJ1
15 inch full IP65/69K stainless steel panel pc with no touch, i3/ADV15IPSPCNT01I3
15 inch full IP65/69K stainless steel panel pc with tempered glass,i3 /ADV15IPSPCTGI3
15 inch full IP65/69K stainless steel panel pc with resistive touch,i3/ADV15IPSPCRTI3
15 inch full IP65/69K stainless steel panel pc with capacitive touch,i3/ADV15IPSPCCTI3
15 inch full IP65/69K stainless steel panel pc with no touch, i5/ADV15IPSPCNTI5
15 inch full IP65/69K stainless steel panel pc with tempered glass,i5/ADV15IPSPCTGI5
15 inch full IP65/69K stainless steel panel pc with resistive touch,i5/ADV15IPSPCRTI5
15 inch full IP65/69K stainless steel panel pc with capacitive touch,i5/ADV15IPSPCCTI5
15 inch full IP65/69K stainless steel panel pc with no touch, i7/ADV15IPSPCNTI7
15 inch full IP65/69K stainless steel panel pc with tempered glass,i7/ADV15IPSPCTGI7
15 inch full IP65/69K stainless steel panel pc with resistive touch,i7/ADV15IPSPCRTI7
15 inch full IP65/69K stainless steel panel pc with capacitive touch,i7/ADV15IPSPCCTI7
