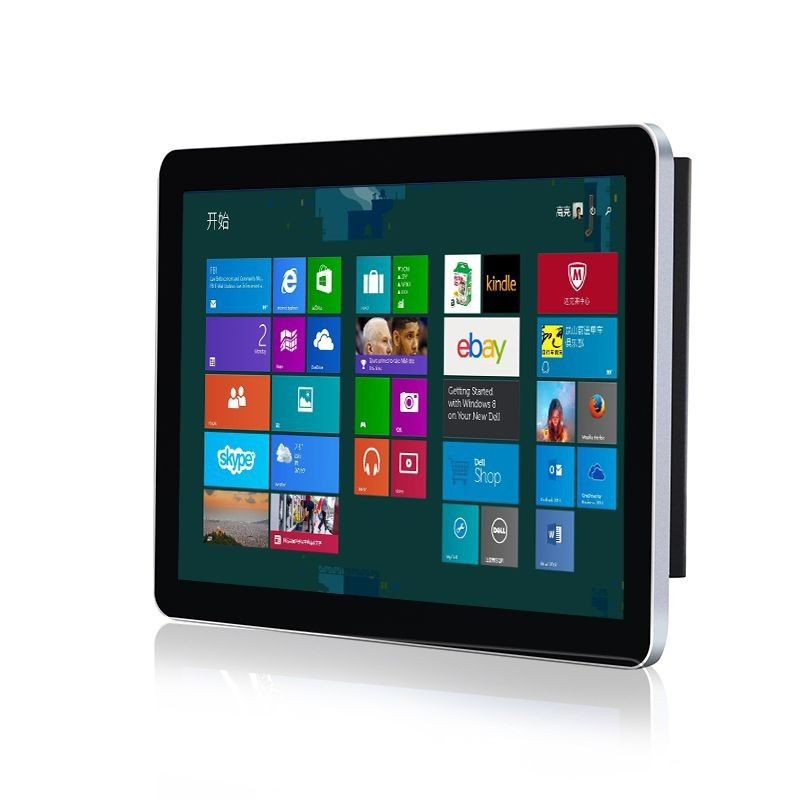

15 inch zero bezel pcap touch panel pc

CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Panel size:15"
Brightness:250nits
Touch Type:Capacitive
IP grade: IP65 front

OVERVIEW

Advanvision’s zero bezel true flat pcap touch panel PCs own a seamless zero-bezel and edge-to-edge glass design with projected capacitive multi touch technology. The zero bezel true flat industrial touch computers featuring a high quality and reliable touch panel with excellent display capabilities give high performance into the smallest package. The highly-sensitive PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers. Fanless and wide temperature ranges allow for seamless application deployment. The zero bezel multi-touch industrial all in one PCs can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments. Those zero bezel capacitive touch industrial panel PCs are designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.





FEATURES

1, 15inch industrial grade LCD panels with 1024*768 resolution, wide viewing angle.

2, Zero-bezel and edge-to-edge glass design with projected capacitive multi touchscreen.

3, Support 7/24 operation in harsh environments.

4, Front IP65 for protection against water and dust

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Various mounting solutions, Yoke mount and VESA mount, brackets mount

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, WIFI, Bluetooth optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

15”

Native Resolution

1024*768

Aspect ratio

4:3

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

500:1

Response Time

5.7s

Viewing Angle

80°/80°/70°/70°  (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤25W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

5.5kg(Approx.)

Gross Weight

6.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

embedded mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


15 inch zero bezel panel pc with tempered glass,1900 /ADV15ZBPCTGJ1

15 inch zero bezel panel pc with capacitive touch,J1900/ADV15ZBPCCTJ1

15 inch zero bezel panel pc with tempered glass,i3 /ADV15ZBPCTGI3

15 inch zero bezel panel pc with capacitive touch,i3/ADV15ZBPCCTI3

15 inch zero bezel panel pc with tempered glass,i5/ADV15ZBPCTGI5

15 inch zero bezel panel pc with capacitive touch,i5/ADV15ZBPCCTI5

15 inch zero bezel panel pc with tempered glass,i7/ADV15ZBPCTGI7

15 inch zero bezel panel pc with capacitive touch,i7/ADV15ZBPCCTI7
