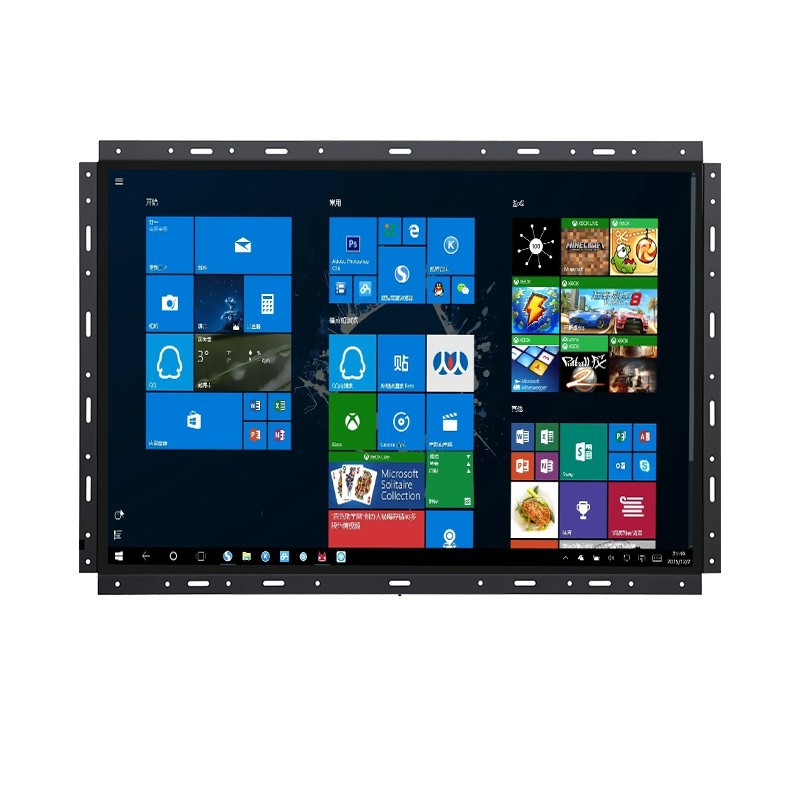

17.3 inch open frame touch all in one panel pc

Panel size:17.3"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:800nits
Touch Type:Capacitive
IP grade:No IP Rating

OVERVIEW

Advanvision’s open frame panel PCs implements the central human-machine interface (HMI). Integrated in a rugged yet simple galvanized sheet housing, a high quality industrial monitor combines powerful PC components to form a thin, economical and practical open frame all in one pc unit. In the case of open frame construction, it is installed at the rear (from the rear) in cutouts of an existing front. The open frame all in one touch panel PCs are often the installation solution of choice, especially in environments where there are no high requirements for dust or water tightness. If interaction with the user is desired in addition to being used as a pure operation control, a keyboard can be integrated into the built-in level directly under the open frame industrial fanless panel PC. Alternatively, Open Frame touch panel PCs of all sizes are also available with resistive touchscreen or capacitive touchscreen which enables precise 1-finger or 10-fingers operation on the screen. The task of the panel PCs - operating and monitoring - is individually adapted for an optimal customer solution, according to requirements. With or without a touch screen, what ultimately counts for Open Frame all in one panel PC is that they can be seamlessly integrated into an industrial network and that they perform their tasks with the highest level of reliability.





FEATURES

1, Bezel-less display provides design flexibility for customers without any limitation.

2, 17.3inch industrial grade LCD panels with 1600*900 resolution, wide viewing angle.

3, Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional

4, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

5, High performance motherboard, 7x24 continuous operation.

6, 1000-1500nits high brightness LCD optional for outdoor use.

7, Customized integrated rugged metal enclosure with customized dimensions with excellent heat dissipation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.

10, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.


SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

17.3”

Native Resolution

1600*900

Aspect ratio

16:9

Active Area(mm)

381.89(W) x   214.81(H)

Brightness

220 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

400:1

Response Time

8ms

Viewing Angle

40°/40°/10°/30°   (R/L/U/D)

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤25W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

6.5kg(Approx.)

Gross Weight

7.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

embedded mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


17.3 inch open frame panel pc with no touch, J1900/ADV173OFPCNTJ1

17.3 inch open frame panel pc with tempered glass,1900 /ADV173OFPCTGJ1

17.3 inch open frame panel pc with resistive touch,J1900/ADV173OFPCRTJ1

17.3 inch open frame panel pc with capacitive touch,J1900/ADV173OFPCCTJ1

17.3 inch open frame panel pc with IR touch,J1900/ADV173OFPCITJ1

17.3 inch open frame panel pc with no touch, i3/ADV173OFPCNT01I3

17.3 inch open frame panel pc with tempered glass,i3 /ADV173OFPCTGI3

17.3 inch open frame panel pc with resistive touch,i3/ADV173OFPCRTI3

17.3 inch open frame panel pc with capacitive touch,i3/ADV173OFPCCTI3

17.3 inch open frame panel pc with IR touch,i3/ADV173OFPCITI3

17.3 inch open frame panel pc with no touch, i5/ADV173OFPCNTI5

17.3 inch open frame panel pc with tempered glass,i5/ADV173OFPCTGI5

17.3 inch open frame panel pc with resistive touch,i5/ADV173OFPCRTI5

17.3 inch open frame panel pc with capacitive touch,i5/ADV173OFPCCTI5

17.3 inch open frame panel pc with IR touch,i5/ADV173OFPCITI5

17.3 inch open frame panel pc with no touch, i7/ADV173OFPCNTI7

17.3 inch open frame panel pc with tempered glass,i7/ADV173OFPCTGI7

17.3 inch open frame panel pc with resistive touch,i7/ADV173OFPCRTI7

17.3 inch open frame panel pc with capacitive touch,i7/ADV173OFPCCTI7

17.3 inch open frame panel pc with IR touch,i7/ADV173OFPCITI7
