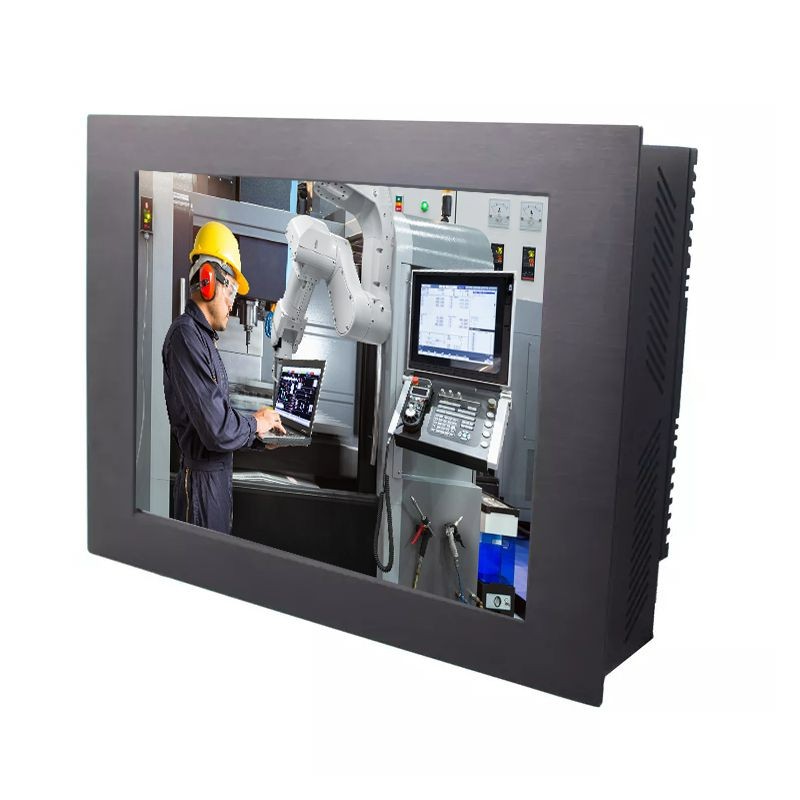

17 inch panel mount panel pc

Panel size：17"
CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Brightness：250nits
Touch Type：Capacitive
IP grade： IP65 front Rating

OVERVIEW

Advanvision’s panel mount panel PCs are have a robust, easy-to-clean user interface. We provide all panel mount front panels are IP65-protected, i.e. absolutely dust-tight, and protected against the ingress of water jets from any angle. The screens of a panel mount PCs are hermetically sealed to the frame. The panel mount touch computer consisting of screen and computer is inserted precisely into the cutout of a mounting wall from the front and screwed on from the rear. Depending on the application, we can provide different versions for panel mount panel PCs. They are the front glass explosion-proof version, resistive touch version, capacitive touch version, infrared touch version. As for the front panel of the panel mount touch PCs, we can provide different material versions for customers to choose, usually there are brushed aluminum panel, ordinary economic 3mm galvanized panel, brushed stainless steel panel. For food, chemical and pharmaceutical industries with high hygiene standards of clean intensive industries, using stainless steel panel mount PC is the most ideal choice, which can prevent hot water from entering during high pressure or steam jet cleaning.

FEATURES

1, 6.5inch industrial grade LCD panels with 640*480 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen optional.

3, High performance motherboard, 7x24 continuous operation.

4, Support panel mounting, desk stand mounting, VESA mounting etc.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Customized integrated rugged metal enclosure with elegant aluminum brushed front panel, brushed stainless steel front panel optional.

7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8, Phoenix terminal 9-36V wide voltage input optional.

9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

10, IP65 front, WIFI, Bluetooth optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	17”
Native Resolution	1280*1024
Aspect ratio	4:3
Active Area(mm)	337.920(H) x 270.336(V)
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	5ms
Viewing Angle	85°/85°/80°/80° (R/L/U/D)
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤25W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	6.5kg(Approx.)
Gross Weight	7.3kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	panel mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
17 inch panel mount panel pc with no touch, J1900/ADV17PMPCNTJ1
17 inch panel mount panel pc with tempered glass,1900 /ADV17PMPCTGJ1
17 inch panel mount panel pc with resistive touch,J1900/ADV17PMPCRTJ1
17 inch panel mount panel pc with capacitive touch,J1900/ADV17PMPCCTJ1
17 inch panel mount panel pc with IR touch,J1900/ADV17PMPCITJ1
17 inch panel mount panel pc with no touch, i3/ADV17PMPCNT01I3
17 inch panel mount panel pc with tempered glass,i3 /ADV17PMPCTGI3
17 inch panel mount panel pc with resistive touch,i3/ADV17PMPCRTI3
17 inch panel mount panel pc with capacitive touch,i3/ADV17PMPCCTI3
17 inch panel mount panel pc with IR touch,i3/ADV17PMPCITI3
17 inch panel mount panel pc with no touch, i5/ADV17PMPCNTI5
17 inch panel mount panel pc with tempered glass,i5/ADV17PMPCTGI5
17 inch panel mount panel pc with resistive touch,i5/ADV17PMPCRTI5
17 inch panel mount panel pc with capacitive touch,i5/ADV17PMPCCTI5
17 inch panel mount panel pc with IR touch,i5/ADV17PMPCITI5
17 inch panel mount panel pc with no touch, i7/ADV17PMPCNTI7
17 inch panel mount panel pc with tempered glass,i7/ADV17PMPCTGI7
17 inch panel mount panel pc with resistive touch,i7/ADV17PMPCRTI7
17 inch panel mount panel pc with capacitive touch,i7/ADV17PMPCCTI7
17 inch panel mount panel pc with IR touch,i7/ADV17PMPCITI7
