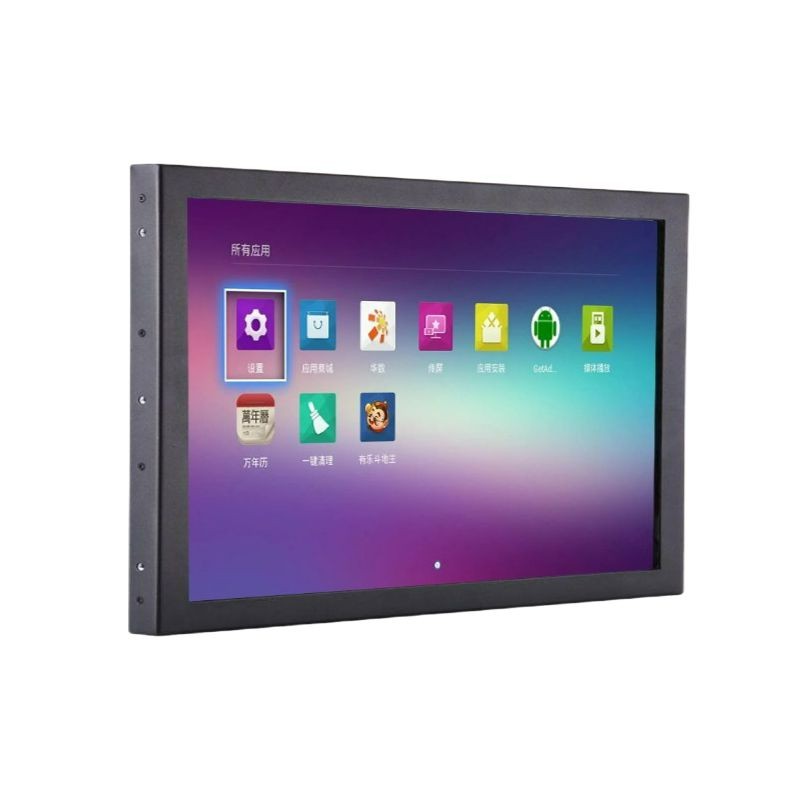

18.5 inch android touch panel pc

CPU:ARM Quad Core RK3288 Cortex-A17
RAM:2GB
Hard Drive:8GB
Panel size:18.5"
Brightness:350nits
Touch Type:Capacitive
IP grade:IP65 front Rating

OVERVIEW

Advanvision industrial Fanless android Panel PCs is available in screen sizes from 6.5" up to 75". These industrial android computers run on Rackchip RK series, with RK3288, RK3568, RK3399 optional. Those android industrial panel PCs can operate Linux or Android. These operating systems are perfect for web based applications and can be easily integrated into industrial manufacturing applications. Android touch panel PCs provides a cost effective alternative to traditional Windows based panel PCs. Advanvision fanless android touch panel PCs has rugged metal enclosures and with IP65 front, flat bezel design, zero bezel design optional. They allow for durability and reliability in any environment. The android all in one touch computers solution are perfect for applications such as automated industry, building automation, smart city, and IoT cloud based solutions.





FEATURES

1, Support android 5.1, 6.0, 7.1, 9.0, 10.0,11 and Linux, Ubuntu, which are ideal platforms for running your own applications or customizing the OS for your needs.

2, With onboard DDR3 2GB-8G ram memory and 8G-64G onboard flash rom optional.

3, 18.5" industrial grade LCD panel with 1366*768 or 1920*1080 resolution and 1000nits high brightness optional, and available with 10point PCAP touch or resistive touch.

4, Simple and smart design with rugged metal enclosure, which have fanless cooling systems and durability in high shock and vibration settings.

5, Customized multiple I/O port to meet customers requirement, can be with SIM card slot, and support 3G/4G optional, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.

6, Provide SDK, support secondary development.

7, High performance industrial android motherboard, 7x24 continuous operation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.





SPECIFICATION

PC

CPU

ARM Quad Core   RK3288 Cortex-A17, Main CPU frequency:1.8GHz

CPU Optional

RK3399, RK3368   Optional

GPU

Mali-T764 GPU

SDRAM

2G (4G, 8G   optional)

Flash

8G:   16G/32G/64G/128G Optional

Bluetooth

Optional

Video Decoder

4K VP8 and 4K   10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format

Supports   RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format

Support   MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC



Network Support

Ethernet,Wifi/bluetooth   4.0,wireless peripherals,etc

I/O Interface

1 × HDMI; 2 × USB   Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional; 1 ×   RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); Com Port optional

Operation System

Android 6.0/7.1/8.0

LCD Panel

Panel size

18.5”

Native Resolution

1366*768 or   1920*1080 optional

Aspect ratio

16:9

Active Area(mm)

409.8(H) x   230.4(V)

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

500:1

Response Time

5ms

Viewing Angle

85°/85°/80°/80°   (R/L/U/D)

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤40W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

7.2kg(Approx.)

Gross Weight

7.8kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

Vesa mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


18.5 inch chassis android panel pc with no touch,RK3288/ADV185CAPCNTRK1

18.5 inch chassis android panel pc with tempered glass,RK3288 /ADV185CAPCTGRK1

18.5 inch chassis android panel pc with resistive touch,RK3288/ADV185CAPCRTRK1

18.5 inch chassis android panel pc with capacitive touch,RK3288/ADV185CAPCCTRK1

18.5 inch chassis android panel pc with no touch,RK3399/ADV185CAPCNTRK2

18.5 inch chassis android panel pc with tempered glass,RK3399 /ADV185CAPCTGRK2

18.5 inch chassis android panel pc with resistive touch,RK3399/ADV185CAPCRTRK2

18.5 inch chassis android panel pc with capacitive touch,RK3399/ADV185CAPCCTRK2
