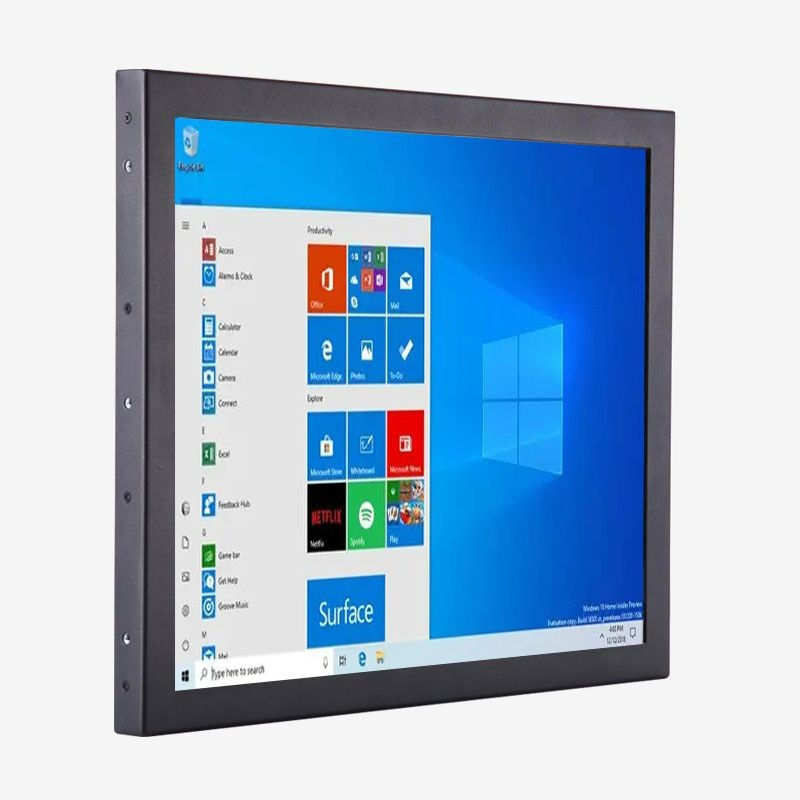

19 inch chassis industrial touchscreen pc

Panel size:19"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:800nits
Touch Type:Capacitive
IP grade: IP65 front Rating

OVERVIEW

Advanvision industrial chassis panel PCs are cost-effective panel PCs, which have rugged galvanized plate housing, simple and generous. Chassis all in one panel PCs are mountable in various ways, It is most commonly mounted on the machine or wall via the metal VESA mounting bracket, or mounted on the desktop via the desktop mounting bracket. The key features of the chassis touch computers are robustness, reliability and long-term deliverability combined with reasonable prices. The industrial chassis computers own high-quality mechanics which simplifies integration in industrial applications as well as in POI and POS. They are equipped with efficient, fanless industrial mainboards (processor / CPU Intel® Celeron® J1900/J6412 or Core I3/I5/I7 optional). CAN-BUS or 8 digital I/Os are available in addition to the standard USB, RS232, LAN interfaces.





FEATURES

1, 6.5inch industrial grade LCD panels with 640*480 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance motherboard, 7x24 continuous operation.

4, Support wall mounting, embedded mounting, desk stand mounting, VESA mounting etc.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Customized integrated Rugged Metal Enclosure with customized dimensions with excellent heat dissipation.

7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8, Phoenix terminal 9-36V wide voltage input optional.

9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

10,IP65 front, WIFI, Bluetooth optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

19”

Native Resolution

1280*1024

Aspect ratio

4:3

Active Area(mm)

376.32(H) x   301.06(V)

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

1000:1

Response Time

8ms

Viewing Angle

85°/85°/80°/80°   (R/L/U/D)

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤38W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

7.5kg(Approx.)

Gross Weight

8.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

embedded mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


19 inch chassis panel pc with no touch, J1900/ADV19CPCNTJ1

19 inch chassis panel pc with tempered glass,1900 /ADV19CPCTGJ1

19 inch chassis panel pc with resistive touch,J1900/ADV19CPCRTJ1

19 inch chassis panel pc with capacitive touch,J1900/ADV19CPCCTJ1

19 inch chassis panel pc with IR touch,J1900/ADV19CPCITJ1

19 inch chassis panel pc with no touch, i3/ADV19CPCNT01I3

19 inch chassis panel pc with tempered glass,i3 /ADV19CPCTGI3

19 inch chassis panel pc with resistive touch,i3/ADV19CPCRTI3

19 inch chassis panel pc with capacitive touch,i3/ADV19CPCCTI3

19 inch chassis panel pc with IR touch,i3/ADV19CPCITI3

19 inch chassis panel pc with no touch, i5/ADV19CPCNTI5

19 inch chassis panel pc with tempered glass,i5/ADV19CPCTGI5

19 inch chassis panel pc with resistive touch,i5/ADV19CPCRTI5

19 inch chassis panel pc with capacitive touch,i5/ADV19CPCCTI5

19 inch chassis panel pc with IR touch,i5/ADV19CPCITI5

19 inch chassis panel pc with no touch, i7/ADV19CPCNTI7

19 inch chassis panel pc with tempered glass,i7/ADV19CPCTGI7

19 inch chassis panel pc with resistive touch,i7/ADV19CPCRTI7

19 inch chassis panel pc with capacitive touch,i7/ADV19CPCCTI7

19 inch chassis panel pc with IR touch,i7/ADV19CPCITI7
