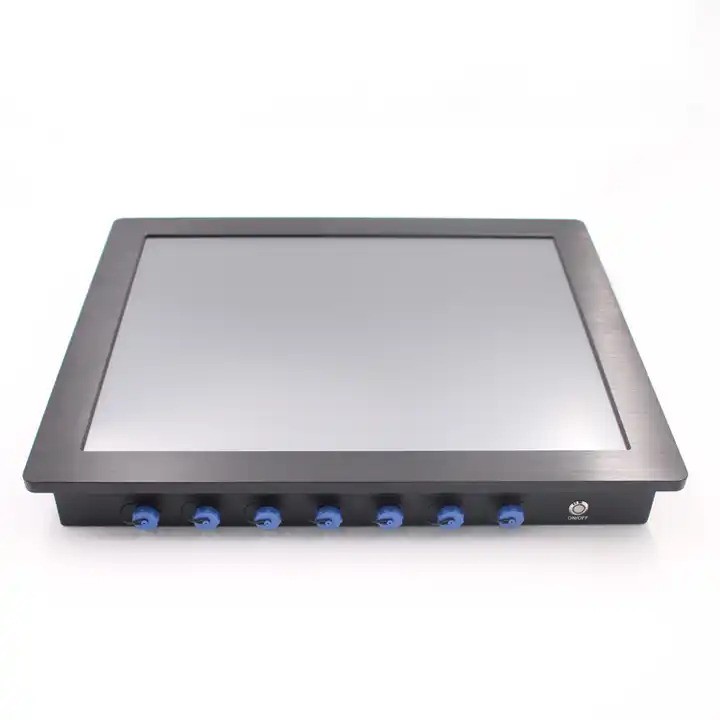

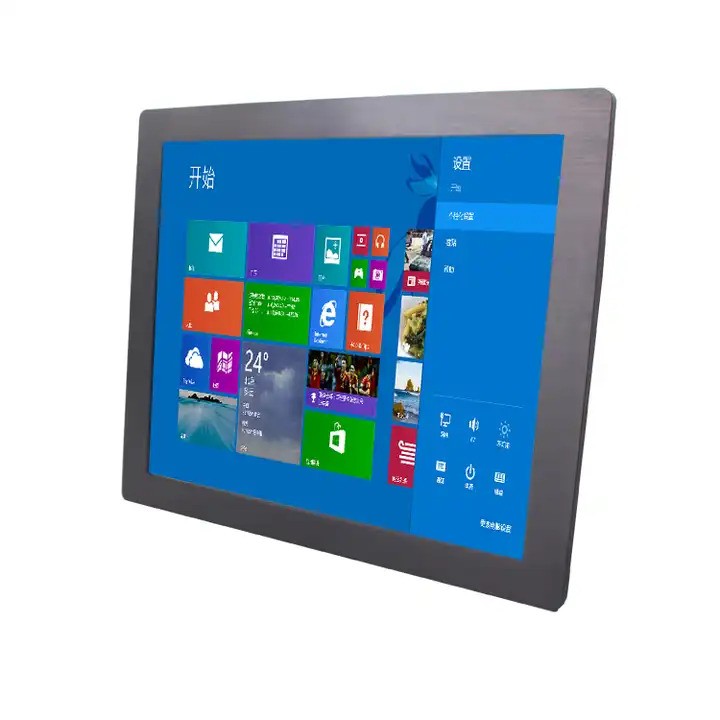

19 inch high brightness full IP67 waterproof HMI touch panel pc

CPU:Intel Celeron J1900/J6417/J4105
RAM:4GB
Hard Drive:64G SSD
Panel size:19"
Brightness:1200nits
Touch Type:Capacitive
IP grade:Full IP67
Material: All-aluminum alloy

OVERVIEW

Advanvision’s full IP65/IP66/IP67/IP69K all aluminum high brightness waterproof panel PCs

are rugged and specialized type of industrial computer system that is designed to be resistant to water and harsh strong light environment elements. It typically consists of a wide-temperature industrial LCD panel and an industrial computer unit integrated into a rugged, all-aluminum sealed enclosure, while receiving power and connecting to other external devices through a fully waterproof interface such as the M12 waterproof interface. This type of panel PC is commonly used in industries and environments where exposure to water, moisture, and dust is a concern, such as industrial settings, outdoor applications, marine environments, food processing, and medical facilities. These panel PCs play a crucial role in environments where traditional computers would be at risk due to exposure to moisture, liquids, or contaminants. They ensure that critical operations can continue without interruption even in challenging conditions.






FEATURES

1, 19 inch industrial grade LCD panels with 1280*1024 resolution, wide viewing angle.

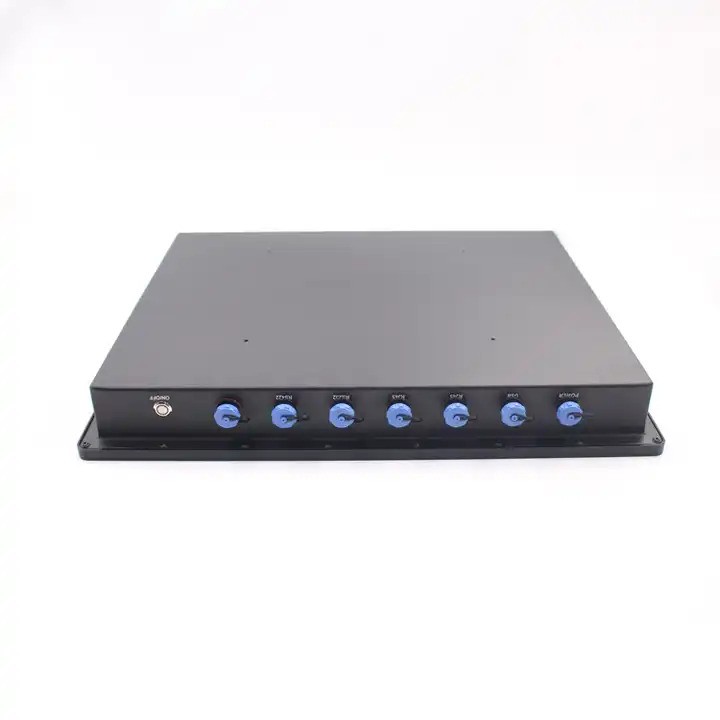

2, NEMA4/IP67/IP69K waterproof & dust-proof with Linko or M12 waterproof connectors for harsh environments.

3, High quality aluminum alloy enclosure, more resistant to corrosion, shock and vibration.

4, Adopting EETI solution + industrial-grade touch, or 10 points PCAP touch panel, high sensitive and fast-response optional.

5, DC 12V power supply (DC24V, 9-36V Optional), support power-on boot, 7x24hours.

6, Screen replaceable design for repair, easy uninstallation & installation to extend service life.

7, Full sealed and fanless design, full IP65 waterproof , 1000nits,sunlight readable.

8, Auto-dimming optional,Light Sensor, Dimmer Knob, or Cables.

9, Anti-glare glass optional, Surface Treatment, AG/AF/AR Optional.

10, Optical bonding optional, glass treatment for capacitive touch.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support 1080p HD photo   quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

19”

Native Resolution

1280*1024

Aspect ratio

5:4

Brightness

1200 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

500:1

Response Time

8ms

Viewing Angle

80°/80°/80°/80° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤35W

Enclosure

Material

Aluminium alloy

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details


Net Weight

7.00kg(Approx.)

Gross Weight

8.00kg(Approx.)

Accessories

Power adapter, embedded screws, user manual, warranty card

Other


Mounting

Vesa mounting, panel mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


19 inch full IP65/69K high brightness   panel pc with no touch, J1900, Aluminium enclosure/ADV19IPAPCHBNTJ1

19 inch full IP65/69K high brightness panel pc with resistive touch,J1900, Aluminium enclosure /ADV19IPAPCHBRTJ1

19 inch full IP65/69K high brightness panel pc with capacitive touch,J1900, Aluminium enclosure /ADV19IPAPCHBCTJ1

19 inch full IP65/69K high brightness panel pc with no touch, i3, Aluminium enclosure /ADV19IPAPCHBNT01I3

19 inch full IP65/69K high brightness panel pc with resistive touch,i3, Aluminium enclosure /ADV19IPAPCHBRTI3

19 inch full IP65/69K high brightness panel pc with capacitive touch,i3, Aluminium enclosure /ADV19IPAPCHBCTI3

19 inch full IP65/69K high brightness panel pc with no touch, i5/ADV19IPAPCHBNTI5

19 inch full IP65/69K high brightness panel pc with resistive touch,i5, Aluminium enclosure /ADV19IPAPCHBRTI5

19 inch full IP65/69K high brightness panel pc with capacitive touch,i5, Aluminium enclosure /ADV19IPAPCHBCTI5

19 inch full IP65/69K high brightness panel pc with no touch, i7, Aluminium enclosure /ADV19IPAPCHBNTI7

19 inch full IP65/69K high brightness panel pc with resistive touch,i7, Aluminium enclosure /ADV19IPAPCHBRTI7

19 inch full IP65/69K high brightness panel pc with capacitive touch,i7, Aluminium enclosure /ADV19IPAPCHBCTI7
