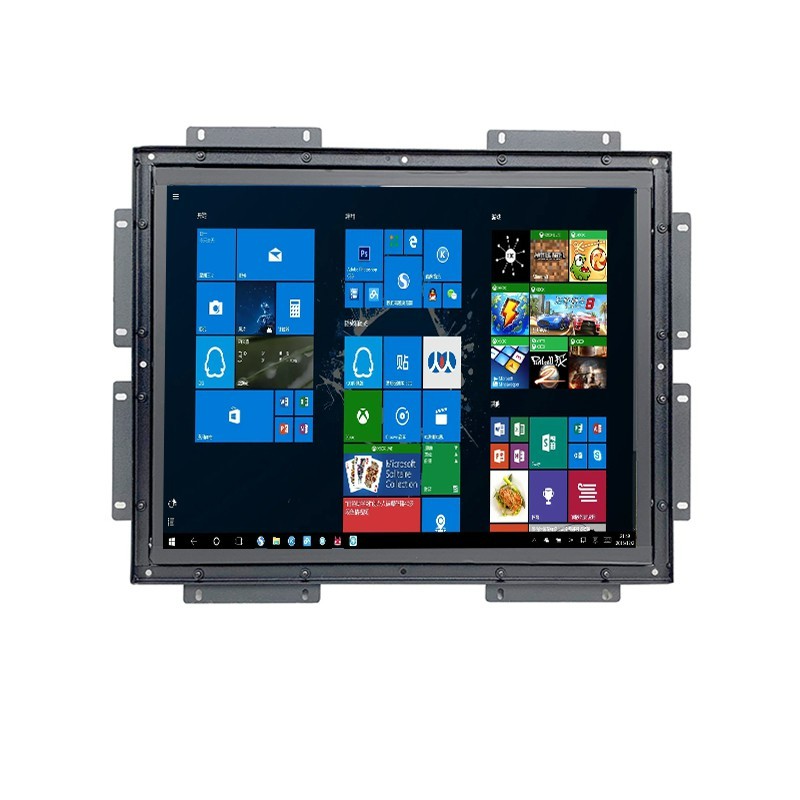

19 inch industrial open frame fanless touch panel pc

Panel size：19"
CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Brightness：800nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision’s open frame panel PCs implements the central human-machine interface (HMI). Integrated in a rugged yet simple galvanized sheet housing, a high quality industrial monitor combines powerful PC components to form a thin, economical and practical open frame all in one pc unit. In the case of open frame construction, it is installed at the rear (from the rear) in cutouts of an existing front. The open frame all in one touch panel PCs are often the installation solution of choice, especially in environments where there are no high requirements for dust or water tightness. If interaction with the user is desired in addition to being used as a pure operation control, a keyboard can be integrated into the built-in level directly under the open frame industrial fanless panel PC. Alternatively, Open Frame touch panel PCs of all sizes are also available with resistive touchscreen or capacitive touchscreen which enables precise 1-finger or 10-fingers operation on the screen. The task of the panel PCs - operating and monitoring - is individually adapted for an optimal customer solution, according to requirements. With or without a touch screen, what ultimately counts for Open Frame all in one panel PC is that they can be seamlessly integrated into an industrial network and that they perform their tasks with the highest level of reliability.

FEATURES

1, Bezel-less display provides design flexibility for customers without any limitation.

2, 19inch industrial grade LCD panels with 1280*1024 resolution, wide viewing angle.

3, Intel Celeron J1900, J6412/Core i3,i5,i7 inside optional

4, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

5, High performance motherboard, 7x24 continuous operation.

6, 1000-1500nits high brightness LCD optional for outdoor use.

7, Customized integrated rugged metal enclosure with customized dimensions with excellent heat dissipation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.

10, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	19”
Native Resolution	1280*1024
Aspect ratio	4:3
Active Area(mm)	376.32(H) x 301.06(V)
Brightness	250 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	8ms
Viewing Angle	85°/85°/80°/80° (R/L/U/D)
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤38W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	7.5kg(Approx.)
Gross Weight	8.3kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	embedded mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
19 inch open frame panel pc with no touch, J1900/ADV19OFPCNTJ1
19 inch open frame panel pc with tempered glass,1900 /ADV19OFPCTGJ1
19 inch open frame panel pc with resistive touch,J1900/ADV19OFPCRTJ1
19 inch open frame panel pc with capacitive touch,J1900/ADV19OFPCCTJ1
19 inch open frame panel pc with IR touch,J1900/ADV19OFPCITJ1
19 inch open frame panel pc with no touch, i3/ADV19OFPCNT01I3
19 inch open frame panel pc with tempered glass,i3 /ADV19OFPCTGI3
19 inch open frame panel pc with resistive touch,i3/ADV19OFPCRTI3
19 inch open frame panel pc with capacitive touch,i3/ADV19OFPCCTI3
19 inch open frame panel pc with IR touch,i3/ADV19OFPCITI3
19 inch open frame panel pc with no touch, i5/ADV19OFPCNTI5
19 inch open frame panel pc with tempered glass,i5/ADV19OFPCTGI5
19 inch open frame panel pc with resistive touch,i5/ADV19OFPCRTI5
19 inch open frame panel pc with capacitive touch,i5/ADV19OFPCCTI5
19 inch open frame panel pc with IR touch,i5/ADV19OFPCITI5
19 inch open frame panel pc with no touch, i7/ADV19OFPCNTI7
19 inch open frame panel pc with tempered glass,i7/ADV19OFPCTGI7
19 inch open frame panel pc with resistive touch,i7/ADV19OFPCRTI7
19 inch open frame panel pc with capacitive touch,i7/ADV19OFPCCTI7
19 inch open frame panel pc with IR touch,i7/ADV19OFPCITI7
