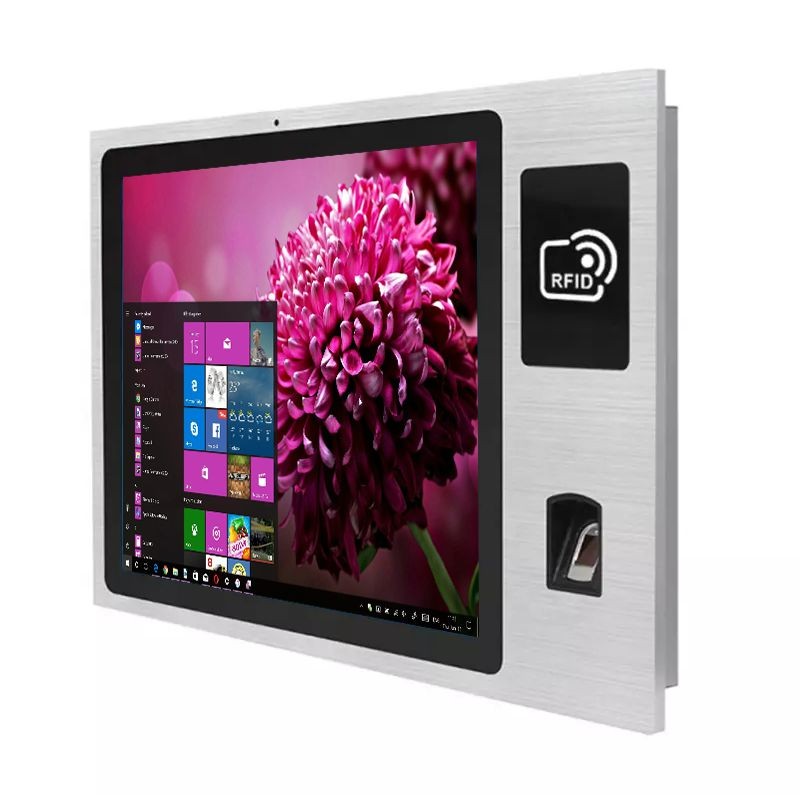

21.5 inch flat bezel panel mount panel pc with RFID

Panel size:21.5"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:800nits
Touch Type:Capacitive
IP grade:IP65 front

OVERVIEW

Advanvision’s flat bezel panel mount panel PCs are fully-integrated‚ multi projected capacitive touch screens that combine PCT and PCAP technology in a sleek industrial-grade IP65/ NEMA 4-4x ingress rating TFT-LCD flat panel with flat front surface design and HMI interface provide a full range of industrial-grade units with multi-function capabilities and brilliant displays. The real flat screen of a flat bezel panel mount computers is hermetically sealed to the frame. The flat bezel panel mount touch computer consisting of screen and computer is inserted precisely into the cutout of a mounting wall from the front and screwed on from the rear. The all-molded aluminum under shell design combined with easy-to-clean, water-resistant flat brushed aluminum or stainless steel panels provides them with elegant and perfect appearance. As for the front panel of the flat bezel panel mount all in one PCs, we can provide different material versions for customers to choose, usually there are brushed aluminum panel, brushed stainless steel panel. The configuration with processors, main memories, drives and interfaces takes place as required, precisely tailored to the area of application of the Panel Mount PC. The highest manufacturing quality of all components and heat dissipation design of all aluminum back shell ensures fail-safe long-term operation - even in 24-hour continuous use.





FEATURES

1, 21.5inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

2, Resistive or capacitive touch screen optional.

3, Support 7/24 operation in harsh environments.

4, IP65 front easy-to-clean, water-resistant flat brushed aluminum or stainless steel front panel.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Aluminum alloy chassis and casing, good heating-dissipation under high-temperature conditions.

7, Phoenix terminal 9-36V wide voltage input optional.

8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

9, WIFI, Bluetooth optional.

10, Support functional module: NFC, RFID, IC card, ID card reader optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

21.5”

Native Resolution

1920*1080

Aspect ratio

16:9

Active Area(mm)

476.64(H) x   248.25(V)

Brightness

250 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

1000:1

Response Time

5ms

Viewing Angle

85°/85°/80°/80°   (R/L/U/D)

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤38W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

10.5kg(Approx.)

Gross Weight

11.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

panel mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


21.5 inch flat bezel panel mount panel pc with tempered glass,1900/ADV21FPMPCTGJ1

21.5 inch flat bezel panel mount panel pc with resistive touch,J1900/ADV21FPMPCRTJ1

21.5 inch flat bezel panel mount panel pc with capacitive touch,J1900/ADV21FPMPCCTJ1

21.5 inch flat bezel panel mount panel pc with tempered glass,i3/ADV21FPMPCTGI3

21.5 inch flat bezel panel mount panel pc with resistive touch,i3/ADV21FPMPCRTI3

21.5 inch flat bezel panel mount panel pc with capacitive touch,i3/ADV21FPMPCCTI3

21.5 inch flat bezel panel mount panel pc with tempered glass,i5/ADV21FPMPCTGI5

21.5 inch flat bezel panel mount panel pc with resistive touch,i5/ADV21FPMPCRTI5

21.5 inch flat bezel panel mount panel pc with capacitive touch,i5/ADV21FPMPCCTI5

21.5 inch flat bezel panel mount panel pc with tempered glass,i7/ADV21FPMPCTGI7

21.5 inch flat bezel panel mount panel pc with resistive touch,i7/ADV21FPMPCRTI7

21.5 inch flat bezel panel mount panel pc with capacitive touch,i7/ADV21FPMPCCTI7
