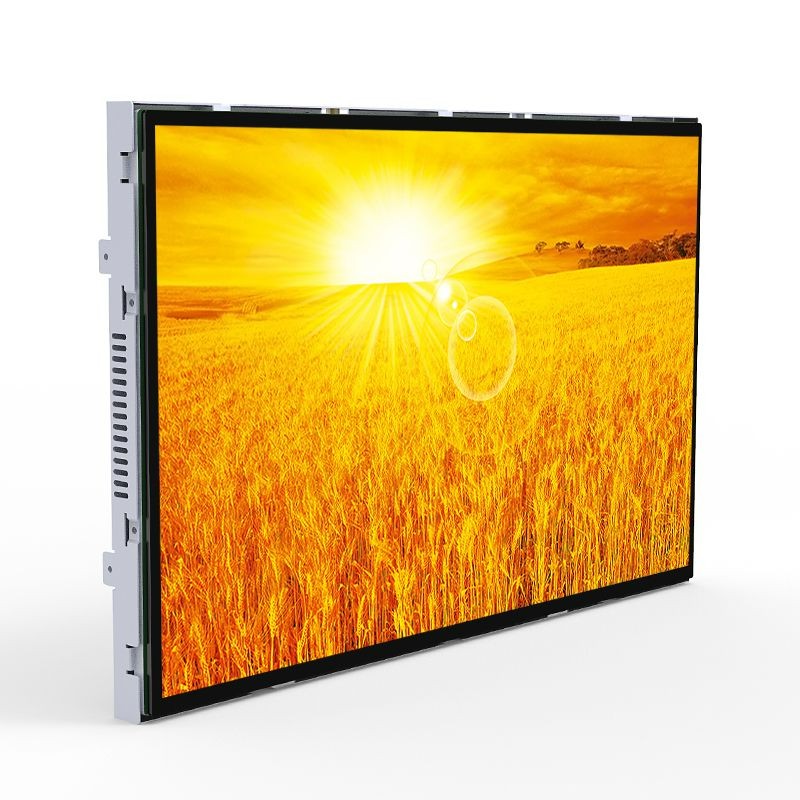

24 inch high brightness lcd monitor

Panel size：24"
Resolution：1920*1080
Surface Treatment：PCAP touch
Interface：HDMI/DVI/VGA
Brightness：1000nits-1500nits
Touch Type：Capacitive
IP grade：IP65 Front Optional

FEATURES

1. Industrial grade LCD panel, wide viewing angle, high nits, true color.

2. Option for resistive or capacitive type touch screen, high sensitive and fast response.

3. High performance motherboard, 7x24 continuous operation.

4. Support wall mounting,desk stand mouting etc.

5. 1000-1500 nits sunlight readable optional.

6. Customized integrated metal housing, good mechanical properties, excellent heat dissipation.

7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8. VGA,HDMI,DVI input.

9. External 100/240 auto-switch AC power adapter.

SPECIFICATION

LCD Panel
Panel size	24”
Native resolution	1920*1080
Aspect ratio	16:10
Active Area(mm)	518.4(H) x 324.0(V)
Brightness	1000nits-1500nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1000:1
Response Time	6ms
Viewing angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch,IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	1×HDMI
Audio in/out,DP	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10 ,Linux, Mac OS X,Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤40W
Enclosure
Material	High strength cold rolled steel back case
Color/Dimension	Black, white, Silver , color and dimensions are can be customized
VESA mounting	75×75mm/100×100mm
IP grade	No IP rating
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	8.5kg(Approx.)
Gross weight	12kg(Approx.)
Accessories	Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws
Other
Mounting	embedded mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
24 inch sunlight readable high brightness LCD monitor no touch/ADV24CMNTHB01
24 inch sunlight readable high brightness LCD monitor with tempered glass /ADV24CMTGHB01
24 inch sunlight readable high brightness LCD monitor with capacitive touch/ADV24CMCTHB01
24 inch sunlight readable high brightness LCD monitor with IR touch/ADV24CMITHB01
