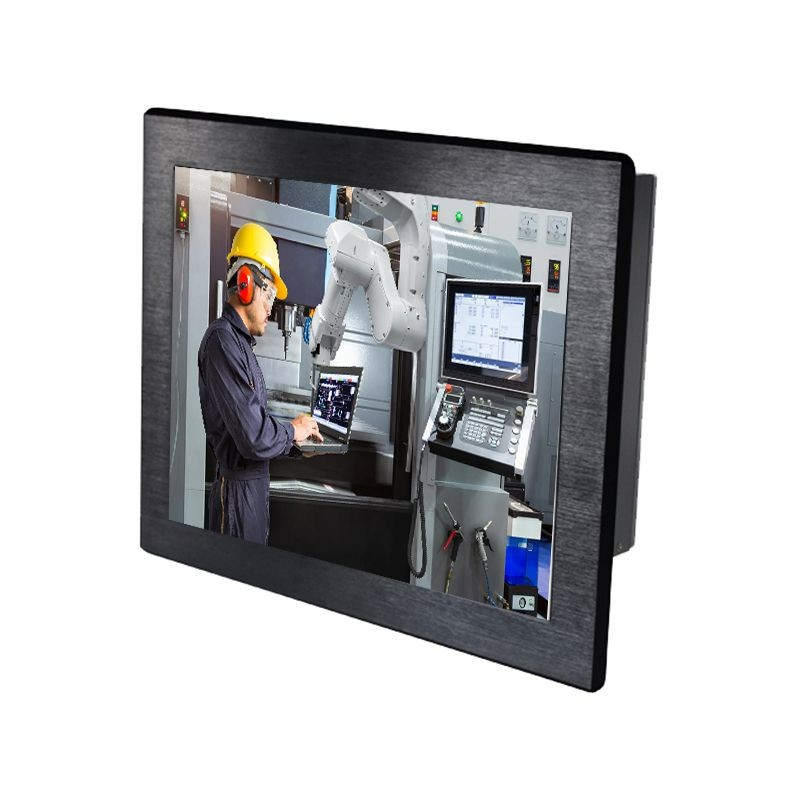

24 inch industrial panel mount touch panel pc

Panel size:24"
CPU:Intel Celeron J1900
RAM:4GB
Hard Drive:64G SSD
Brightness:350nits
Touch Type:Capacitive
IP grade: IP65 front Rating

OVERVIEW

Advanvision’s panel mount panel PCs are have a robust, easy-to-clean user interface. We provide all panel mount front panels are IP65-protected, i.e. absolutely dust-tight, and protected against the ingress of water jets from any angle. The screens of a panel mount PCs are hermetically sealed to the frame. The panel mount touch computer consisting of screen and computer is inserted precisely into the cutout of a mounting wall from the front and screwed on from the rear. Depending on the application, we can provide different versions for panel mount panel PCs. They are the front glass explosion-proof version, resistive touch version, capacitive touch version, infrared touch version. As for the front panel of the panel mount touch PCs, we can provide different material versions for customers to choose, usually there are brushed aluminum panel, ordinary economic 3mm galvanized panel, brushed stainless steel panel. For food, chemical and pharmaceutical industries with high hygiene standards of clean intensive industries, using stainless steel panel mount PC is the most ideal choice, which can prevent hot water from entering during high pressure or steam jet cleaning.





FEATURES

1, 24inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen optional.

3, High performance motherboard, 7x24 continuous operation.

4, Support panel mounting, desk stand mounting, VESA mounting etc.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Customized integrated rugged metal enclosure with elegant aluminum brushed front panel, brushed stainless steel front panel optional.

7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8, Phoenix terminal 9-36V wide voltage input optional.

9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

10, IP65 front, WIFI, Bluetooth optional.





SPECIFICATION

PC

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

CPU Optional

Intel® Celeron 3825U,J4105 ,Core i3/i5/i7

Chipset

Intel NM10 Express

Memory

4G DDR3 (2G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support   1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in,   Line out

Network

1xRealtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

4G Optional

I/O Interface

2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)

1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD Panel

Panel size

24”

Native Resolution

1920*1080

Aspect ratio

16:10

Active Area(mm)

518.4(H) x   324.0(V)

Brightness

300 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of screen)

1000:1

Response Time

6ms

Viewing Angle

89°/89°/89°/89°   (R/L/U/D)

Touch

Touchscreen Type

Project Capacitive Touch (10 points)

Surface Hardness

3H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch Response Time

2ms

Working Life

>50 million times

Touch Options

(5 wires restive touch,IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working Voltage

DC 12V

Power Consumption

≤40W

Enclosure

Material

High strength cold rolled steel back case

Color

Black, white, Silver , color can be customized

VESA Mounting

75×75mm/100×100mm

IP Grade

No

Operating   Environment


Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative Humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour   per axis

Packing   Details


Net Weight

5.5kg(Approx.)

Gross Weight

6.3kg(Approx.)

Accessories

Power adapter, embedded screws, user manual,   warranty card

Other


Mounting

panel mounting

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order Information


24 inch panel mount panel pc with no touch, J1900/ADV24PMPCNTJ1

24 inch panel mount panel pc with tempered glass,1900 /ADV24PMPCTGJ1

24 inch panel mount panel pc with capacitive touch,J1900/ADV24PMPCCTJ1

24 inch panel mount panel pc with IR touch,J1900/ADV24PMPCITJ1

24 inch panel mount panel pc with no touch, i3/ADV24PMPCNT01I3

24 inch panel mount panel pc with tempered glass,i3 /ADV24PMPCTGI3

24 inch panel mount panel pc with capacitive touch,i3/ADV24PMPCCTI3

24 inch panel mount panel pc with IR touch,i3/ADV24PMPCITI3

24 inch panel mount panel pc with no touch, i5/ADV24PMPCNTI5

24 inch panel mount panel pc with tempered glass,i5/ADV24PMPCTGI5

24 inch panel mount panel pc with capacitive touch,i5/ADV24PMPCCTI5

24 inch panel mount panel pc with IR touch,i5/ADV24PMPCITI5

24 inch panel mount panel pc with no touch, i7/ADV24PMPCNTI7

24 inch panel mount panel pc with tempered glass,i7/ADV24PMPCTGI7

24 inch panel mount panel pc with capacitive touch,i7/ADV24PMPCCTI7

24 inch panel mount panel pc with IR touch,i7/ADV24PMPCITI7
