OVERVIEW

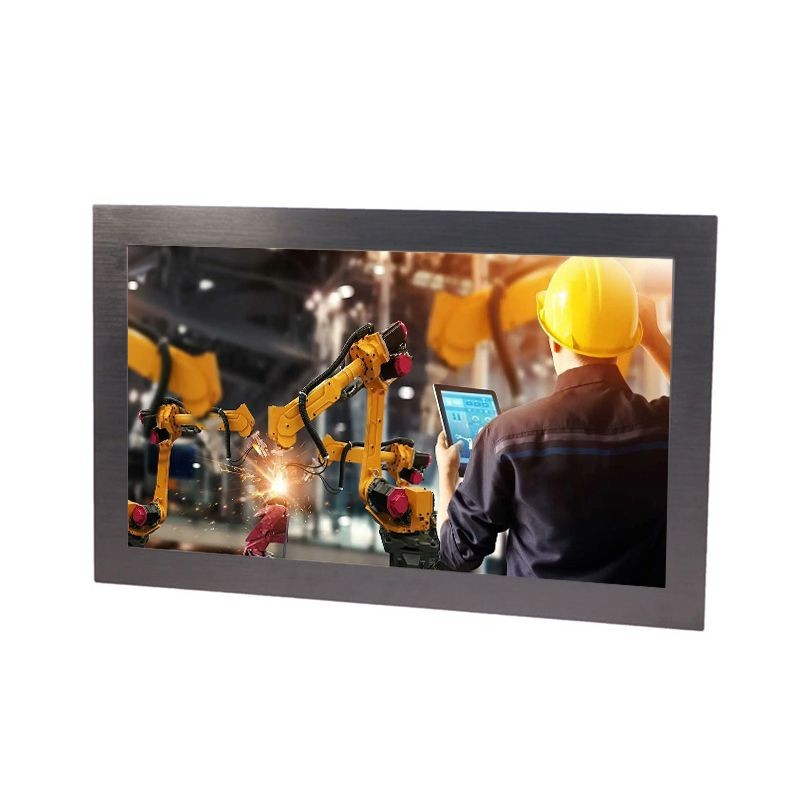

A panel mount monitor refers to a display device that is designed to be securely mounted onto a flat surface, typically a panel or enclosure. These monitors are often used in various industrial, commercial, and professional settings where a rugged and space-efficient display solution is required. Panel mount monitors are specifically designed for mounting on a panel or surface, the mounting method ensures a secure and flush fit onto the mounting surface. Panel mount monitors are commonly used in industrial environments, manufacturing facilities, control rooms, kiosks, and various other applications where a durable and integrated display solution is needed. They are built to withstand harsh conditions, including temperature variations, humidity, and potential physical impacts. Usually Advanvision’s panel mount monitors come with touchscreen functionality. These touchscreen monitors can be used in interactive applications such as kiosks, point-of-sale systems, automation control panels, and more. It also come in various screen sizes and resolutions to accommodate different needs. They range from smaller screens suitable for compact spaces to larger displays for more extensive monitoring and control tasks. Advanvision’s panel mount monitors generally offer a range of connectivity options, including HDMI, DisplayPort, VGA, USB, and sometimes legacy connections like DVI or RS-232. This flexibility ensures compatibility with a wide range of devices and systems. Advanvision offer customization options for panel mount monitors, allowing customers to choose specific features such as touchscreen technology, protective glass, anti-glare coatings, high brightness, IP protection, wide operating temperatures, and rugged construction for use in harsh environments. Panel mount monitors are designed to be beautiful and highly adaptable, making them an ideal solution for OEMs, system integrators who need reliable and flexible display solutions.
FEATURES
1,24inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.
2, It installed flush with the surface of the panel or enclosure, creating a seamless and integrated appearance.
3, Option for resistive or capacitive, IR type touch screen, high sensitive and fast response.
4, Industrial grade AD board, 7x24 continuous operation optional
5, Easy-to-install embedded/panel mounting with clamps.
6, 1000-1500nits sunlight readable optional.
7, Customized black aluminum front bezel, IP65/NEMA 4X front water proof.
8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
9, With VGA, HDMI, DVI input.
10, Phoenix terminal 9-36V wide voltage input optional.
SPECIFICATION
LCD Panel | |
Panel size | 24” |
Native resolution | 1920*1080 |
Aspect ratio | 16:10 |
Active Area(mm) | 518.4(H) x 324.0(V) |
Brightness | 300 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 1000:1 |
Response Time | 6ms |
Viewing angle | 89°/89°/89°/89° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch interface | USB (RS232 optional) |
Touch response time | 2ms |
Working Life | >50 million times |
Touch options | (5 wires restive touch,IR touch optional) |
Signal Ports | |
VGA | 1×VGA |
DVI | 1×DVI |
HDMI | 1×HDMI |
Audio in/out,DP | optional |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
Support OS | Windows XP , Windows /7/8/10 ,Linux, Mac OS X,Android ect. |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working voltage | DC 12V |
Power consumption | ≤40W |
Enclosure | |
Material | High strength cold rolled steel back case |
Color/Dimension | Black, white, Silver , color and dimensions are can be customized |
VESA mounting | 75×75mm/100×100mm |
IP grade | No IP rating |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative humidity | operating: 10% to 80% , storage :5% to 90% |
Packing Details | |
Net weight | 8.5kg(Approx.) |
Gross weight | 12kg(Approx.) |
Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws |
Other | |
Mounting | embedded mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
24 inch panel mount LCD monitor no touch/ADV24PMNT01 | |
24 inch panel mount LCD monitor with tempered glass /ADV24PMTG01 | |
24 inch panel mount LCD monitor with resistive touch/ADV24PMRT01 | |
24 inch panel mount LCD monitor with capacitive touch/ADV24PMCT01 | |
24 inch panel mount LCD monitor with IR touch/ADV24PMIT01 |
