OVERVIEW

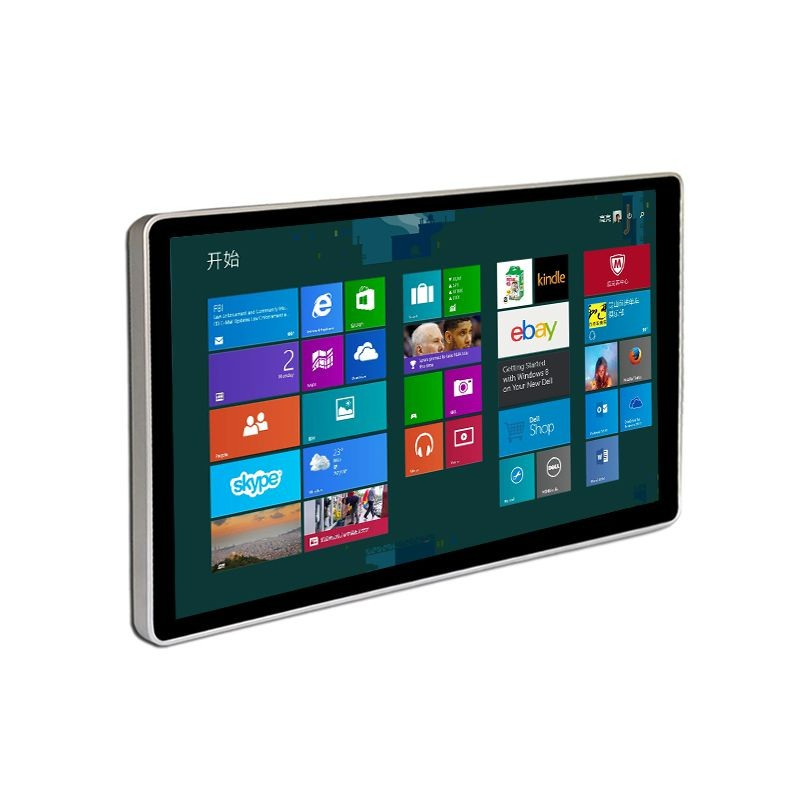

Advanvision’s zero bezel true flat pcap touch panel PCs own a seamless zero-bezel and edge-to-edge glass design with projected capacitive multi touch technology. The zero bezel true flat industrial touch computers featuring a high quality and reliable touch panel with excellent display capabilities give high performance into the smallest package. The highly-sensitive PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers. Fanless and wide temperature ranges allow for seamless application deployment. The zero bezel multi-touch industrial all in one PCs can be directly connected to industrial processing machines, control systems, automation systems, pharmaceutical operator interface, and other harsh computing environments. Those zero bezel capacitive touch industrial panel PCs are designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
FEATURES
1, 32inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.
2, Zero-bezel and edge-to-edge glass design with projected capacitive multi touchscreen.
3, Support 7/24 operation in harsh environments.
4, Front IP65 for protection against water and dust
5, 1000-1500nits sunlight readable LCD optional for outdoor use.
6, Various mounting solutions, Yoke mount and VESA mount, brackets mount
7, Phoenix terminal 9-36V wide voltage input optional.
8, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.
9, WIFI, Bluetooth optional.
10, Support functional module: NFC, RFID, IC card, ID card reader optional.
SPECIFICATION
PC | |
CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
CPU Optional | Intel® Celeron 3825U,J4105 ,Core i3/i5/i7 |
Chipset | Intel NM10 Express |
Memory | 4G DDR3 (2G, 8G optional) |
Hard Drive Capacity | 64G SSD |
Hard Drive Optional | SSD: 32G, 128GB, 256GB |
HDD: 500GB, 1TB | |
Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
Wireless Network | WIFI 4G Optional |
I/O Interface | 2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485) |
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
LCD Panel | |
Panel size | 32” |
Native Resolution | 1920*1080 |
Aspect ratio | 16:9 |
Active Area(mm) | 698.4 (H) x 392.85 (V) |
Brightness | 400 nits |
LED Life Time | ≥50K hours |
Contrast Ratio (Center of screen) | 1200:1 |
Response Time | 5ms |
Viewing Angle | 89°/89°/89°/89° (R/L/U/D) |
Support Color | 16.7M colors |
Touch | |
Touchscreen Type | Project Capacitive Touch (10 points) |
Surface Hardness | 3H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch Response Time | 2ms |
Working Life | >50 million times |
Touch Options | (5 wires restive touch,IR touch optional) |
Power Supply | |
External Power Supply | AC 100 - 240V , 50-60Hz |
Working Voltage | DC 12V |
Power Consumption | ≤130W |
Enclosure | |
Material | High strength cold rolled steel back case |
Color | Black, white, Silver , color can be customized |
VESA Mounting | 75×75mm/100×100mm |
IP Grade | No |
Operating Environment | |
Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
Relative Humidity | 5%~95% @ 40° C, non-condensing |
Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
Packing Details | |
Net Weight | 21.5kg(Approx.) |
Gross Weight | 28.3kg(Approx.) |
Accessories | Power adapter, embedded screws, user manual, warranty card |
Other | |
Mounting | embedded mounting |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, FCC, RoHS |
Order Information | |
32 inch zero bezel panel pc with tempered glass,1900 /ADV32ZBPCTGJ1 | |
32 inch zero bezel panel pc with capacitive touch,J1900/ADV32ZBPCCTJ1 | |
32 inch zero bezel panel pc with tempered glass,i3 /ADV32ZBPCTGI3 | |
32 inch zero bezel panel pc with capacitive touch,i3/ADV32ZBPCCTI3 | |
32 inch zero bezel panel pc with tempered glass,i5/ADV32ZBPCTGI5 | |
32 inch zero bezel panel pc with capacitive touch,i5/ADV32ZBPCCTI5 | |
32 inch zero bezel panel pc with tempered glass,i7/ADV32ZBPCTGI7 | |
32 inch zero bezel panel pc with capacitive touch,i7/ADV32ZBPCCTI7 |
