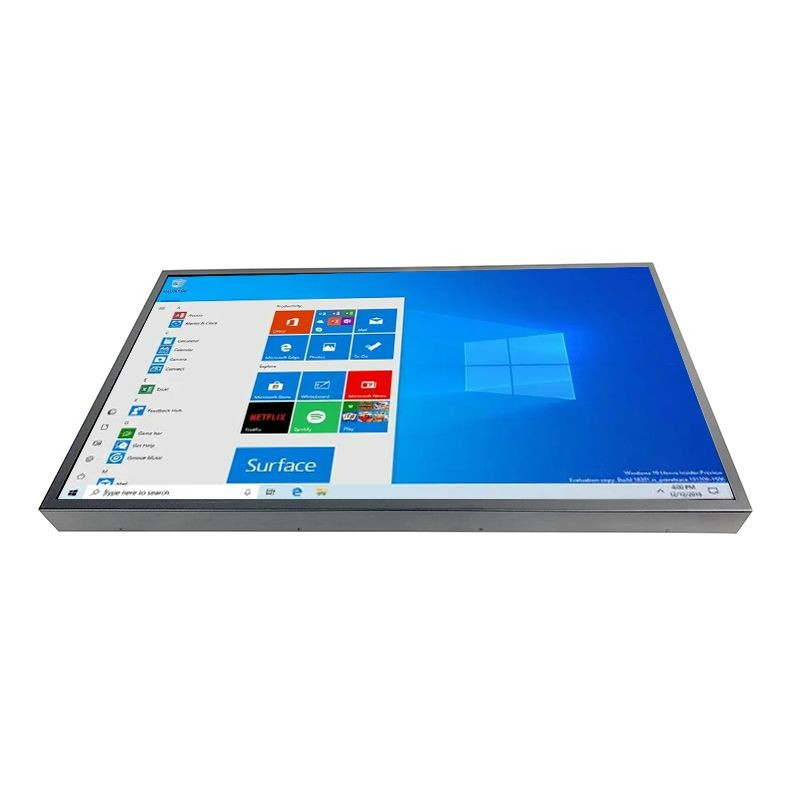

49 inch chassis panel pc

Panel size：49"
CPU：Intel Celeron J1900
RAM：4GB
Hard Drive：64G SSD
Brightness：800nits
Touch Type：Capacitive
IP grade： IP65 front Rating

OVERVIEW

Advanvision industrial chassis panel PCs are cost-effective panel PCs, which have rugged galvanized plate housing, simple and generous. Chassis all in one panel PCs are mountable in various ways, It is most commonly mounted on the machine or wall via the metal VESA mounting bracket, or mounted on the desktop via the desktop mounting bracket. The key features of the chassis touch computers are robustness, reliability and long-term deliverability combined with reasonable prices. The industrial chassis computers own high-quality mechanics which simplifies integration in industrial applications as well as in POI and POS. They are equipped with efficient, fanless industrial mainboards (processor / CPU Intel® Celeron® J1900/J6412 or Core I3/I5/I7 optional). CAN-BUS or 8 digital I/Os are available in addition to the standard USB, RS232, LAN interfaces.

FEATURES

1, 49inch industrial grade LCD panels with 1920*1080 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance motherboard, 7x24 continuous operation.

4, Support wall mounting, embedded mounting, desk stand mounting, VESA mounting etc.

5, 1000-1500nits sunlight readable LCD optional for outdoor use.

6, Customized integrated Rugged Metal Enclosure with customized dimensions with excellent heat dissipation.

7, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

8, Phoenix terminal 9-36V wide voltage input optional.

9, With rich I/O port, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.it also support 3G/4G optional.

10,IP65 front, WIFI, Bluetooth optional.

SPECIFICATION

PC
CPU	Intel® Celeron J1900, quad core, 2.0GHz, fanless
CPU Optional	Intel® Celeron 3825U,J4105 ,Core i3/i5/i7
Chipset	Intel NM10 Express
Memory	4G DDR3 (2G, 8G optional)
Hard Drive Capacity	64G SSD
Hard Drive Optional	SSD: 32G, 128GB, 256GB
Hard Drive Optional	HDD: 500GB, 1TB
Graphics	CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio	Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network	1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network	WIFI 4G Optional
I/O Interface	2xUSB 2.0, 2xUSB 3.0,1xCOM (RS232/422/485)
I/O Interface	1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD Panel
Panel size	49”
Native Resolution	1920*1080
Aspect ratio	16:9
Active Area(mm)	1073.78mm(W)×604mm(H)
Brightness	400 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	1200:1
Response Time	12ms
Viewing Angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤240W
Enclosure
Material	High strength cold rolled steel back case
Color	Black, white, Silver , color can be customized
VESA Mounting	75×75mm/100×100mm
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	65.5kg(Approx.)
Gross Weight	76.3kg(Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Mounting	embedded mounting
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
49 inch chassis panel pc with no touch, J1900/ADV49CPCNTJ1
49 inch chassis panel pc with tempered glass,1900 /ADV49CPCTGJ1
49 inch chassis panel pc with capacitive touch,J1900/ADV49CPCCTJ1
49 inch chassis panel pc with IR touch,J1900/ADV49CPCITJ1
49 inch chassis panel pc with no touch, i3/ADV49CPCNT01I3
49 inch chassis panel pc with tempered glass,i3 /ADV49CPCTGI3
49 inch chassis panel pc with capacitive touch,i3/ADV49CPCCTI3
49 inch chassis panel pc with IR touch,i3/ADV49CPCITI3
49 inch chassis panel pc with no touch, i5/ADV49CPCNTI5
49 inch chassis panel pc with tempered glass,i5/ADV49CPCTGI5
49 inch chassis panel pc with capacitive touch,i5/ADV49CPCCTI5
49 inch chassis panel pc with IR touch,i5/ADV49CPCITI5
49 inch chassis panel pc with no touch, i7/ADV49CPCNTI7
49 inch chassis panel pc with tempered glass,i7/ADV49CPCTGI7
49 inch chassis panel pc with capacitive touch,i7/ADV49CPCCTI7
49 inch chassis panel pc with IR touch,i7/ADV49CPCITI7
