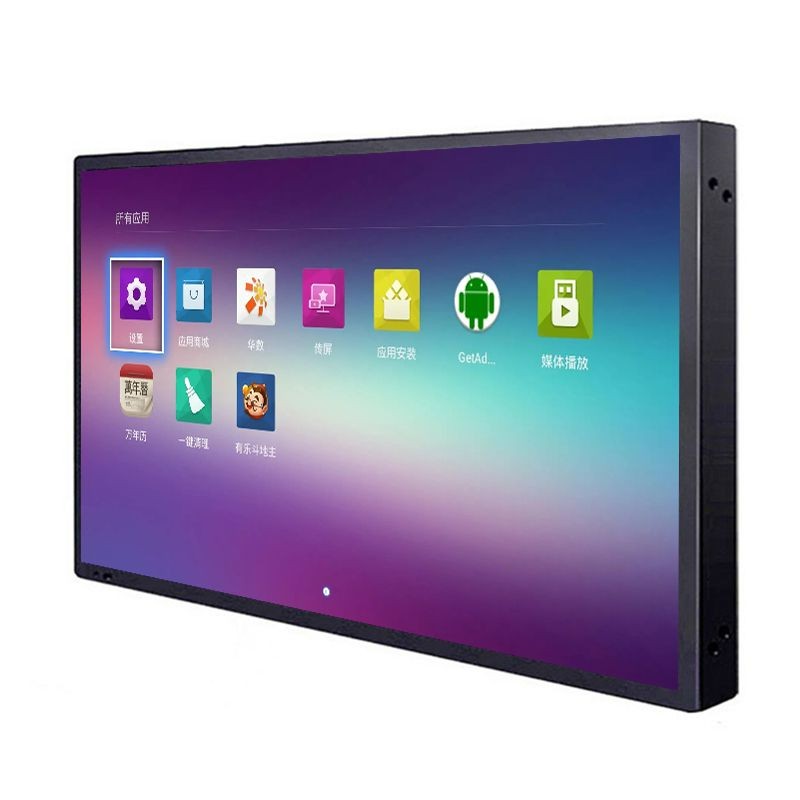

75 inch android touch panel pc

CPU：ARM Quad Core RK3288 Cortex-A17
RAM：2GB
Hard Drive：8GB
Panel size：75"
Brightness：500nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision industrial Fanless android Panel PCs is available in screen sizes from 6.5" up to 75". These industrial android computers run on Rackchip RK series, with RK3288, RK3568, RK3399 optional. Those android industrial panel PCs can operate Linux or Android. These operating systems are perfect for web based applications and can be easily integrated into industrial manufacturing applications. Android touch panel PCs provides a cost effective alternative to traditional Windows based panel PCs. Advanvision fanless android touch panel PCs has rugged metal enclosures and with IP65 front, flat bezel design, zero bezel design optional. They allow for durability and reliability in any environment. The android all in one touch computers solution are perfect for applications such as automated industry, building automation, smart city, and IoT cloud based solutions.

FEATURES

1, Support android 5.1, 6.0, 7.1, 9.0, 10.0,11 and Linux, Ubuntu, which are ideal platforms for running your own applications or customizing the OS for your needs.

2, With onboard DDR3 2GB-8G ram memory and 8G-64G onboard flash rom optional.

3, 75" industrial grade LCD panel with 1920*1080 resolution and 1000nits high brightness optional, and available with 10point PCAP touch or resistive touch.

4, Simple and smart design with rugged metal enclosure, which have fanless cooling systems and durability in high shock and vibration settings.

5, Customized multiple I/O port to meet customers requirement, can be with SIM card slot, and support 3G/4G optional, 2 RJ45/ 3 COM RS232/RS422/RS485 optional.

6, Provide SDK, support secondary development.

7, High performance industrial android motherboard, 7x24 continuous operation.

8, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

9, Phoenix terminal 9-36V wide voltage input optional.

SPECIFICATION

PC
CPU		ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz
CPU Optional		RK3399, RK3368 Optional
GPU		Mali-T764 GPU
SDRAM		2G (4G, 8G optional)
Flash		8G: 16G/32G/64G/128G Optional
Bluetooth		Optional
Video Decoder		4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
Media Format		Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc
Music Format		Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC
Network Support		Ethernet,Wifi/bluetooth 4.0,wireless peripherals,etc
I/O Interface		1 × HDMI; 2 × USB Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); Com Port optional
Operation System		Android 6.0/7.1/8.0
LCD Panel
	Panel size	75”
	Native resolution	1920 x 1080 or 3840*2160
	Aspect ratio	16:9
	Active Area(mm)	1649.66(H)x927.936(V)
	Brightness	410 nits
	LED Life Time	≥50K hours
	Contrast Ratio (Center of screen)	1200:1
	Response Time	8ms
	Viewing angle	89°/89°/89°/89° (R/L/U/D)
	Support Color	16.7M colors
Touch
Touchscreen Type		Project Capacitive Touch (10 points)
Surface Hardness		3H
Luminousness		90%
Touch Interface		USB (RS232 optional)
Touch Response Time		2ms
Working Life		>50 million times
Touch Options		(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply		AC 100 - 240V , 50-60Hz
Working Voltage		DC 12V
Power Consumption		≤370W
Enclosure
Material		High strength cold rolled steel back case
Color		Black, white, Silver , color can be customized
VESA Mounting		75×75mm/100×100mm
IP Grade		No
Operating Environment
Temperature Range		operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity		5%~95% @ 40° C, non-condensing
Vibration		5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight		124kg(Approx.)
Gross Weight		135.8kg(Approx.)
Accessories		Power adapter, embedded screws, user manual, warranty card
Other
Mounting		Vesa mounting
		wall mounting brackets (optional)
		desk stand holder (optional)
Warranty		1 year warranty
Certificates		CE, FCC, RoHS
Order Information
75 inch chassis android panel pc with no touch, RK3288/ADV75CAPCNTRK1
75 inch chassis android panel pc with tempered glass, RK3288/ADV75CAPCTGRK1
75 inch chassis android panel pc with resistive touch, RK3288/ADV75CAPCRTRK1
75 inch chassis android panel pc with capacitive touch, RK3288/ADV75CAPCCTRK1
75 inch chassis android panel pc with no touch,RK3399/ADV75CAPCNTRK2
75 inch chassis android panel pc with tempered glass,RK3399/ADV75CAPCTGRK2
75 inch chassis android panel pc with resistive touch,RK3399/ADV75CAPCRTRK2
75 inch chassis android panel pc with capacitive touch, RK3399/ADV75CAPCCTRK2
